Dispensing Peristaltic Pump EDPP-B10
Specifications
| Country of Origin | UK |
|---|---|
| Power Consumption | Less than 60 W |
| Relative Humidity | Less than 80 % |
| Brand | Generic Brand |
| Power Supply | AC 220 V ±10 % / 50 Hz / 60 Hz |
| Model | LDPP-B10 |
| Weight | 5.2 Kg |
| Ambient Temperature (ºC) | 0 ~ 40 °C |
| Type of Product | Peristaltic Pump |
| Speed Range | 0.1 ~ 600 rpm |
| Flow range | 0.006 ~ 2900 mL/min |
| IP grade | IP 31 |
| Flow Accuracy | 0.2 % |
| No Of Channel | 2 |
| Dimensions (L × W × H) | 226 × 150 × 238 mm |
| Speed Resolution | 0.1 rpm |
Key Features
- Operational modes : Volume Dispense, Time Dispense, Copy Dispense and Flow Mode
- LCD display for monitoring parameters
- Anti-drip function ensuring dispense accuracy
- Speed resolution : 0.1 rpm
- Adjustable rotating speed
- Intelligent temperature control minimizing working noise
- Reversible operation allowing pumping in both directions
- Multi channels with interchangeable pump heads for varied applications
- Easy liquid auto dispension by time or volume
- Internal double layer isolation
- Dust and moisture proof circuit board
- Optional remote infrared control
- Robust and protected with ABS plastic housing
- Low noise operation
Product Description

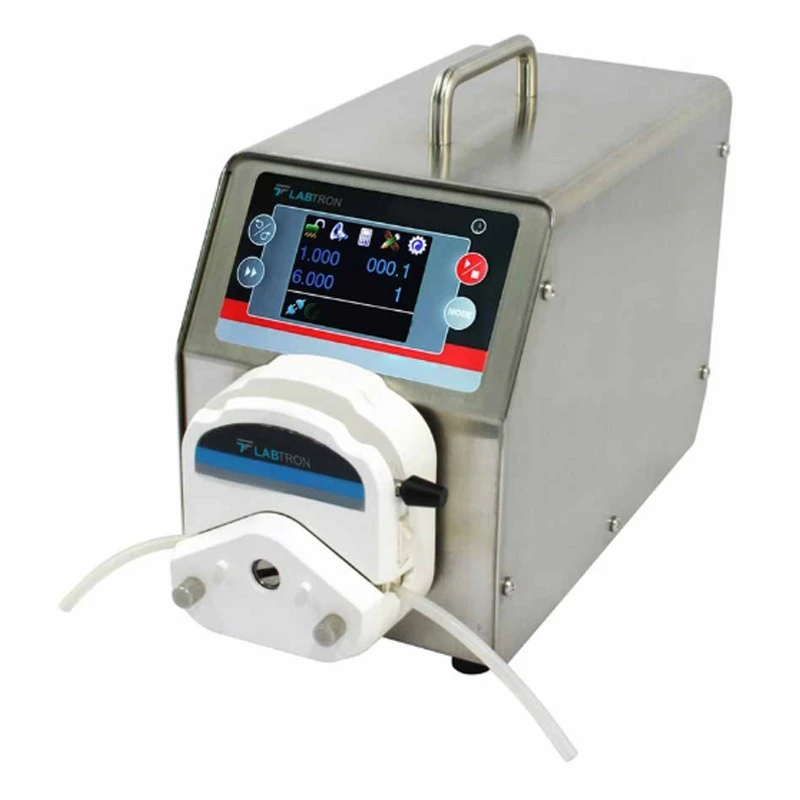

Dispensing Peristaltic Pump LDPP-B10 is a dual-channeled pump equipped with a touch screen controller for real-time monitoring and speed adjustments. It includes advanced features such as flow rate calibration and an anti-drip function. Four operational modes ensure ease of use, and the easy dispense mode allows dispensing the recorded volume with a single touch using the DISPENSE key. An intelligent cooling fan control minimizes work noise, improving performance in sensitive environments.
Pump Head and Tubing Selection:
- LDPP-B10 A: 0.006 – 1700 mL/min per channel, 1 channel, Tubing Wall: 0.8 ~ 1 mm
- LDPP-B10 B: 0.16 – 1700 mL/min per channel, 1 channel, Tubing Wall: 0.8 ~ 1 mm
- LDPP-B10 C: 0.006 – 1700 mL/min per channel, 2 channels, Tubing Wall: 0.8 ~ 1 mm
- LDPP-B10 D: 0.16 – 1700 mL/min per channel, 2 channels, Tubing Wall: 0.8 ~ 1 mm
- LDPP-B10 E: 0.006 – 2300 mL/min per channel, 1 channel, Tubing Wall: 0.8 ~ 1 mm
- LDPP-B10 F: 0.16 – 2900 mL/min per channel, 1 channel, Tubing Wall: 0.8 ~ 1 mm
- LDPP-B10 G: 0.006 – 2300 mL/min per channel, 2 channels, Tubing Wall: 0.8 ~ 1 mm
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The flow rate range of this model is from 0.006 mL/min to 2900 mL/min per channel, depending on the pump head used.
The pump operates within a speed range of 0.1 to 600 rpm, with a speed resolution of 0.1 rpm.
The power supply requirement for this model is AC 220 V ±10 % at 50 Hz or 60 Hz.
The maximum ambient temperature for operating this model is 40 °C.
This unit weighs 5.2 kg.
The dimensions of this model are 226 mm in length, 150 mm in width, and 238 mm in height.
The flow accuracy of the EDPP-B10 is 0.2%.
The pump is designed to operate in environments with relative humidity of less than 80%.
It features a robust housing made from ABS plastic, providing protection against dust and moisture.
The IP grade of this model is IP 31, indicating protection against dust and limited water ingress.
