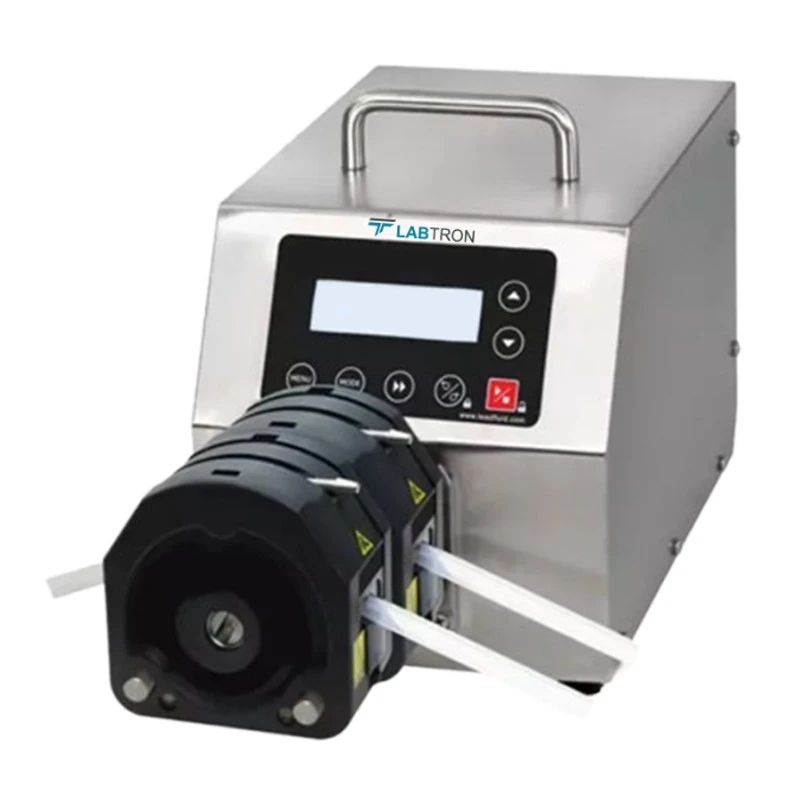

Variable Speed Peristaltic Pump EVSP-B13
Specifications
| Country of Origin | UK |
|---|---|
| Power Consumption | Less than 150 W |
| Relative Humidity | Less than 80 % |
| Brand | Generic Brand |
| Power Supply | AC 180 to 264V 50Hz/60Hz (Standard) / AC 90 to 132V 50Hz/60Hz (Optional) |
| Dimension | 318 × 185 × 230 mm |
| Model | LVSP-B13 |
| Temperature | 0 to 40 °C |
| Weight | 5.9 Kg |
| Type of Product | Peristaltic Pump |
| Speed Range | 0.1 to 600 rpm |
| Communication Interface | RS485 / MODBUS protocol is available |
| Flow range | 0.005 to 6600 mL/min |
| Speed Accuracy | Less than ±0.5% |
| IP grade | IP 31 |
| External Control | External control analog 0 to 5V / 0 to 10V / 4 to 20mA | start/stop | input — 5V /12V /24V |
| Speed Resolution | 0.1 rpm (speed ≤ 100 rpm) / 1 rpm (speed Greater than 100 rpm) |
Key Features
- LCD-OS Software System
- LCD
- Power-down-Memory
- Key Lock Function
- Internal double-deck isolation structure
- Supports output of working status signals
Product Description
The Variable Speed Peristaltic Pump LVSP-B13 offers a flow range of 0.005 to 6600 mL/min. It features a high-torque brushless servo motor for precise, stable speed control and accurate flow. The pump includes adjustable parameters for running time, interval time, and cycle count. Its stainless steel 304 shell provides excellent corrosion resistance and easy cleaning. Our Variable Speed Peristaltic Pump supports thermal printer connection for parameter printing and allows auto-switching between voltage and current speed signals.
Applications:
Variable Speed Peristaltic Pumps handle fluids in medical, lab, food, water, industrial, and cosmetic industries.
Pump Head and Tubing Selection:
- LVSP-B13 A: 1 channel, 0.005 to 2562 mL/min, Tubes: 13, 14, 19, 16, 25, 17, 18
- LVSP-B13 B: 2 channels, 0.005 to 2562 mL/min, Tubes: 13, 14, 19, 16, 25, 17, 18
- LVSP-B13 C: 4 channels, 0.005 to 2562 mL/min, Tubes: 13, 14, 19, 16, 25, 17, 18
- LVSP-B13 D: 1 channel, 0.024 to 3000 mL/min, Tubes: 114, 116, 15, 24, 35, 36
- LVSP-B13 E: 2 channels, 0.024 to 3000 mL/min, Tubes: 114, 116, 15, 24, 35, 36
- LVSP-B13 F: 4 channels, 0.024 to 3000 mL/min, Tubes: 114, 116, 15, 24, 35, 36
- LVSP-B13 G: 2 channels, 0.067 to 2240 mL/min, Tubes: 19, 16, 25, 17
- LVSP-B13 H: 4 channels, 0.067 to 2240 mL/min, Tubes: 19, 16, 25, 17
- LVSP-B13 I: 1 channel, 0.31 to 6600 mL/min, Tubes: 15, 24, 35, 36
- LVSP-B13 J: 2 channels, 0.31 to 6600 mL/min, Tubes: 15, 24, 35, 36
- LVSP-B13 K: 1 channel, 0.31 to 6600 mL/min, Tubes: 15, 24, 35, 36
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The flow range of this model is from 0.005 to 6600 mL/min.
It has a speed range of 0.1 to 600 rpm with a speed accuracy of less than ±0.5%.
This model supports an AC power supply of 180 to 264V at 50Hz/60Hz as standard, and optionally 90 to 132V at 50Hz/60Hz.
The dimensions of the pump are 318 × 185 × 230 mm, and it weighs 5.9 kg.
External control can be achieved using analog signals of 0 to 5V, 0 to 10V, or 4 to 20mA, along with start/stop inputs of 5V, 12V, or 24V.
The operating temperature range for the LVSP-B13 is from 0 to 40 °C.
The relative humidity tolerance for this model is less than 80%.
This model supports the MODBUS protocol for communication.
The power consumption of this model is less than 150 W.
The IP grade of the LVSP-B13 is IP 31, indicating protection against solid objects larger than 2.5 mm and against vertically falling water drops.
This pump is suitable for handling fluids in medical, laboratory, food, water, industrial, and cosmetic industries.
