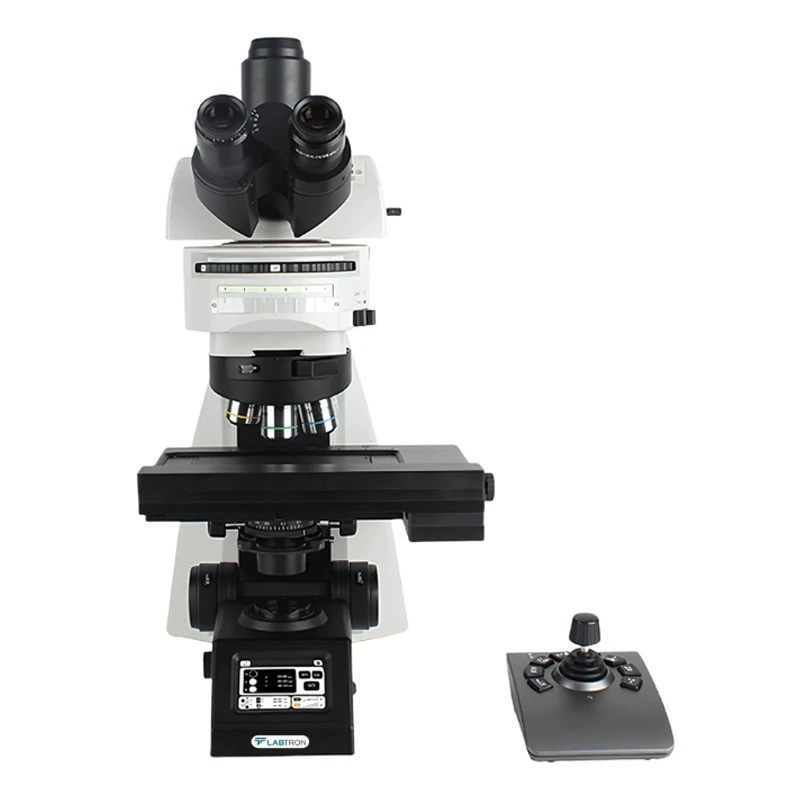

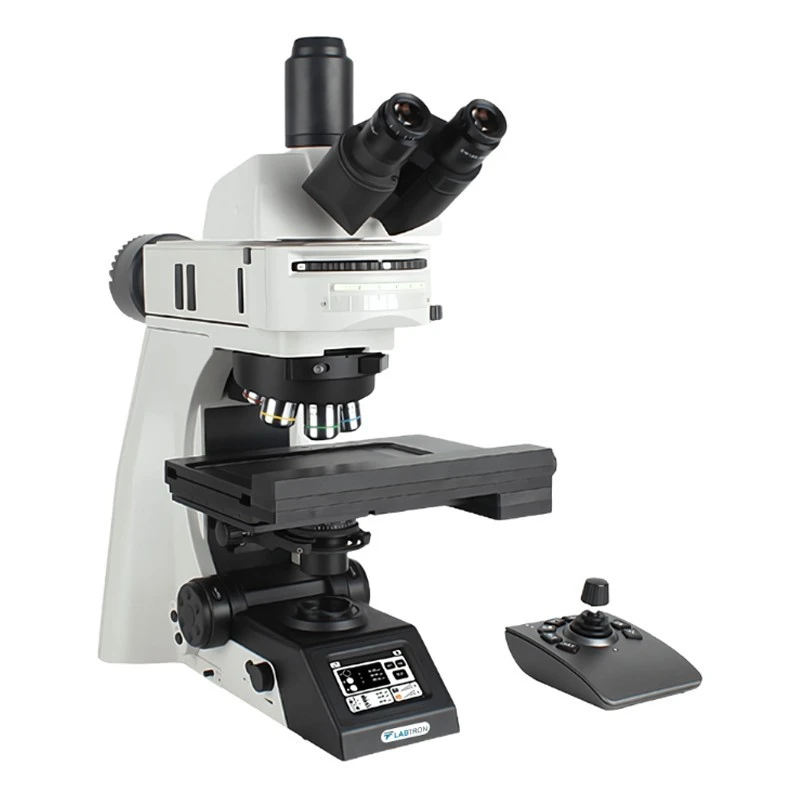

Upright Metallurgical Microscope EMM-B31
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Generic Brand |
| Model | LMM-B31 |
| Optical System | NIS45 Infinite Color Corrected Optical System (Tube length — 180mm) |
| Type of Product | Microscope |
| Condenser | LWD condenser N.A. 0.65 |
| Focusing | Low-hand Motorized auto focusing mechanism / independent operation of left and right-hand wheels / three-speed adjustment / focusing range 30mm / repeat positioning accuracy — 0.1μm / motorized escape and recovery mechanism |
| Eyepiece | Super wide field plan eyepiece SW10X/25mm / diopter adjustable |

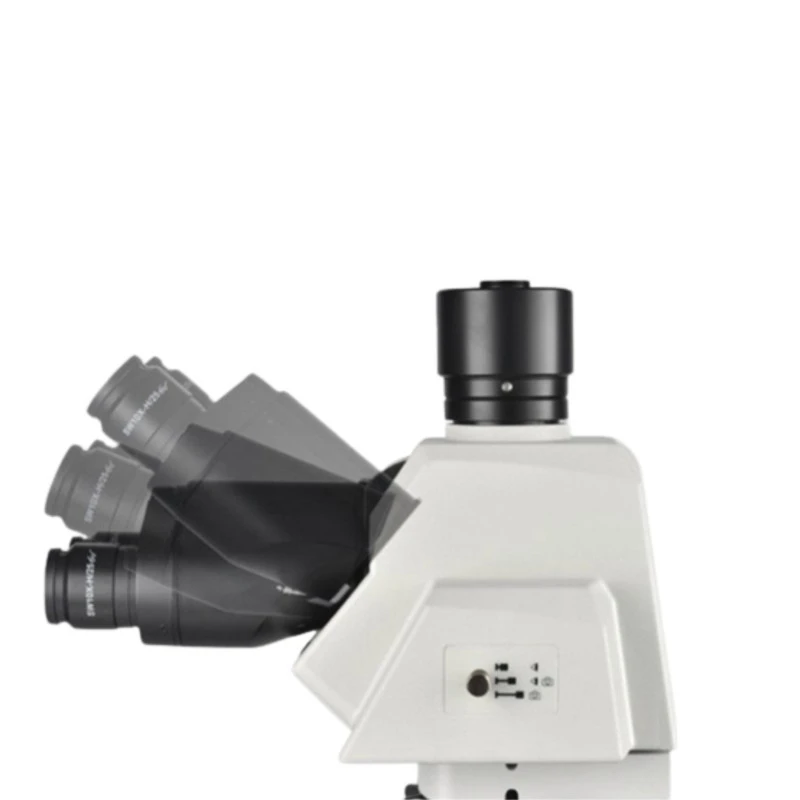

| Viewing Head | Seidentopf Trinocular Head / 30° inclined / interpupillary distance — 47mm–78mm | splitting ratio Eyepiece — Trinocular equal to 100 — 0 or 20 — 80 or 0 — 100 |

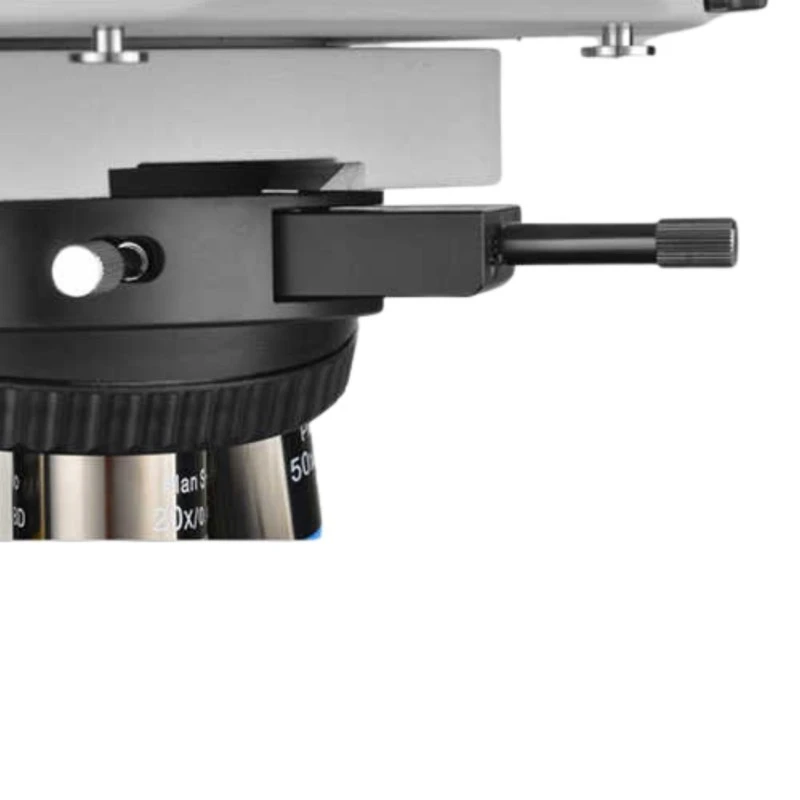

| Nosepiece | Backward Motorized Sextuple Nosepiece (with DIC slot) |
| Magnification Range | 50x to 1000x |
| Stage Movement | X-axis — 125mm / Y-axis — 75mm / accuracy ±1.5μm / speed up to 20mm/s |
| Transmitted Illumination | 12V/100W halogen lamp / Kohler illumination / with ND6/ND25 filter |
| Reflected Illumination | Reflected light 24V/100W halogen lamp / Koehler illumination / with 6-position turret | Built-in ND6 / ND25 filter and color correction filter |
| Max. Specimen Height | 56mm |
| Stage Size | 275 × 239 × 44.5mm |
| Motorized Control | Nosepiece control panel with buttons. Two most used objectives can be pre-set and switched. Auto light intensity adjustment after objective change |
Key Features
- Motorized X-Y stage control
- Auto-focusing mechanism
- Joystick navigation system
- High 50x to 1000x magnification
- Trinocular head with camera port
- Infinite optical system
- Powered objective switching
- Adjustable interpupillary distance
Product Description
Upright Metallurgical Microscope LMM-B31 features a Seidentopf trinocular head, 30° inclined, with a beam-splitting ratio. It includes a motorized sextuple nosepiece, enabling preset objectives for smooth magnification transitions. The reflected illumination system integrates a 12V to 100W halogen lamp with Koehler illumination. Built-in ND6, ND25, and color correction filters enhance contrast for precise metallurgical sample analysis. Perfect for metal manufacturing, research labs, automotive, and aerospace industries for microstructure analysis.
Applications:
Our Upright Metallurgical Microscope LMM-B31 is designed for semiconductor inspections, metallographic research, and surface defect analysis. Its advanced optical system ensures high-contrast imaging for material science and failure analysis applications.
Standard Accessories:
- Dust Cover
- Power Cord
Objective:NIS45 Infinite LWD Plan Semi-APO Objective (BF & DF) — 5X/NA equal to 0.15 / WD equal to 20mm | 10X/NA equal to 0.3 / WD equal to 11mm | 20X/NA equal to 0.45 / WD equal to 3.0mm | 50X/NA equal to 0.8 / WD equal to 1.0mm | 100X/NA equal to 0.9 / WD equal to 1.0mm
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The magnification range of this model is from 50x to 1000x, allowing for detailed observation of samples.
It features an NIS45 Infinite Color Corrected Optical System with a tube length of 180mm, enhancing imaging quality.
This unit has a low-hand motorized auto focusing mechanism with independent operation for left and right-hand wheels, offering a focusing range of 30mm and a repeat positioning accuracy of 0.1μm.
The stage size is 275 × 239 × 44.5mm, providing ample space for specimen placement.
It uses a 12V/100W halogen lamp for transmitted illumination and a 24V/100W halogen lamp for reflected illumination, both with Koehler illumination systems.
The maximum specimen height that this model can accommodate is 56mm.
The microscope features a backward motorized sextuple nosepiece that can be controlled via a panel with buttons, allowing preset objectives for easy switching.
It includes a super wide field plan eyepiece with a magnification of SW10X and a diameter of 25mm, which is diopter adjustable.
Yes, this model is equipped with a joystick navigation system for ease of use during operation.
Standard accessories include a dust cover and a power cord, ensuring the microscope is ready for use upon delivery.
The stage movement accuracy is ±1.5μm, with the X-axis capable of 125mm movement and the Y-axis 75mm.
It is suitable for various applications including semiconductor inspections, metallographic research, and surface defect analysis, making it ideal for metal manufacturing, research labs, automotive, and aerospace industries.
