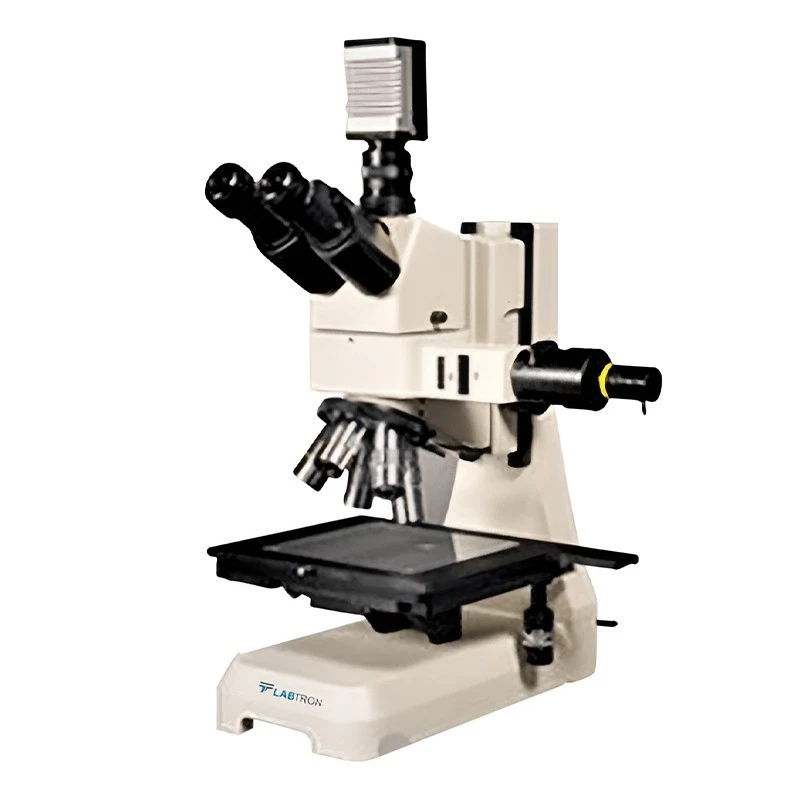

Labtron Metallurgical Microscope LMM-C10 image-1

Free Delivery in India | Lowest Global Shipping Charges

Metallurgical Microscope EMM-C10

Name: Metallurgical Microscope EMM-C10
Brand: Generic Brand
SKU: ADGHL
Price: 69.5 USD
Availability: InStock



SKU ADGHL Category Microscopes Brand Generic Brand Condition New

Specifications

Country of Origin	UK
Brand	Generic Brand
Dimension	540×580×530 mm
Model	LMM-C10
Optical System	Infinity Optical System F equal to 200 mm
Weight	39.1 kg
Optional	Material Plus Software
Type of Product	Microscope
Filter	Green / Blue / Neutral
Illumination	Reflected halogen 12V 50W / Adjustable / with aperture and field iris diaphragm
Focusing	Coaxial coarse and fine with rack and pinion / coarse range 40 mm / fine scale value 0.002 mm
Eyepiece	WF10X/25 mm
Viewing Head	Seidentopf trinocular head / inclined at 30° / Interpupillary 55–75 mm
Nosepiece	Quintuple / objective screw M26×0.706
Polarizing	Analyzer rotatable 360° / polarizer and analyzer can be moved out/in
Stage	Double layers stage 230×280 mm / moving range — 150×150 mm

Key Features

Infinity Optical system
Adopts M Plan APO HL objective (visible)
M Plan APO HL objective (NIR and NUV) is optional
Long working distance objective
Quintuple nosepiece
Green, blue, neutral filter
Movable polarizer and analyser
Positive and Negative imaging is customisable
Options like automatic focusing, motorised stage and auto nosepiece are available
Software can also be provided

Product Description

Metallurgical Microscope LMM-C10 is specifically designed for industrial purposes. It features superior quality Infinity M Plan APO HL objectives (visible) with long working distance, double-layer stage, trinocular head, rotatable analyzer, blue and green filters, quintuple nosepiece, and more, making it highly efficient and reliable. It has wide applications in the metal industry, mineral industry, and electrical industry.

Applications:

It is used to inspect semiconductor chips, integrated circuits, and the structures of metals and alloys.

Objective:M Plan APO HL Objective 2X/0.055 WD equal to 34.56 mm / Focus Length 95mm / M Plan APO HL Objective 5X/0.14 WD equal to 44.50 mm / Focus Length 95mm / M Plan APO HL Objective 10X/0.28 WD equal to 34.00 mm / Focus Length 95mm / M Plan APO HL Objective 20X/0.29 WD equal to 31.00 mm / Focus Length 95mm / M Plan APO HL Objective 50X/0.42 WD equal to 20.50 mm / Focus Length 95mm

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The dimensions of this model are 540×580×530 mm.

It weighs 39.1 kg.

It features an Infinity Optical System with a focal length of 200 mm.

The working distances for the objectives are as follows: 2X/0.055 is 34.56 mm, 5X/0.14 is 44.50 mm, 10X/0.28 is 34.00 mm, 20X/0.29 is 31.00 mm, and 50X/0.42 is 20.50 mm.

It uses reflected halogen illumination rated at 12V 50W, which is adjustable and includes an aperture and field iris diaphragm.

The microscope has a double-layer stage measuring 230×280 mm, with a moving range of 150×150 mm.

Yes, the analyzer is rotatable 360°, and both the polarizer and analyzer can be moved in and out.

It is equipped with a WF10X/25 mm eyepiece.

It is designed for inspecting semiconductor chips, integrated circuits, and the structures of metals and alloys.

Optional features include material plus software, automatic focusing, motorized stage, and auto nosepiece.

The country of origin is the UK.
