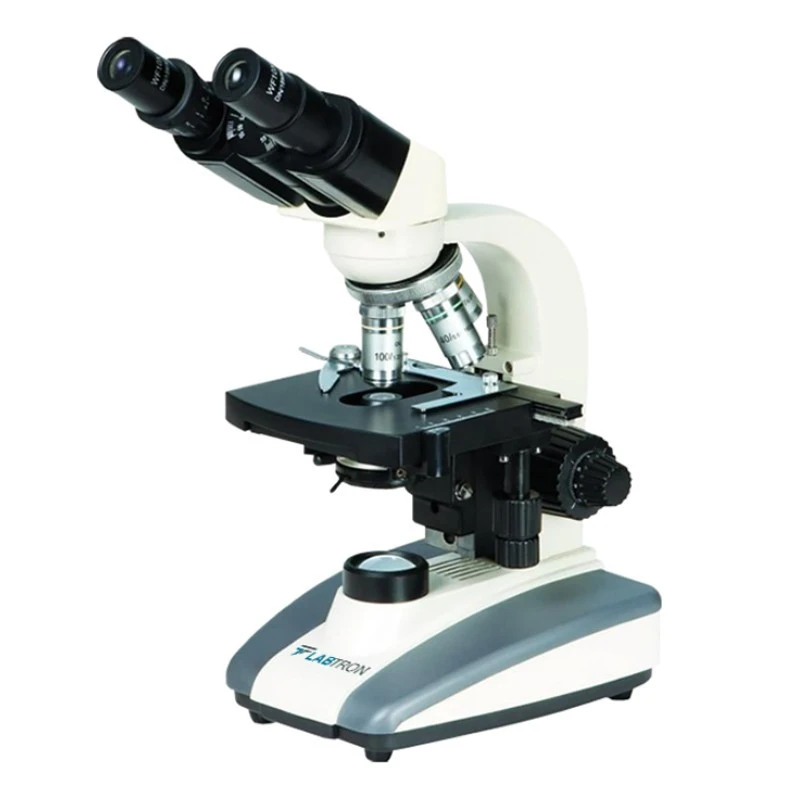

Labtron Biological Microscope LBM-F21 image-1

Free Delivery in India | Lowest Global Shipping Charges

Biological Microscope EBM-F21

Name: Biological Microscope EBM-F21
Brand: Generic Brand
SKU: ADGED
Price: 69.5 USD
Availability: InStock



SKU ADGED Category Microscopes Brand Generic Brand Condition New

Specifications

Country of Origin	UK
Brand	Generic Brand
Model	LBM-F21
Optical System	Finite Optical System
Gross Weight	7 kg
Type of Product	Microscope
Condenser	Abbe N.A.1.25 condenser with iris diaphragm and filter
Illumination	Halogen Bulb 6 V/20 W / AC 220 V/110 V
Focusing	Coaxial Coarse and Fine Focusing / Scale Value 0.002 mm / Focusing Range — 30 mm
Eyepiece	Widefield WF 10X/18 mm
Objective	4 achromatic objectives — 4X / 10X / 40X (Spring) / 100X (Spring / Oil)
Viewing Head	Compensation Free binocular Head / 30° inclined / 360° swiveling / interpupillary 55 to 75 mm
Nosepiece	Quadruple revolving nosepiece
Magnification Range	40X to 1000X
Stage	Double Layer Mechanical Stage / 135×135 mm
Packaging Dimension (W×D×H)	325×215×460 mm
Stage Movement	70×30 mm

Key Features

A finite optical system microscope with WF10X/18 mm widefield eyepiece
30° inclined, 360° swiveling, compensation free binocular head
4 achromatic objectives: 4X, 10X, 40X (Spring), 100X (Spring, Oil)
Magnification range of 40X to 1000X, high magnification range
Quadruple revolving nosepiece, easy and systematic interchange of objective lenses
Coaxial coarse and fine focusing with Rack and Pinion mechanism, 30 mm focusing range
Abbe N.A.1.25 condenser with iris diaphragm and filter, better observation
Halogen lamp as illumination source, long life-span
Double layer mechanical stage, ensures smooth and gentle movement
High-efficient and stable unit for cells, tissues, and other biological specimen observation

Product Description

Biological Microscope LBM-F21 is a finite optical system-based microscope with a 30° inclined, 360° swiveling, compensation-free binocular head. Equipped with WF10X/18 mm widefield eyepiece and 4 achromatic objectives, it offers a magnification range of 40X to 1000X. With a quadruple revolving nosepiece and coaxial coarse and fine focusing using a Rack and Pinion mechanism, it provides a 30 mm focusing range. Designed with an Abbe N.A.1.25 condenser with iris diaphragm and filter, the microscope includes halogen lamp illumination for a double-layer mechanical stage.

Applications:

Biological microscopes are used to study organisms, cells, pond life samples, and other microscopic life forms across cell research, forensic medicine, colleges, universities, and state-of-the-art high-resolution molecular studies.

Optional Accessories:

Eyepiece: WF16X, WF20X
Achromatic Objectives: 20X, 60X (S)
LED Illumination

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

It utilizes a finite optical system, which is designed to provide clear and precise imaging for biological studies.

The microscope is equipped with four achromatic objectives: 4X, 10X, 40X (Spring), and 100X (Spring, Oil).

It features a halogen bulb for illumination, specifically rated at 6 V/20 W, suitable for both AC 220 V and 110 V power sources.

The double layer mechanical stage measures 135×135 mm and allows for smooth movement of specimens during examination.

The gross weight of this model is 7 kg, making it manageable for laboratory use.

It features a compensation-free binocular head that is 30° inclined and can swivel 360°, enhancing user comfort and flexibility during use.

The packaging dimensions are 325×215×460 mm, which is important for shipping and storage considerations.

The Abbe N.A.1.25 condenser, equipped with an iris diaphragm and filter, is designed to improve observation quality by focusing light onto the specimen.

Optional accessories include eyepieces with WF16X and WF20X magnification, as well as additional achromatic objectives of 20X and 60X (S).

It is suitable for studying organisms, cells, and other microscopic life forms, making it ideal for cell research, forensic medicine, and educational purposes.
