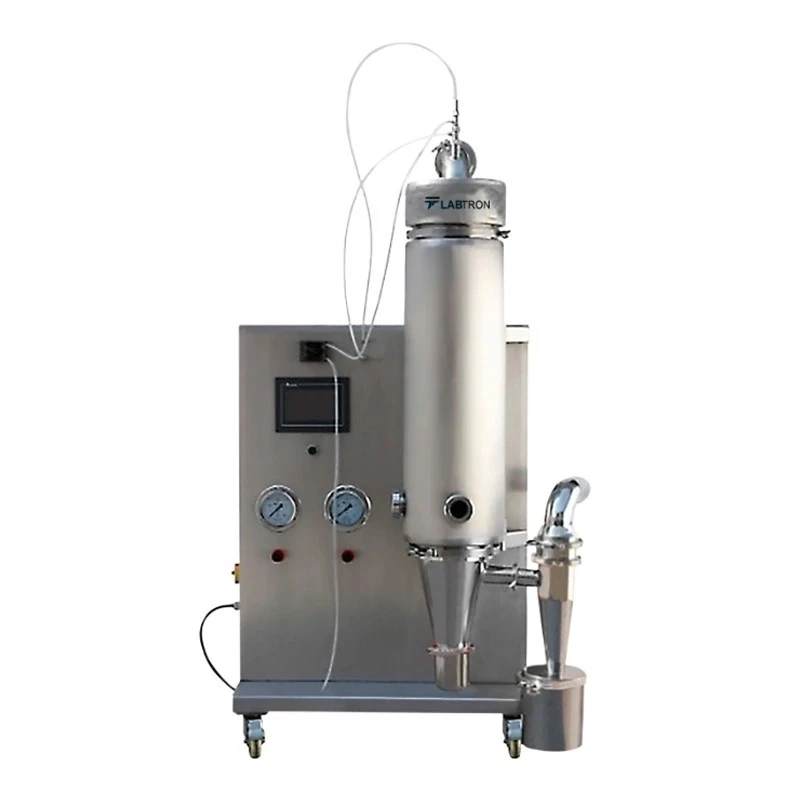

Lab Spray Dryer ELSD-A11
Specifications
| Country of Origin | UK |
|---|---|
| Power Consumption | 5500W |
| Brand | Generic Brand |
| Power Supply | 220V | single-phase 50/60 Hz |
| Net Weight | 180 Kg +15Kg |
| Body Material | SUS-304 Stainless steel |
| Model | LLSD-A11 |
| Gross Weight | 291 Kg |
| Heater Power | 5000W |
| Type of Product | Laboratory Spray Dryer |
| Rated Airflow | 2m³/min |
| Minimum Sample Volume | 100 ml |
| Maximum Inlet Temperature | 280 ℃ |
| Compressed Air | 32L/min / 0.5 to 2 bars |
| Packaging Dimension | 1160 × 1120 × 2000mm |
| Net Dimension | 1050 × 1000 × 1770mm |
| Nozzle Jet | 1.5mm standard/ (0.5/0.8/1.0/2.0mm available) |
| Nozzle Type | Two fluid nozzles |
| Possible Particle Size Range | 1 to 80 µm |
| Mean Residence Time | 1.0 to 1.5 sec |
| Maximum Sample Feed | 3000 ml/hr |
Key Features
- Equipped with a built-in air compressor
- SUS 304 Stainless steel body
- Automatic/manual operation mode
- Optional Inert loop for organic solvents
- 7-Inch LCD
- Automatic Deblocking
Product Description
Lab Spray Dryer LLSD-A11 offers a feedstock of 3000 ml/h and requires only 100 ml of sample supply. It comes equipped with dual-fluid nozzles for precise, fine sprays. By integrating an inert loop system, it can be converted into an organic solvent spray dryer. The dryer body is made from SUS-304 stainless steel for durability and hygiene in harsh environments. Our lab spray dryer is suitable for spray drying sugary materials and prevents wall sticking.
Applications:
Lab Spray Dryers are used in various industries, including chemical, food, new energy, medicine, ceramics, and textiles, which may require extremely consistent, fine particle size.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum sample feed rate for the Lab Spray Dryer ELSD-A11 is 3000 ml/hr.
This model requires a minimum sample volume of 100 ml for operation.
The maximum inlet temperature for this spray dryer is 280 ℃.
The power consumption of this unit is 5500W.
It uses dual-fluid nozzles for precise, fine sprays, with a standard nozzle jet size of 1.5mm.
The rated airflow for the Lab Spray Dryer ELSD-A11 is 2 m³/min.
The body of this model is made from SUS-304 stainless steel, ensuring durability and hygiene.
The net dimensions of the Lab Spray Dryer ELSD-A11 are 1050 × 1000 × 1770 mm.
The mean residence time for this spray dryer is between 1.0 to 1.5 seconds.
It is suitable for use in various industries including chemical, food, new energy, medicine, ceramics, and textiles.
The gross weight of this model is 291 Kg.
