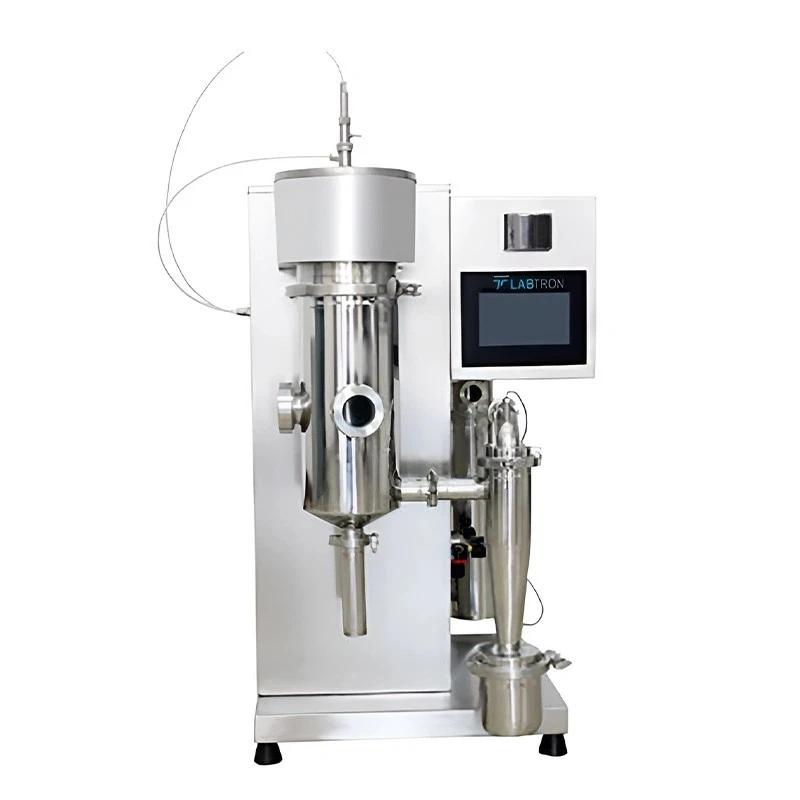

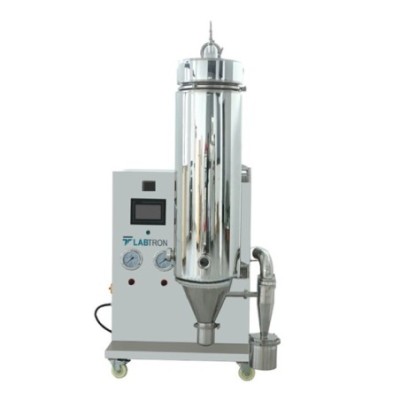

Bench Top Spray Dryer EBSD-A10
Specifications
| Country of Origin | UK |
|---|---|
| Display | 7-inch LCD |
| Capacity | 500 ml/min |
| Brand | Generic Brand |
| Power Supply | 220V / 50-60 Hz |
| Power | 2000 W |
| Net Weight | 83 kg |
| Body Material | SUS304 Stainless steel |
| Dimensions | 800 × 600 × 900 mm |
| Operation Mode | Automatic/Manual |
| Model | LBSD-A10 |
| Gross Weight | 141 kg |
| Gas Type | Compressed air (for aqueous) |
| Heater Power | 1500 W |
| Type of Product | Laboratory Spray Dryer |
| Rated Airflow | 1 m³/min |
| Minimum Sample Volume | 30 ml |
| Temperature precision | ±1°C |
| Max. Inlet Temperature | 20°C |
| Packaging Dimensions | 1000 × 810 × 144 mm |
| Min. Outlet Temperature | 80°C |
| Nozzle Jet | 1.0mm standard (0.5/1.8/2.0mm available) |
| Nozzle Type | Two fluid nozzle |
| Controls Include | Fluid Temperature / Gas Flow Volume / De-Humidifier Frequency |
| Possible Particle Size Range | 1-2 µm |
| Mean Residence Time | 1.85±5 s |
| Max. Sample Feed | 500 ml/h |
| Material Feeding Method | Peristaltic pump |
| Seal of Cyclone/Cylinder | Silicone |
Key Features
- Optional Inert loop for organic solvents
- The blower runs until temp <90°C for thermal protection
- Automatic deblocking available
- Suitable for use on a laboratory table
- Tabletop, easy to operate and install
Product Description
Bench Top Spray Dryer LBSD-A10 accommodates a maximum processing capacity of 500 mL/h. Our dryer requires only 30ml of sample for the operation. It is a small-size unit that offers convenient operation with an inert loop system. Designed for both aqueous solutions and organic solvents. Equipped with a bag filter for tail gas dedusting. Its exhaust air management improves yield, especially for difficult-to-recycle materials.
Applications:
Bench Top Spray Dryer is employed in various applications, including the processing of beverages, pharmaceuticals, plant extracts, and ceramics. It is also effective for handling heat-sensitive materials, polymers, detergents, and numerous other substances.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum processing capacity of this model is 500 mL/h.
This unit requires a minimum sample volume of 30 mL for operation.
It operates on a power supply of 220V / 50-60 Hz.
The temperature precision of the LBSD-A10 is ±1°C.
The dimensions of this model are 800 × 600 × 900 mm.
This model uses a two fluid nozzle with a standard jet size of 1.0 mm, and other sizes of 0.5 mm, 1.8 mm, and 2.0 mm are available.
The net weight of this unit is 83 kg.
The maximum inlet temperature for the LBSD-A10 is 20°C.
The rated airflow for this model is 1 m³/min.
Material is fed into this spray dryer using a peristaltic pump.
The mean residence time for materials in the LBSD-A10 is 1.85±5 seconds.
