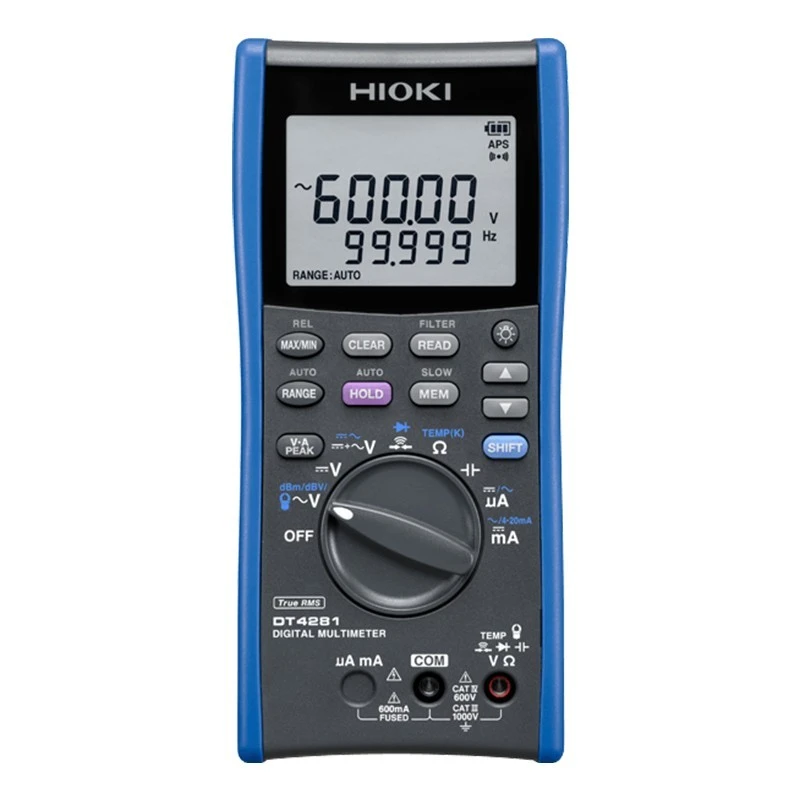

Hioki Digital Multimeter DT4281
Specifications
| Country of Origin | Japan |
|---|---|
| Display | 5-digit LCD / 60000 counts |
| Frequency | 99.999 Hz - 500.00 kHz / ±0.005% rdg. ±3 dgt. |
| Diode Test | ≤4.5 V open voltage / ≤1.2 mA test current / Threshold - 0.15 V - 3 V |
| Brand | HIOKI |
| Power Supply | 4× AA batteries / 100 hours continuous use |
| Dimensions | 93 × 197 × 53 mm |
| Model | DT4281 |
| Temperature | K - -40.0 °C to 800.0 °C / ±0.5% rdg. ±3 °C |
| Accessories | Test Lead L9207-10 / Manual / 4× AA batteries |
| Weight | 650 g (with test leads holder and batteries) |
| AC Voltage (V) | 60.000 mV - 1000.0 V / 20 Hz - 100 kHz / ±0.2% rdg. ±25 dgt. (True RMS) |
| AC Current | 600.00 μA - 600.00 mA / 20 Hz - 20 kHz / ±0.6% rdg. ±5 dgt. (True RMS) |
| Functions | Auto hold / MAX/MIN / PEAK / relative display / internal memory (400 data) / USB (optional) / auto-power save / 4-20 mA percentage conversion |
| Resistance | 60.000 Ω - 600.0 MΩ / ±0.03% rdg. ±2 dgt. |
| DC Voltage (V) | 60.000 mV - 1000.0 V / ±0.025% rdg. ±2 dgt. |
| Capacitance | 1.000 nF - 100.0 mF / ±1.0% rdg. ±5 dgt. |
| DC Current | 600.00 μA - 600.00 mA / ±0.05% rdg. ±5 dgt. |
| Continuity | Threshold - 20/50/100/500 Ω / Response time ≥10 ms |
| Peak Measurement | DC V - ≥4 ms / AC V & A - ≥1 ms (single) / ≥250 μs (repeated) |
| DC + AC Voltage (V) | 6.0000 V - 1000.0 V / ±0.3% rdg. ±30 dgt. |
| Clamp AC Current | 10.00 A - 1000 A / ±0.6% rdg. ±2 dgt. |
| dB Conversion | 4 Ω - 1200 Ω / 20 stages / dBV display |
Key Features
- 60000 count, 5-digit display, high-resolution measurements
- ±0.025% DC V basic accuracy, wide 20 Hz to 100 kHz AC V frequency characteristics
- Low-pass filter cuts high harmonics (when measuring inverter fundamental waveforms)
- Measures large currents with optional clamp probe (only for DT4281, which has no 10 A terminal for accident prevention)
- Terminal shutter mechanism (prevents erroneous test lead insertion)
- Dual display lets you check voltage and frequency simultaneously
Product Description
The Hioki DT4200 Digital Multimeter Series consists of a complete lineup of 9 models ranging from professional to industrial to pocket meters. The DT4281 is our top-of-the-line high-precision 60000 count digital multimeter with all of the functions and features required for advanced testing in complex power and electrical applications.
Available on EnvMart, these Multimeters are designed for accurate measurement of voltage, current, and resistance in electrical circuits. Hioki Multimeters offer high precision and reliability, making them essential for electrical testing, diagnostics, and maintenance applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The basic accuracy for DC voltage measurements is ±0.025% of reading ±2 digits.
It can measure AC voltage in the range of 20 Hz to 100 kHz.
This model can measure DC voltage, AC voltage, DC current, AC current, resistance, capacitance, and temperature.
The maximum AC voltage measurement is 1000.0 V.
The weight of this model is 650 grams, including the test leads holder and batteries.
It operates on 4 AA batteries, providing up to 100 hours of continuous use.
Yes, it features a dual display that allows simultaneous checking of voltage and frequency.
It can measure temperatures from -40.0 °C to 800.0 °C.
Included accessories are a test lead (L9207-10), a manual, and 4 AA batteries.
The capacitance measurement range is from 1.000 nF to 100.0 mF with a resolution of ±1.0% of reading ±5 digits.
The dimensions of this model are 93 mm in width, 197 mm in height, and 53 mm in depth.
It can measure AC currents up to 600.00 mA within the frequency range of 20 Hz to 20 kHz.
