Hioki Digital Multimeter DT4223
Specifications
| Country of Origin | Japan |
|---|---|
| DC Voltage Range | 600.0 mV to 600.0 V / 4 ranges / ±0.5 % rdg. ±5 dgt. accuracy |
| AC Voltage Range | 6.000 V to 600.0 V / 3 ranges / 40 Hz - 1 kHz / ±1.0 % rdg. ±3 dgt. (True RMS / crest factor 3) |
| Resistance Range | 600.0 Ω to 60.00 MΩ / 6 ranges / ±0.9 % rdg. ±5 dgt. accuracy |
| Display | Main & Sub LCD (4 digits / max. 6000) / bar graph |
| Frequency range | AC V measurement - 99.99 Hz (≥5 Hz) to 9.999 kHz / 3 ranges / ±0.1 % rdg. ±2 dgt. accuracy |
| Brand | HIOKI |
| Power Supply | 1× LR03 alkaline battery / 35h use (backlight OFF) |
| Dimensions | 72 × 149 × 38 mm |
| Model | DT4223 |
| Accessories | Test lead DT4911 ×1 / Holster ×1 / Instruction manual ×1 / LR03 battery ×1 |
| Weight | 190 g (including battery and holster) |
| Voltage detection | 80 V to 600 V AC |
| Other functions | Circuit-breaker false trip prevention / filter function / display hold / relative value display / auto-power save |
| Continuity Check | ON - ≤25 Ω (buzzer sound) / OFF - ≥245 Ω / Response time - ≥0.5 ms |
| Refresh Rate | 5 times/s (Capacitance - 0.05-5 times/s / Frequency - 1-2 times/s) |
Key Features
- High safety in a compact and lightweight design.
- Circuit breaker false trip prevention.
- Resistance measurement and voltage detection (DT4223).
- 1 m drop-resistant design.

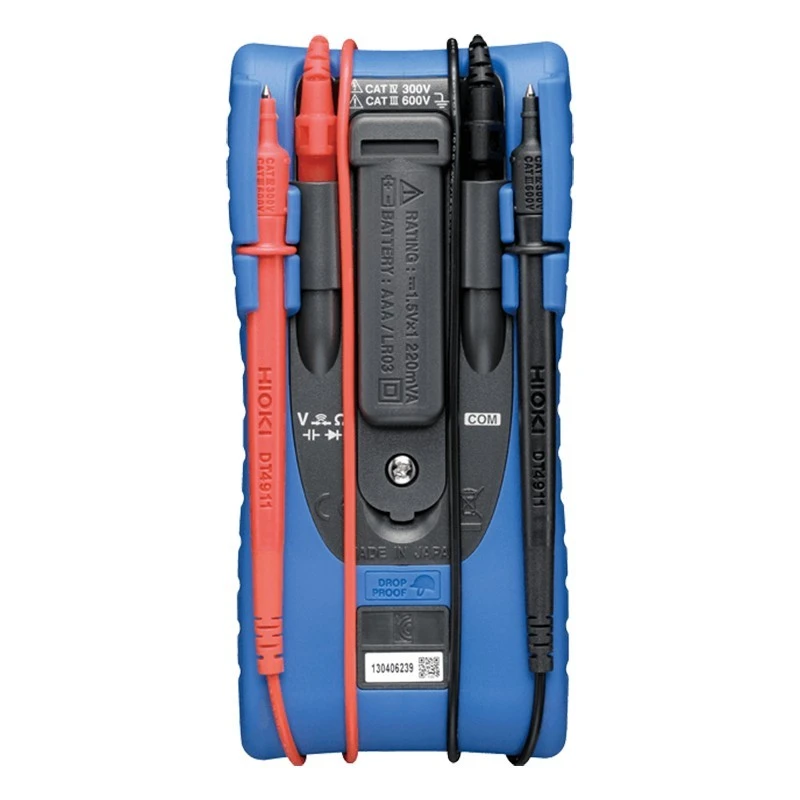

- Rear test lead storage.
- ±0.5% DC V basic accuracy, 40 Hz to 1 kHz AC V frequency range.
- Low-pass filter for inverter fundamental waveform measurement.
- Wide operating temperature range (-10°C to 65°C).
- Display backlight.
Product Description
The Hioki DT4200 Digital Multimeter Series consists of a diverse array of meters ranging from professional to industrial to pocket meters, delivering a super-fast response rate and safety features that enhance electrical testing. The Hioki DT4223 is a pocket-sized digital multimeter featuring an innovative circuit-breaker false trip prevention function to enhance testing safety and a built-in voltage detector, ideal for electrical inspections.
Available on EnvMart, these Multimeters are designed for accurate measurement of voltage, current, and resistance in electrical circuits. Hioki Multimeters offer high precision and reliability, making them essential for electrical testing, diagnostics, and maintenance applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The DC voltage measurement range is from 600.0 mV to 600.0 V across 4 ranges, with an accuracy of ±0.5 % reading ±5 digits.
The AC voltage measurement range is from 6.000 V to 600.0 V, covering 3 ranges with a frequency range of 40 Hz to 1 kHz and an accuracy of ±1.0 % reading ±3 digits (True RMS).
The resistance measurement range is from 600.0 Ω to 60.00 MΩ across 6 ranges, with an accuracy of ±0.9 % reading ±5 digits.
The maximum frequency range for AC voltage measurements is from 99.99 Hz (≥5 Hz) to 9.999 kHz, with an accuracy of ±0.1 % reading ±2 digits.
Included accessories are one test lead (DT4911), one holster, one instruction manual, and one LR03 battery.
The weight of this model is 190 g, including the battery and holster.
It uses one LR03 alkaline battery, providing approximately 35 hours of use when the backlight is turned off.
This model features a circuit-breaker false trip prevention function, enhancing safety during electrical testing.
The operating temperature range is from -10°C to 65°C.
The continuity check function operates with a buzzer sound for resistance values of ≤25 Ω, and it responds in less than 0.5 ms.
The refresh rate for measurements is 5 times per second, with specific rates for capacitance and frequency measurements being 0.05-5 times per second and 1-2 times per second, respectively.
It features a main and sub LCD display with 4 digits and a maximum reading of 6000, along with a bar graph for visual representation.
