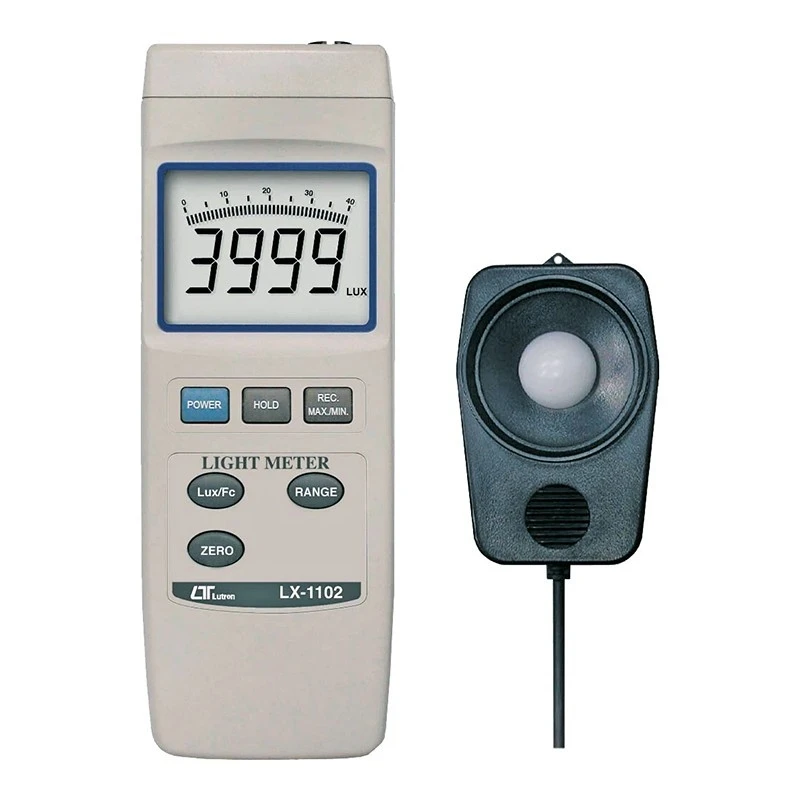

Lutron LX-1102 Luxmeter
Specifications
| Operating Humidity | Max. 80% RH |
|---|---|
| Power Consumption | Approx. DC 8 mA |
| Display | Large LCD with bargraph / 52 x 38 mm / 4 digits |
| Brand | LUTRON |
| Power Supply | DC 9V battery |
| Type | Light Meter |
| Operating Temperature | 0 to 50 ℃ (32 to 122 ℉) |
| Memory | Saves max. & min. values with recall |
| Model | LX-1102 |
| Sensor Type | Exclusive photo diode & color correction filter / meets C.I.E. photopic / cosine corrected |
| Weight | 220 g |
| Optional Accessories | RS-232 cable (UPCB-02) / USB cable (USB-01) / application software (SW-U801-WIN) / hard carrying case (CA-06) / soft carrying case (CA-05A) |
| Data output | RS-232 serial data output |
| Resolution (Lux) | 0.01 Lux to 100 Lux |
| Data hold | Freezes display value |
| Zero Adjustment | Push button (40.00 Lux range only) |
| Peak Hold | Holds peak display |
| Power off | Auto or manual |
| Accessories Included | Instruction manual / light sensor with protection cover |
| Dimensions (Main Instrument) | 200 x 68 x 30 mm |
| Dimensions (Sensor Probe) | 82 x 55 x 7 mm |
| Measurement Ranges (LUX) | 40.00 / 400.0 / 4 /000 / 40 /000 / 400 /000 Lux |
| Measurement Ranges (Feet-candle) | Corresponding ranges in Foot-candle |
| Resolution (Feet-candle) | 0.01 Ft-cd to 10 Ft-cd |
| Over/Under Range Indication | Over - "- - - -" / Under - "_ _ _ _" |
Key Features
- 5 measurement ranges (40.00/400.0/4,000/40,000/400,000 Lux)
- LUX/Foot-candle unit selection
- Separate light sensor
- RS-232 computer serial data output
- Data hold and memory functions
Product Description
The Lutron LX-1102 is a light meter with 5 measurement ranges and RS-232 computer serial data output. It features a separate light sensor, LUX/Foot-candle unit selection, and data hold and memory functions.
Available on EnvMart, these Lux Meters are designed with high-sensitivity sensors to provide accurate measurement of light intensity in various environments. Lutron Lux Meters are trusted for their precision, reliability, and ease of use, making them ideal for laboratories, workplaces, and environmental monitoring.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Lutron LX-1102 Luxmeter has five measurement ranges: 40.00 Lux, 400.0 Lux, 4,000 Lux, 40,000 Lux, and 400,000 Lux.
The resolution of the Luxmeter is 0.01 Lux to 100 Lux and 0.01 Ft-cd to 10 Ft-cd.
It uses an exclusive photo diode with a color correction filter that meets C.I.E. photopic standards and is cosine corrected.
The LX-1102 requires a DC 9V battery for power supply.
The dimensions of the main instrument are 200 x 68 x 30 mm, while the sensor probe measures 82 x 55 x 7 mm.
The operating temperature range is 0 to 50 ℃ (32 to 122 ℉) and the maximum operating humidity is 80% RH.
Yes, it features RS-232 serial data output for connecting to a computer.
It saves maximum and minimum values with recall and includes a data hold function to freeze the display value.
Optional accessories include an RS-232 cable (UPCB-02), USB cable (USB-01), application software (SW-U801-WIN), hard carrying case (CA-06), and soft carrying case (CA-05A).
The weight of the Lutron LX-1102 is 220 g.
The peak hold function allows the meter to hold the peak display value for easy reading.
Included accessories are an instruction manual and a light sensor with a protection cover.
