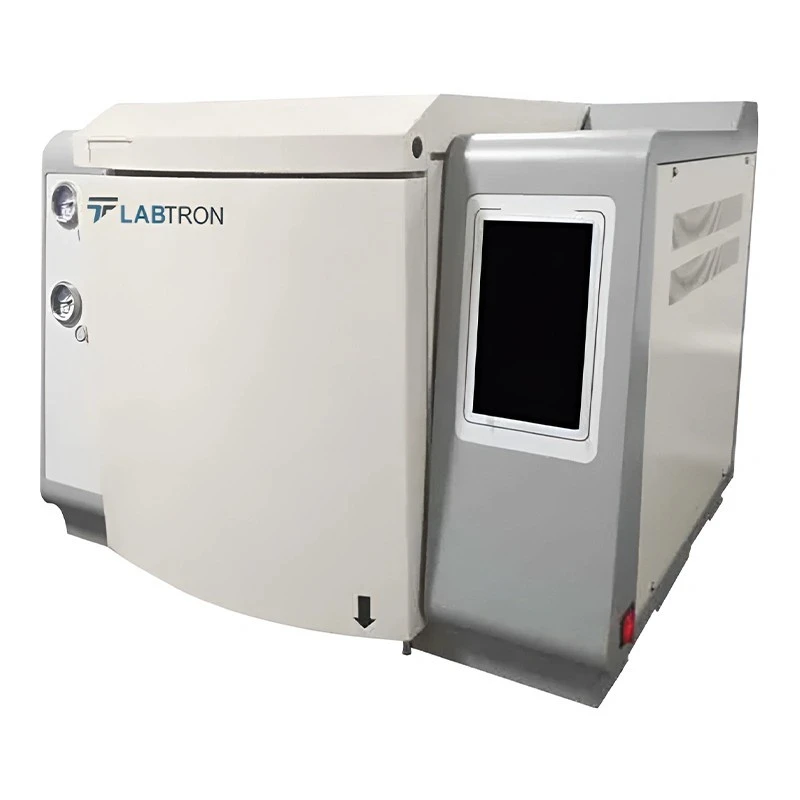

Gas Chromatography LGC-B12 is a compact tabletop Flame Ionization Detector (FID)-based gas chromatograph, offering a temperature range from RT to 450°C with a maximum heating rate of 40°C/min. It supports up to three detectors installed simultaneously, including optional TCD, ECD, FPD, and NPD detectors. It allows packed column and capillary column installation at the same time. The large oven capacity holds two capillary columns of 0.32 mm diameter. Equipped with thermal insulation, chromatography workstation software, and a 5.7-inch LCD display, it supports self-test, power protection, keyboard lock, automatic ignition, and anti-power mutation interference functions. The double column compensation function and internet connectivity enhance usability. This GC system supports 16-phase temperature programming, effectively restraining baseline drift and reducing background noise interference.

Applications:

Used for the separation of compounds in complex mixtures based on polarity across industries such as food, pharmaceuticals, dairy, microbiology, biotechnology, and environmental analysis.

Standard Accessories:

• FID detector × 1
• chromatography workstation software × 1

Optional Accessories:

• Hydrogen generator × 1
• air generator × 1
• Thermal Conductivity Detector (TCD) (Sensitivity: >10000 mv.ml/mg, Sample: n-hexadecane, Linear range: ≥10⁵) × 1
• Electron Capture Detector (ECD) (Detection limit: ≤1×10⁻¹⁴ g/ml, Sample: n-hexadecane δ-666, Linear range: ≥10³) × 1
• Flame Photometric Detector (FPD) (Detection limit: ≤2×10⁻¹¹g/s (S of thiophene), ≤1×10⁻¹²g/s (P of methyl parathion), Linear range (S): ≥10², Linear range (P): ≥10³) × 1
• Nitrogen and Phosphorus Detector (NPD) (Detection limit: ≤1×10⁻¹²g/s (Azobenzene), ≤1×10⁻¹²g/s (Marla sulfur phosphorous), Linear range: ≥10³) × 1
