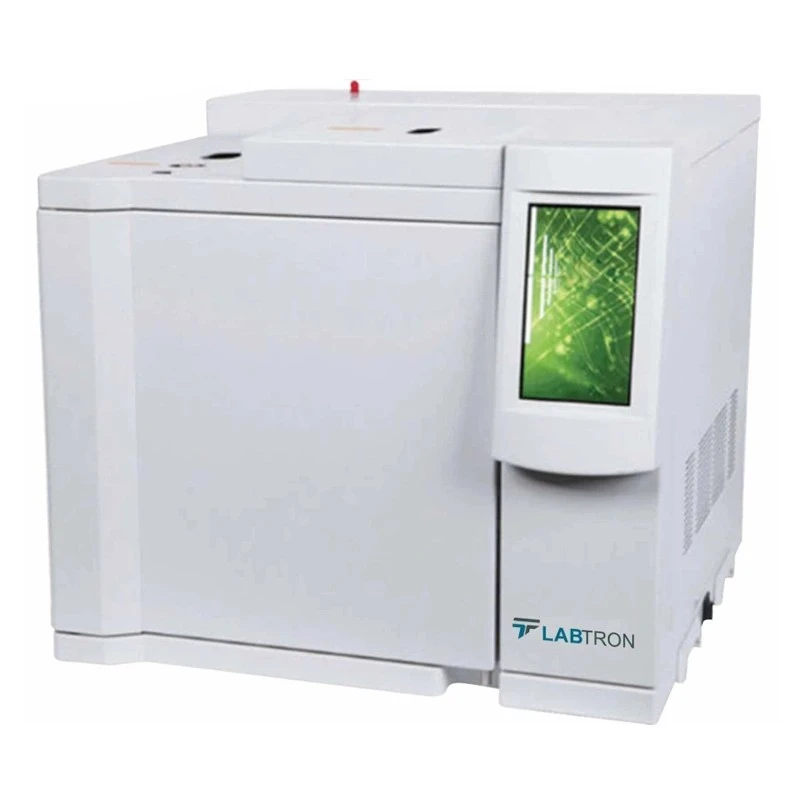

Labtron LGC-B11 Gas Chromatography
Specifications
| Brand | Labtron |
|---|---|
| Model | LGC-B11 |
| Detector Type | FID or TCD |
| Oven Temperature Range | RT + 5 °C to 400 °C |
| Oven Temperature accuracy | ± 0.1 °C |
| Oven Temperature program | 9 Step |
| Oven Program total time | 9999.9 min |
| Oven Maximum Heating Rate | 0.1 to 60 °C/min |
| Oven Maximum Cooling Rate | ≤ 10 mins (250 to 50 °C) |
| Sample Injector Temperature range | RT + 7 °C to 420 °C |
| Sample Injector Temperature control | Independent |
| Sample Injector Injector type | Column or split |
| Sample Injector Maximum sample inlet | 3 pcs |
| Sample Injector Carrier gas flow type | Constant pressure |
| Sample Injector Pressure range | 0 to 400 kPa |
| Sample Injector Pressure accuracy | 0.1 kPa |
| Sample Injector Mobile phase flow range | H2 - 0 to 200 ml/min / N2 - 0 to 150 ml/min |
| Detector Temperature range | RT + 7 °C to 420 °C |
| Detector Maximum installation | Dual detector |
| Detector Flame ignition mode | Automatic |
| FID Logarithmic amplifier | Yes |
| FID High voltage switch control | Yes |
| FID Baseline signal display | Yes |
| FID Ignition coil control | Yes |
| FID Detection limit | ≤ 3 × 10⁻¹² g/s (Sample - n-hexadecane) |
| FID Baseline noise | ≤ 5 × 10⁻¹⁴ A |
| FID Baseline draft | ≤ 6 × 10⁻¹³ |
| FID Dynamic range | 10⁷ |
| FID RSD | ≤ 3 % |
| TCD Sensitivity | 8000mV.ml/mg (Sample - n-hexadecane) |
| TCD Baseline noise | ≤ 0.5mV |
| TCD Baseline draft | ≤ 0.15 mV/30 min |
| General Power supply | AC 220 V ± 22 V / 50 Hz ± 0.5 Hz / 3000 W |
| General Packing dimension | 1020 × 660 × 740 mm |
| General Gross Weight | 82 kg |
| General Net Weight | 70 kg |
| Oven Maximum Capacity | 22 L |
Key Features
- 7-inch LCD display specifies temperature, gas flow, and heating curve
- H2 and N2 mobile gas phase with AFC and constant pressure gas flow type
- Equipped with capillary analysis system and capillary split sampler
- Injection system incorporates diaphragm cleaning, split flow, and auxiliary gas adjustment
- Standard unit for high-speed analysis with polar capillary column
- PEG-20M and FFAP stationary phase polar capillary columns can be coupled
- Dual FID detector with automatic flame ignition and baseline signal display
- Self-diagnostic and automatic fault recognition function
- Multi-core and 32-bit embedded hardware system ensures reliable operation
- Equipped with chromatography workstation software to process data
- Memory function can store 20 sample test data
- RS232 interface and LAN port
Product Description
Gas Chromatography LGC-B11 is a benchtop unit with advanced flow controller (AFC) technology. The system features digital control mode and polar capillary columns to separate polar analytes. The GC oven is capable of 9 temperature program ramps and hold steps and offers rapid cooling from 250°C to 50°C in less than 10 minutes. Accurate flow rate control via AFC ensures higher repeatability of retention time and peak area, enabling specific levels of analysis using dual FID detectors.
Applications:
Suitable for the analysis of trace toxic compounds, monitoring, and research in environmental protection, atmosphere, and water source pollution. It is widely used in petrochemistry, environmental protection, epidemic prevention, pharmacology, and scientific research.
Standard Accessories:
- FID detector system × 1
- capillary injection system × 1
- chromatography workstation software × 1
Optional Accessories:
- Polar capillary columns PEG-20M (Stationary phase: 30 m × 0.32 mm, Injector temperature: 250°C, Oven temperature: 165°C, Detector: FID-250°C, Inlet pressure: 0.04 MPa) × 1
- polar capillary columns FFAP (Stationary phase: 30 m × 0.32 mm, Injector temperature: 250°C, Oven temperature: 165°C, Detector: FID-250°C, Inlet pressure: 0.04 MPa) × 1
- syringe 1 μL × 1
- syringe 5 μL × 1
