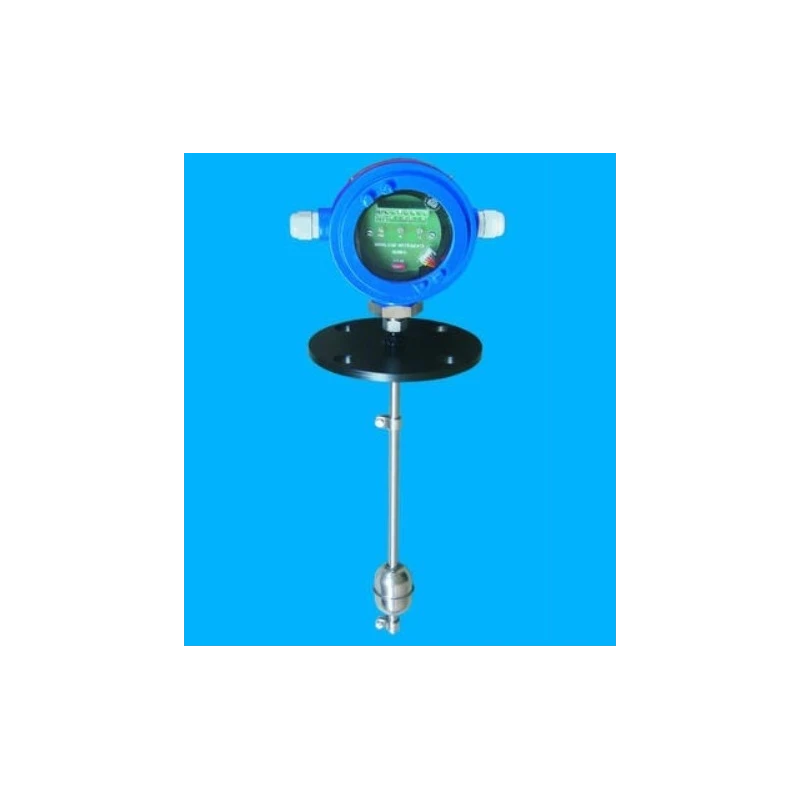

Metal Relay Output Level Switch VMT-16-F120-FLP-230-1R-HOC
Specifications
| Output | Cast Aluminum Flame proof (relay unit fitted in enclosure) |
|---|---|
| Brand | Mahalaxmi Instruments |
| Power Supply | 230 VAC |
| Material | Metal |
| Working Pressure | 10 Kg/cm2 |
| MOC | Flange in MS|float-pipe & stoppers in SS316 SS 316 0r SS 304 |
| Model | VMT-16-F120-FLP-230-1R |
| Enclosure | Cast Aluminum Flame proof (relay unit fitted in enclosure) |
| Input | Float Switch Contacts |
| Media Type | Liquid |
| Switch Type | Relay output (Potential Free) |
| Cable gland | 3/4 ET |
| Process connection | 2ASA 150 LBS |
| Mounting option | Top Mount |
| Float | 50 mm dia x 85mm Length 50mm Dia X 85mm long |
| Maximum Working Pressure | 10 kg/cm2 |
| Maximum Working Temperature | 125C |
| Switch Rating | 100VA |
| Total Stem Length | as per your requirement|Maximum up to 3 meters |
| Level Measurement Type | Point Level |
| Number of Levels | 2 |
| Switching Voltage (V) | Potential Free Output |
| Number of Positions | 2 |
Key Features
- Bulk Quantities Available
Product Description
VMT-16-F120-FLP-230-1R-HOC Level SwitchWe are offering VMT-16-F120-FLP-230-1R-HOC Level Switch to our client.
