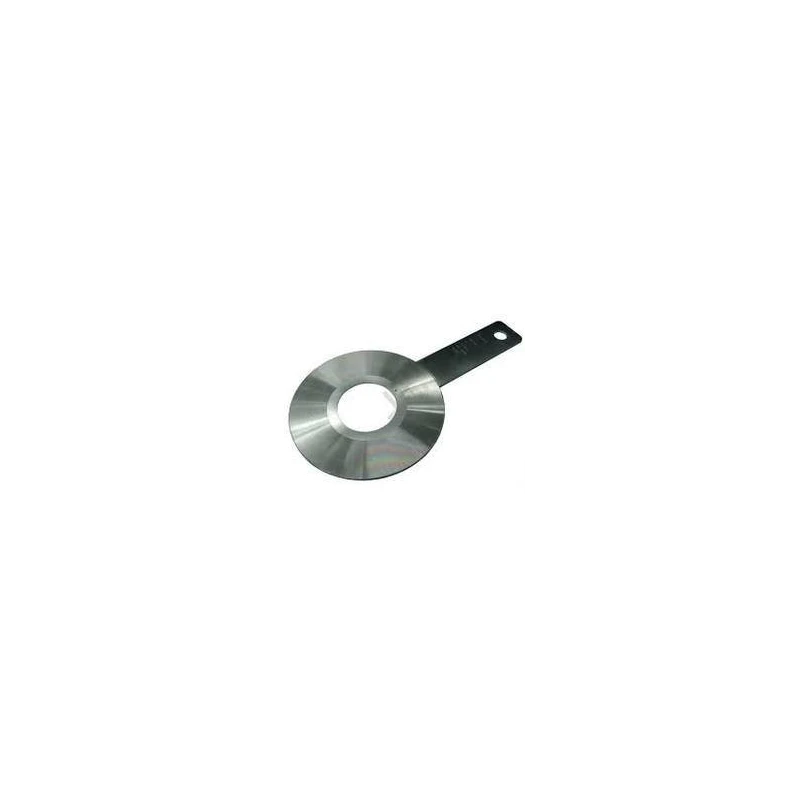

Orifice Plate
Specifications
| Size | 1 inch| 3 inch| 1 to 24 inch| 1/2 inch| 3/4 inch| 2 inch |
|---|---|
| Applications | Gas Pipe| Hydraulic Pipe| Pneumatic Connections| Chemical Fertilizer Pipe| Air| water| Gas| Fluid| Diesel| Chemical| steam| etc |
| Thread Size | Socket or Flanged |
Key Features
- Bulk Quantities Available
Product Description
ORIFICE Plates are used in between Flanges and used for measuring the flow of various Liquids, Gases & Steam from suitable for creating differential pressure in a pipe line for flow transmitter, etc.Available in SS-316/P.P.Material.Design standard confirm to BS 1042 Orifice Plates are most commonly used as the primary element for flow measurement in pipelines based upon the principle of measurement of Differential Pressure created when an obstruction is placed in the fluid flow, due to an increase in fluid velocity.Design StandardsDESIGN - Confirming to ISA RP 3.2, DN 1952, BS 1042, ISO-5167ORIFICE BORE - Confirming to ISO 5167ACCURACY - Within /- 1 %VENT / DRAIN - Vent OR Drain holes are provided as per customers requirement. Not drilled for Orifice Bore smaller than 25.4 mm
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The orifice plate is available in sizes ranging from 1/2 inch to 24 inches, including 1 inch, 3 inch, and 2 inch options.
This orifice plate is constructed from SS-316 or P.P. material, suitable for various applications.
It can be used in applications involving gas pipes, hydraulic pipes, pneumatic connections, chemical fertilizer pipes, air, water, gas, fluids, diesel, chemicals, and steam.
The accuracy of this orifice plate is within +/- 1%.
The design standards for this orifice plate confirm to ISA RP 3.2, DN 1952, BS 1042, and ISO 5167.
The orifice plate is installed between flanges and is available with socket or flanged thread sizes for compatibility with piping systems.
Yes, vent or drain holes are provided according to customer requirements, but they are not drilled for orifice bores smaller than 25.4 mm.
The orifice plate operates based on the principle of measuring the differential pressure created when an obstruction is placed in the fluid flow, resulting in an increase in fluid velocity.
Yes, this orifice plate is suitable for measuring the flow of steam as well as various liquids and gases.
The orifice bore sizes are available according to ISO 5167 standards, with specific configurations based on customer requirements.
Yes, this model is customizable, and specific requirements or configurations should be confirmed through an enquiry.
