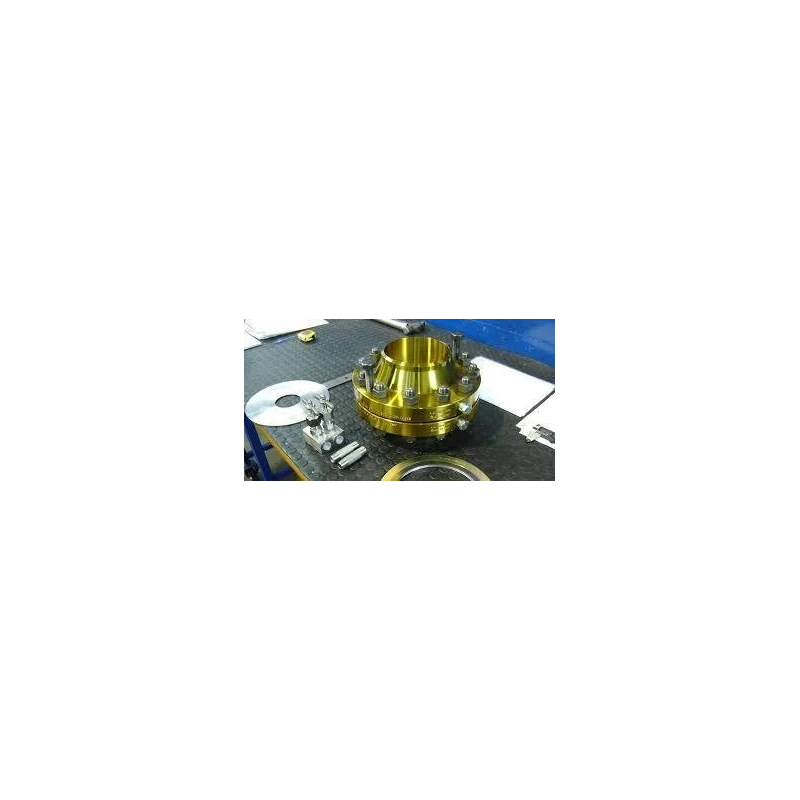

Orifice Plates
Specifications
| Size | 1 to 24| 3 inch| 3/4 inch| 1 inch| 2 inch| 1/2 inch |
|---|---|
| Applications | Gas Pipe| Hydraulic Pipe| Chemical Fertilizer Pipe| Pneumatic Connections |
Key Features
- Bulk Quantities Available
Product Description
ORIFICE FLANGE ASSEMBLIES are used for measuring flow of various Liquids, Gases & Steam fromSuitable for creating differential pressure in a pipe line for flow transmitter etc. Orifice flange assemblies consist of weld neck type flanges with studs, nuts, and gaskets.Available in SS-316/P.P.Material.Design standard confirm to BS 1042 1 to 24 line sizes. It gives an acceptable level of uncertainties at lowest cost and long life without regular maintenance.Orifice Plates are most commonly used as primary element for flow measurement in pipelines based upon the principle of measurement of Differential Pressure created when an obstruction is placed in the fluid flow, due to increase in fluid velocity.Design Standards:DESIGN - Confirming to ISA RP 3.2, DN 1952, BS 1042, ISO-5167ORIFICE BORE - Confirming to ISO 5167ACCURACY - Within /- 1 %VENT / DRAIN - Vent OR Drain holes are provided as per customers requirement. Not drilled for Orifice Bore smaller than 25.4 mm
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The orifice plates are available in sizes ranging from 1 to 24 inches, including specific sizes like 3 inch, 3/4 inch, 1 inch, 2 inch, and 1/2 inch.
These orifice plates are constructed from SS-316 and P.P. materials.
The orifice plates confirm to several design standards including ISA RP 3.2, DN 1952, BS 1042, and ISO 5167.
The accuracy of the flow measurement using these orifice plates is within +/- 1%.
They are suitable for applications involving gas pipes, hydraulic pipes, chemical fertilizer pipes, and pneumatic connections.
Yes, vent or drain holes are provided as per customer requirements, but they are not drilled for orifice bores smaller than 25.4 mm.
These orifice plates operate on the principle of measuring differential pressure created when an obstruction is placed in the fluid flow, leading to an increase in fluid velocity.
They can measure the flow of various liquids, gases, and steam.
The orifice flange assemblies consist of weld neck type flanges with studs, nuts, and gaskets.
The orifice bore confirms to ISO 5167.
Orifice plates are commonly used as primary elements for flow measurement in pipelines, based on the principle of differential pressure.
Yes, these orifice plates are customizable to meet specific customer requirements, including size and configuration.
