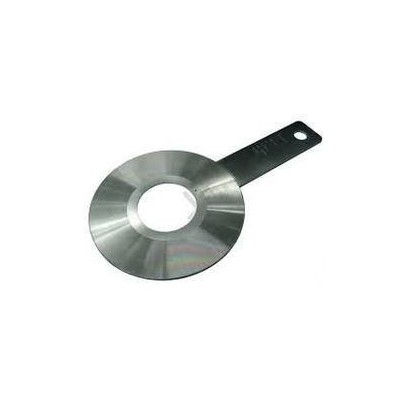

Steam Restricted Orifice Plate
Specifications
| Size | 1/2 inch| 3/4 inch| 1 inch| 2 inch| 3 inch| 1 to 24 inch |
|---|---|
| Type | ALL |
| Applications | Air| Water| Gas| Chemical| Steam| etc AS PER REQUIREMENT |
| Minimum Order Quantity | 1 Piece |
| Thread Size | Thread or Flanged |
Key Features
- Bulk Quantities Available
Product Description

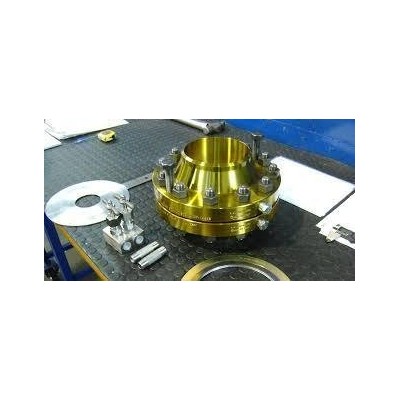

ORIFICE FLANGE ASSEMBLIES are used for measuring the flow of various Liquids, Gases & Steam suitable for creating differential pressure in a pipeline for flow transmitter, etc.Orifice flange assemblies consist of weld neck-type flanges with studs, nuts, and gaskets.Available in SS-316/P.P.Material.Design standard confirm to BS 1042 Orifice Plates are most commonly used as primary element for flow measurement in pipelines based upon the principle of measurement of Differential Pressure created when another obstruction is placed in the fluid flow, due to an increase in fluid velocity.Design Standards _DESIGN - Confirming to ISA RP 3.2, DN 1952, BS 1042, ISO-5167ORIFICE BORE - Confirming to ISO 5167ACCURACY - Within /- 1 %VENT / DRAIN - Vent OR Drain holes are provided as per customers requirement. Not drilled for Orifice Bore smaller than 25.4 mm1 to 24 line sizes. It gives an acceptable level of uncertainties at the lowest cost and long life without regular maintenance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is available in sizes ranging from 1/2 inch to 24 inches, including 3/4 inch, 1 inch, 2 inch, and 3 inch options.
The orifice flange assemblies are available in SS-316 and polypropylene materials.
The accuracy of this model is within +/- 1%.
It can be used for measuring the flow of air, water, gas, chemicals, and steam, among other applications.
It conforms to design standards including ISA RP 3.2, DN 1952, BS 1042, and ISO 5167.
It supports both threaded and flanged connections, depending on the customer's requirements.
Yes, vent or drain holes are provided as per customer requirements, but they are not drilled for orifice bores smaller than 25.4 mm.
The minimum order quantity for the Steam Restricted Orifice Plate is 1 piece.
Yes, this model is customizable based on specific customer requirements.
It operates based on the principle of measuring differential pressure created by an obstruction in the fluid flow, which results in an increase in fluid velocity.
Yes, the orifice bore conforms to ISO 5167 standards, and specific sizes can be provided as per requirements.
