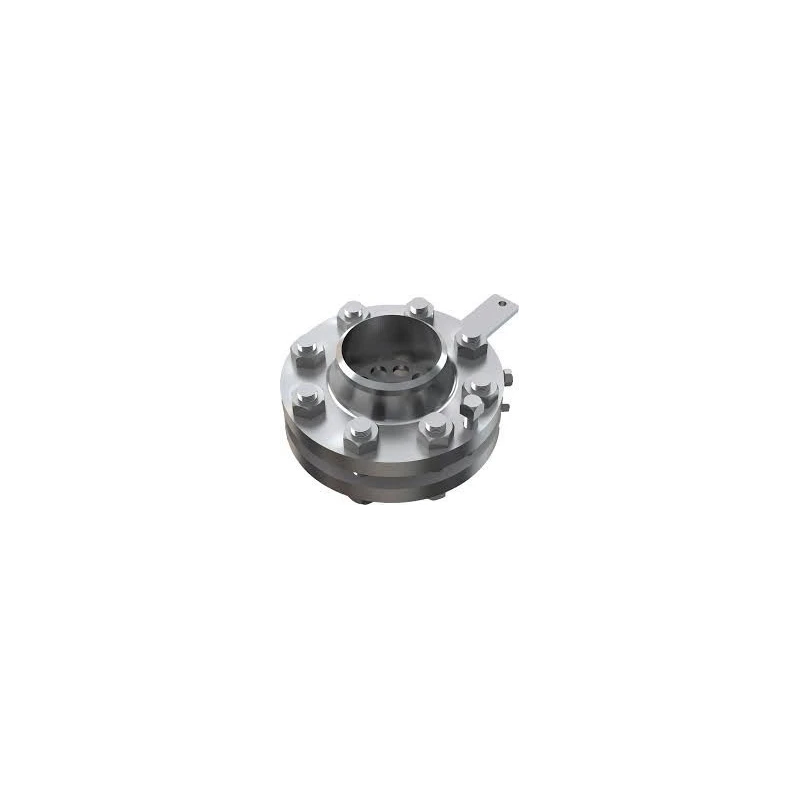

Orifice Plate Flange Assembly
Specifications
| Size | 0-1 inch| 1-5 inch| 5-10 inch| 10-20 inch| 20-30 inch| Greater Than 30 inch |
|---|---|
| Material | AS PER REQUIREMENT |
| Grade | MS|CS|SS|ALLOY |
| Applications | all |
| Minimum Order Quantity | 1 Piece |
| Rated Pressure (Bar) | AS PER REUIREMENT |
| Material Standard | ASTM A105| ASTM A182| ASTM A351| ANSI B16.5 |
Key Features
- Bulk Quantities Available
Product Description
ORIFICE FLANGE ASSEMBLIES are used for measuring the flow of various Liquids, Gases & Steam suitable for creating differential pressure in a pipeline for flow transmitter, etc.Orifice flange assemblies consist of weld neck-type flanges with studs, nuts, and gaskets.Available in SS-316/P.P.Material.Design standard confirm to BS 1042 1 to 24 line sizes. It gives an acceptable level of uncertainties at the lowest cost and long life without regular maintenance.Orifice Plates are most commonly used as the primary element for flow measurement in pipelines based upon the principle of measurement of Differential Pressure created when an obstruction is placed in the fluid flow, due to an increase in fluid velocity.Design Standards:-DESIGN - Confirming to ISA RP 3.2, DN 1952, BS 1042, ISO-5167ORIFICE BORE - Confirming to ISO 5167ACCURACY - Within /- 1 %VENT / DRAIN - Vent OR Drain holes are provided as per the customers requirement. Not drilled for Orifice Bore smaller than 25.4 mm
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is available in sizes ranging from 0-1 inch, 1-5 inch, 5-10 inch, 10-20 inch, 20-30 inch, and greater than 30 inch.
The assembly can be made from various materials as per requirement, including MS, CS, SS, and alloy options.
It conforms to several design standards including ISA RP 3.2, DN 1952, BS 1042, and ISO 5167.
The accuracy of this assembly is within +/- 1%.
It is suitable for measuring the flow of various liquids, gases, and steam, creating differential pressure in pipelines.
The minimum order quantity for the Orifice Plate Flange Assembly is 1 piece.
The rated pressure is available as per requirement, allowing for customization based on specific needs.
Yes, vent or drain holes are provided as per customer requirements, but are not drilled for orifice bores smaller than 25.4 mm.
The assembly consists of weld neck-type flanges along with studs, nuts, and gaskets.
The orifice bore dimensions are confirmed to ISO 5167.
Yes, this product is customizable based on specific requirements, including size and material.
The assembly adheres to material standards such as ASTM A105, ASTM A182, ASTM A351, and ANSI B16.5.
