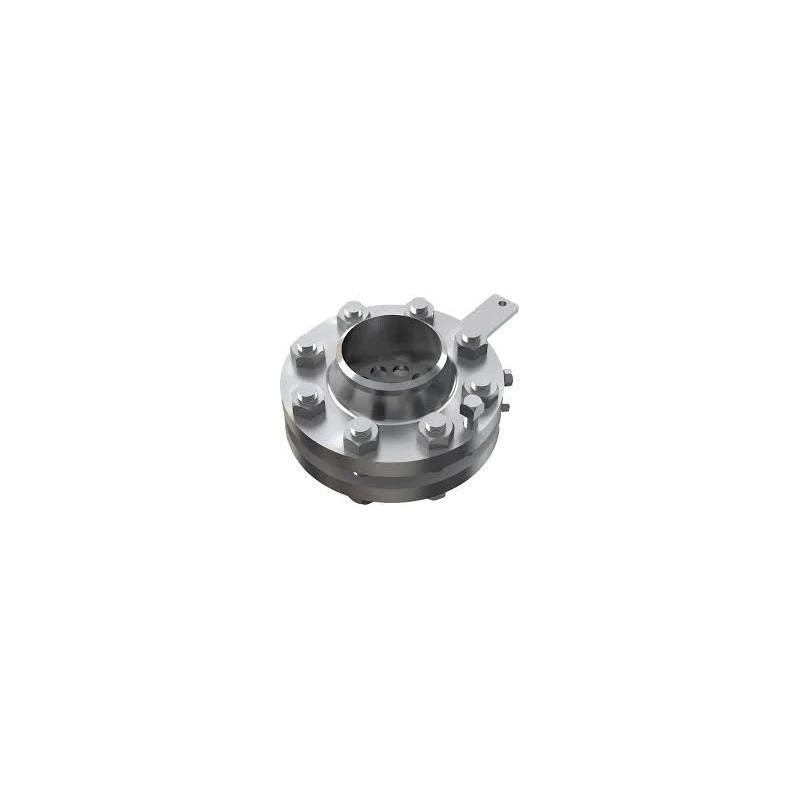

Orifice Flange Assembly
Specifications
| Size | 0-1 inch| 1-5 inch| 5-10 inch| 10-20 inch| 20-30 inch| Greater Than 30 inch |
|---|---|
| Material | AS PER REQUIREMENT |
| Grade | MS|CS|SS|ALLOY |
| Applications | all |
| Minimum Order Quantity | 1 Piece |
| Material Standard | ASTM A105| ASTM A182| ASTM A351| ANSI B16.5 |
Key Features
- Bulk Quantities Available
Product Description
ORIFICE FLANGE ASSEMBLIES are used for measuring the flow of various Liquids, Gases & Steam Suitable for creating differential pressure in a pipeline for flow transmitter, etc.Orifice flange assemblies consist of weld neck-type flanges with studs, nuts, and gaskets.Available in SS-316/P.P.Material.Design standard confirm to BS 1042 1 to 24 line sizes. It gives an acceptable level of uncertainties at the lowest cost and long life without regular maintenance.Orifice Plates are most commonly used as the primary element for flow measurement in pipelines based upon the principle of measurement of Differential Pressure created when an obstruction is placed in the fluid flow, due to an increase in fluid velocity.Design StandardsDESIGN - Confirming to ISA RP 3.2, DN 1952, BS 1042, ISO-5167ORIFICE BORE - Confirming to ISO 5167ACCURACY - Within /- 1 %VENT / DRAIN - Vent OR Drain holes are provided as per the customers requirement. Not drilled for Orifice Bore smaller than 25.4 mm
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The orifice flange assembly is available in sizes ranging from 0-1 inch to greater than 30 inch.
The assembly can be made from materials as per requirement, including options like MS, CS, SS, and alloy.
It conforms to design standards including ISA RP 3.2, DN 1952, BS 1042, and ISO 5167.
The accuracy of the flow measurement with the orifice flange assembly is within +/- 1%.
The orifice flange assembly is suitable for measuring the flow of various liquids, gases, and steam.
Yes, vent or drain holes are provided as per customer requirements, but they are not drilled for orifice bores smaller than 25.4 mm.
The minimum order quantity for this assembly is 1 piece.
It is used for creating differential pressure in a pipeline for flow measurement with a flow transmitter.
The assembly consists of weld neck-type flanges along with studs, nuts, and gaskets.
The orifice bore dimensions are confirmed to ISO 5167 standards.
Yes, the orifice flange assembly is customizable based on specific requirements.
The applicable material standards include ASTM A105, ASTM A182, ASTM A351, and ANSI B16.5.
