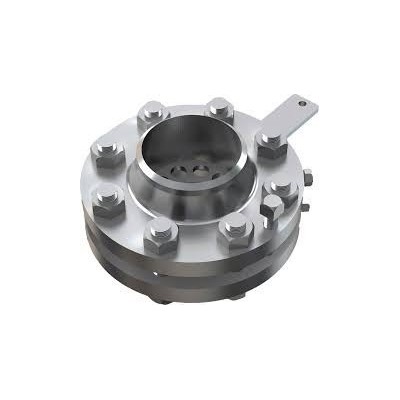

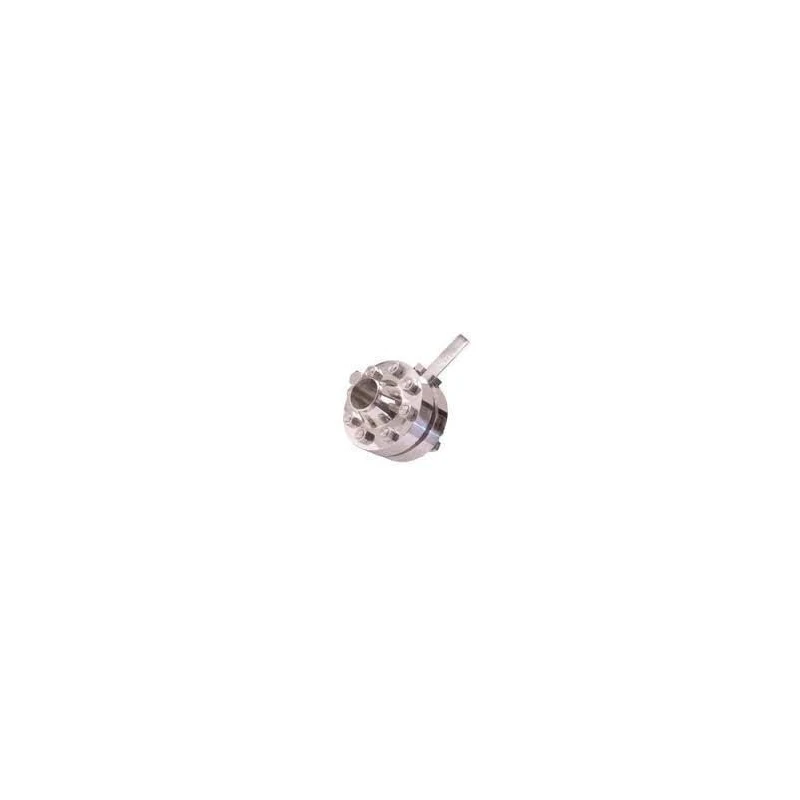

Stainless Steel Orifice Flange
Specifications
| Size | 0-1 inch| 1-5 inch| 5-10 inch| 10-20 inch| 20-30 inch| Greater Than 30 inch |
|---|---|
| Material | AS PER REQUIRMENT |
| Pipe Size | AS PER REQUIRMENT |
| Minimum Order Quantity | 1 Piece |
| Rated Pressure (Bar) | As per customer requirements |
| Material Standard | ASTM A105| ASTM A182| ASTM A351| ANSI B16.5 |
| Ouside Diameter of Flange | AS PER STANDARD |
Key Features
- Bulk Quantities Available
Product Description
ORIFICE FLANGE ASSEMBLIES are used for measuring flow of various Liquids, Gases & Steam fromSuitable for creating differential pressure in a pipe line for flow transmitter etc. Orifice flange assemblies consist of weld neck type flanges with studs, nuts, and gaskets.Available in SS-316/P.P.Material.Design standard confirm to BS 1042 1 to 24 line sizes. It gives an acceptable level of uncertainties at lowest cost and long life without regular maintenance.Orifice Plates are most commonly used as primary element for flow measurement in pipelines based upon the principle of measurement of Differential Pressure created when an obstruction is placed in the fluid flow, due to increase in fluid velocity.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The orifice flange assemblies are available in sizes ranging from 0-1 inch, 1-5 inch, 5-10 inch, 10-20 inch, 20-30 inch, and greater than 30 inch, depending on customer requirements.
The material for the orifice flange can be specified as per customer requirements, with options including SS-316 and P.P. material.
The minimum order quantity for the orifice flange assemblies is 1 piece.
The orifice flange assemblies are designed to conform to the material standards ASTM A105, ASTM A182, ASTM A351, and ANSI B16.5.
The rated pressure for the orifice flange is as per customer requirements, allowing for customization based on specific applications.
The orifice flange assembly consists of weld neck type flanges, studs, nuts, and gaskets.
The orifice flange measures flow based on the principle of differential pressure created when an obstruction is placed in the fluid flow, resulting in an increase in fluid velocity.
The outside diameter of the flange is determined as per standard specifications, which can be specified based on customer requirements.
Yes, the pipe size for the orifice flange can be customized as per customer requirements.
This orifice flange is suitable for applications involving flow measurement of liquids, gases, and steam in various industrial settings.
Orifice plates are commonly used as the primary element for flow measurement in pipelines, as they help create the necessary differential pressure for accurate flow measurement.
