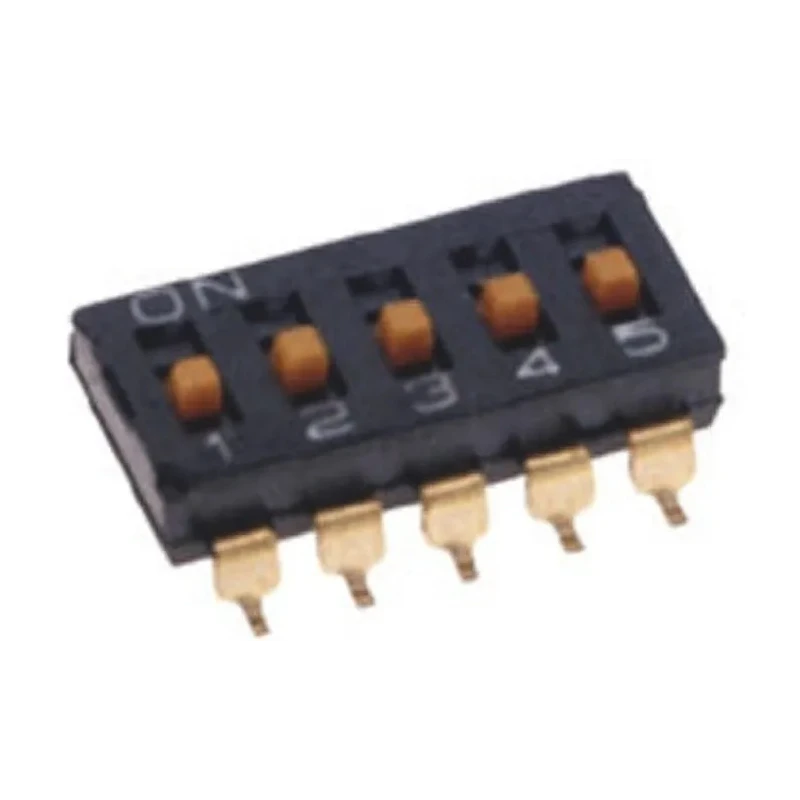

Omron Slide Rotary Coded DIP Switch Surface Mount Model A6S-4101-H
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Model | A6S-4101-H |
| Mount Type | Surface Mount |
| Actuator Type | Slide |
| Insulation resistance | 100MΩ min at 250Vdc |
| Contact Resistance | 200mΩ max |
| Mechanical Life | 1000 operations |
| Omron Slide Rotary Coded DIP Switch Surface MountBrand | Omron |
Key Features
- Surface mount design supports automatic mounting with IC insertion machines.
- Features gold plated contacts to ensure durable and low resistance electrical connections.
- Contact resistance is rated at 200 mΩ maximum for efficient conductivity.
- Insulation resistance is 100 MΩ minimum at 250 Vdc for safety and performance.
- Mechanical life expectancy is 1000 operations, ensuring long-term reliability.
- Compact design conforms to Dual-In-Line (DIL) standards for easy integration.
- Manufactured in China, compliant with RoHS environmental standards.
Product Description
Omron A6S-4101-H Slide Rotary Coded DIP Switch Surface Mount is a precision-engineered electronic switch designed for reliable operation in automation and electrical control systems. It features a surface mount package compatible with automatic IC insertion machines, enhancing manufacturing efficiency and consistency.
This switch uses a slide actuator type that allows smooth, tactile switching action. The gold plated contacts minimize contact resistance, rated at a maximum of 200 milliohms, ensuring stable electrical performance with minimal power loss. Insulation resistance is rated at 100 megaohms minimum at 250 Vdc, providing robust electrical isolation and safety in circuit applications.
The switch is rated for a mechanical life of 1000 operations, suitable for applications requiring frequent actuation. It is designed according to Dual-In-Line (DIL) sizing standards, making it compatible with standard PCB layouts and mounting patterns.
Manufactured in China, this model is compliant with RoHS directives, ensuring it meets environmental and safety standards for hazardous substance restrictions. Its compact and reliable design makes it ideal for use in industrial automation, control panels, instrumentation, and various electronic device assemblies.
Surface mount design supports automatic mounting with IC insertion machines. Gold plated contacts provide low resistance and enhanced durability. Contact resistance rated at 200 mΩ max for reliable connectivity. Insulation resistance of 100 MΩ minimum at 250 Vdc ensures electrical safety.
Mechanical life of 1000 operations suitable for frequent switching. Compact format conforms to DIL standards for PCB compatibility. RoHS compliant for environmentally safe usage. Explore more switching components and electronic solutions in our Electronics & Electricals category at EnvMart to fulfill your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The insulation resistance is rated at a minimum of 100 MΩ at 250 Vdc, ensuring robust electrical isolation and safety in circuit applications.
This model has a mechanical life expectancy of 1000 operations, making it suitable for applications that require frequent actuation.
The contact resistance is rated at a maximum of 200 mΩ, which ensures reliable connectivity and minimal power loss.
It features a surface mount design, which supports automatic mounting with IC insertion machines, enhancing manufacturing efficiency.
The switch utilizes a slide actuator type, allowing for smooth and tactile switching action.
Yes, it is compliant with RoHS directives, ensuring it meets environmental and safety standards for hazardous substance restrictions.
The switch conforms to Dual-In-Line (DIL) standards, making it compatible with standard PCB layouts and mounting patterns, but specific dimensions are not provided.
This model is manufactured in China.
It is ideal for use in industrial automation, control panels, instrumentation, and various electronic device assemblies, as supported by its design features.
It is designed for reliable operation in automation and electrical control systems, functioning as a precision-engineered electronic switch.
The switch features gold plated contacts that minimize contact resistance, ensuring stable electrical performance and enhancing durability.
The surface mount design supports automatic mounting with IC insertion machines, which improves manufacturing efficiency and consistency.
