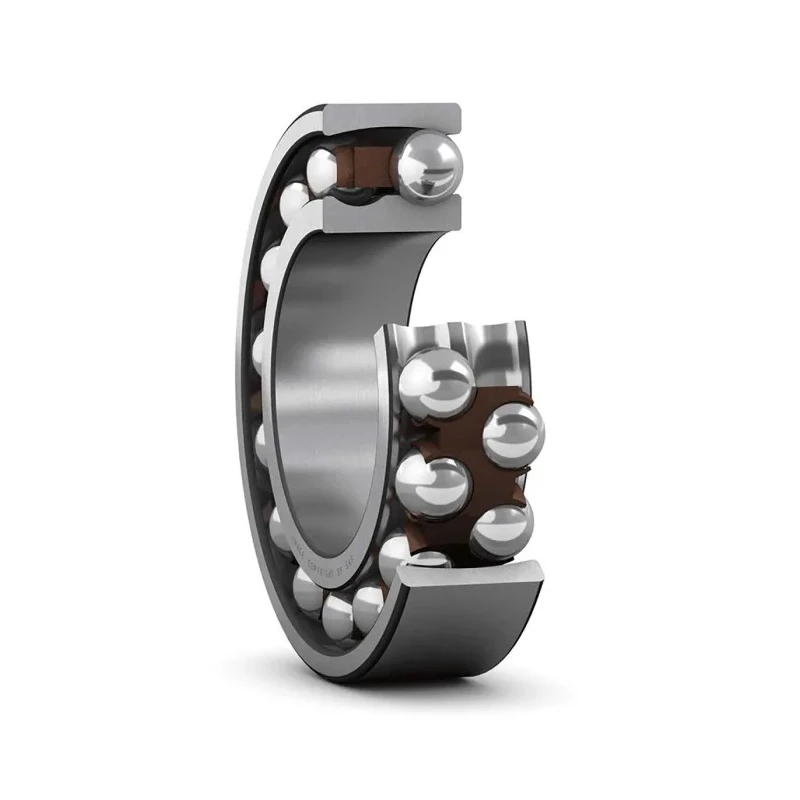

SKF Self-Aligning 2 Row Ball Bearing 65 mm Inside Diameter, 140 mm Outside Diameter, 33 mm Race Width 1313 EKTN9

SKF 1313 EKTN9 self-aligning 2 row ball bearing offers a bore diameter of 65 mm, an outside diameter of 140 mm, and a race width of 33 mm, designed for rotary applications requiring durability and load accommodation. The outer ring has a common sphered raceway, while the inner ring features two deep uninterrupted raceway grooves, enhancing the bearing's ability to withstand angular misalignment caused by shaft deflection.

The bearing incorporates two rows of steel balls, arranged to distribute load more effectively, supported by a non-metallic cage that reduces friction and heat buildup during operation. The open end type permits straightforward maintenance and lubrication, ensuring prolonged bearing life.

This bearing’s tapered bore facilitates secure fitting on shafts, preventing slippage and improving operational stability. With a static load rating of 25.5 kN and dynamic load rating of 65 kN, it is well-suited for demanding industrial applications including mechanical machinery, fluid power systems, and various manufacturing environments.

The 1313 EKTN9 model is part of SKF's self-aligning ball bearing series, capable of handling shaft and housing misalignments, with a limiting speed of up to 5000 rpm, supporting high-speed operations.

Two rows of steel balls enhance load management. Non-metallic cage lowers operational friction. Open end type construction allows easy servicing. Tapered bore design ensures secure mounting. Effective resistance to angular misalignment.

Rated for 5000 rpm maximum speed. Static and dynamic load ratings up to 25.5 kN and 65 kN respectively. Suitable for industrial, manufacturing, and mechanical applications. Choose SKF ball bearings for reliable, high-performance rotary bearing solutions. Explore more products in the Ball Bearings category at EnvMart.
