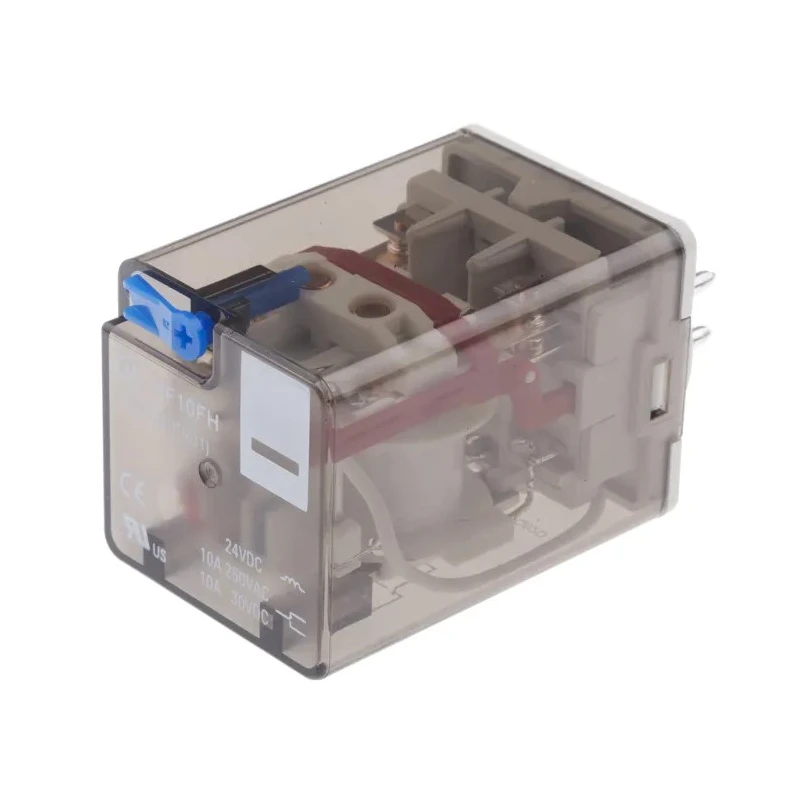

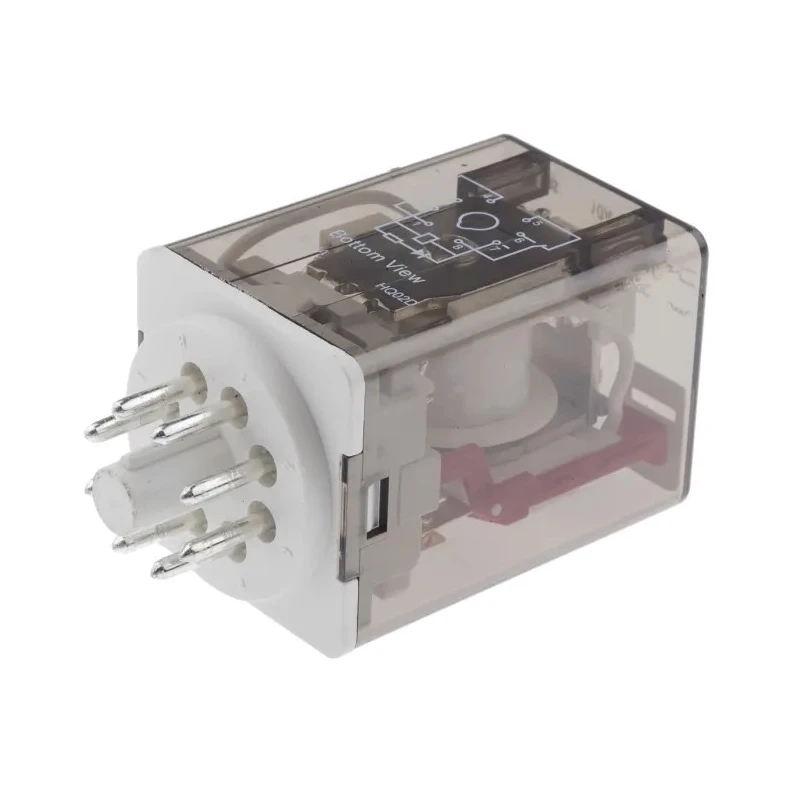

Hongfa Europe GMBH Power Relay 24V dc Coil 10A Switching Current DPDT HF10FH024D2ZDT
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 55.3mm |
| Length | 35.5mm |
| Model | HF10FH024D2ZDT |
| Width | 35.5mm |
| Contact Material | Silver Alloy |
| Series | HF10FH |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Plug-In |
| Contact Resistance | 100mΩ |
| Standards/Approvals | cULus, CE |
| Coil Resistance | 430Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V |
| Coil Power | 1.5W |
| Switching Power | 300W |
Key Features
- Designed for a coil voltage of 24V dc ensuring consistent coil operation.
- Dual Pole Double Throw (DPDT) contact configuration for versatile switching applications.
- Rated switching current is 10 amperes for high electrical load capacity.
- Compact dimensions of 55.3mm height, 35.5mm length, and 35.5mm width allow easy integration.
- Coil resistance of 430 ohms ensures stable coil power consumption of 1.5 watts.
- Operates reliably within a temperature range of -40°C to 55°C.
- Switching power rating of 300 watts suitable for robust industrial use.
- Supports switching AC voltage up to 250V and DC voltage up to 30V.
Product Description
Hongfa Europe GMBH HF10FH024D2ZDT power relay is a miniature high power relay designed for industrial-grade electrical applications, featuring a 24V dc coil and a dual pole double throw (DPDT) contact configuration. This relay supports a 10A switching current and is engineered for long endurance in various power control circuits.
Its compact form factor with height, length, and width measuring 55.3mm, 35.5mm, and 35.5mm respectively, fits easily into industrial and automation systems. The coil resistance is 430 ohms, consuming only 1.5W coil power, facilitating efficient operation and low heat generation.
Operating temperature ranges from -40°C to 55°C ensure reliable performance under harsh environmental conditions. The relay can handle a switching power of 300W, supporting switching voltages up to 250V AC and 30V DC for diverse load requirements.
The contact material is silver alloy, providing excellent conductivity and durability, with a low contact resistance of 100 milliohms to minimize power losses. The plug-in terminal type allows for straightforward installation and maintenance in electrical panels and control units.
This power relay is certified to meet international safety and quality standards including cULus and CE, making it suitable for industrial, automation, HVAC, manufacturing, and power management applications. RoHS compliance further assures environmental and operational safety.
Designed for 24V dc coil voltage with 10A current rating. DPDT contact configuration offers versatile switching options. Compact size for easy installation in tight spaces. Low coil power consumption and resistance ensure efficiency.
Wide operating temperature range for harsh environments. High switching power supports varied industrial loads. Durable silver alloy contacts minimize resistance and wear. Plug-in terminals provide simple and reliable connections.
Certified with cULus and CE standards and RoHS compliant. Explore more high-quality Power Relays and related components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 24V DC, ensuring consistent coil operation.
This model supports a maximum switching current of 10A, suitable for high electrical load capacity.
The contact configuration of the HF10FH024D2ZDT is Dual Pole Double Throw (DPDT), allowing for versatile switching applications.
The dimensions of this relay are 55.3mm in height, 35.5mm in length, and 35.5mm in width, making it compact for easy integration.
This relay operates reliably within a temperature range of -40°C to 55°C, suitable for harsh environmental conditions.
The coil resistance of this power relay is 430 ohms, which ensures stable coil power consumption of 1.5 watts.
The maximum switching power rating for this relay is 300 watts, making it suitable for robust industrial use.
It supports switching AC voltage up to 250V and DC voltage up to 30V, accommodating diverse load requirements.
The contacts are made of silver alloy, providing excellent conductivity and minimizing contact resistance.
This relay features a plug-in terminal type, allowing for straightforward installation and maintenance in electrical panels and control units.
This power relay is certified to meet international safety and quality standards including cULus and CE, and is RoHS compliant.
This relay is suitable for applications in industrial, automation, HVAC, manufacturing, and power management sectors.
