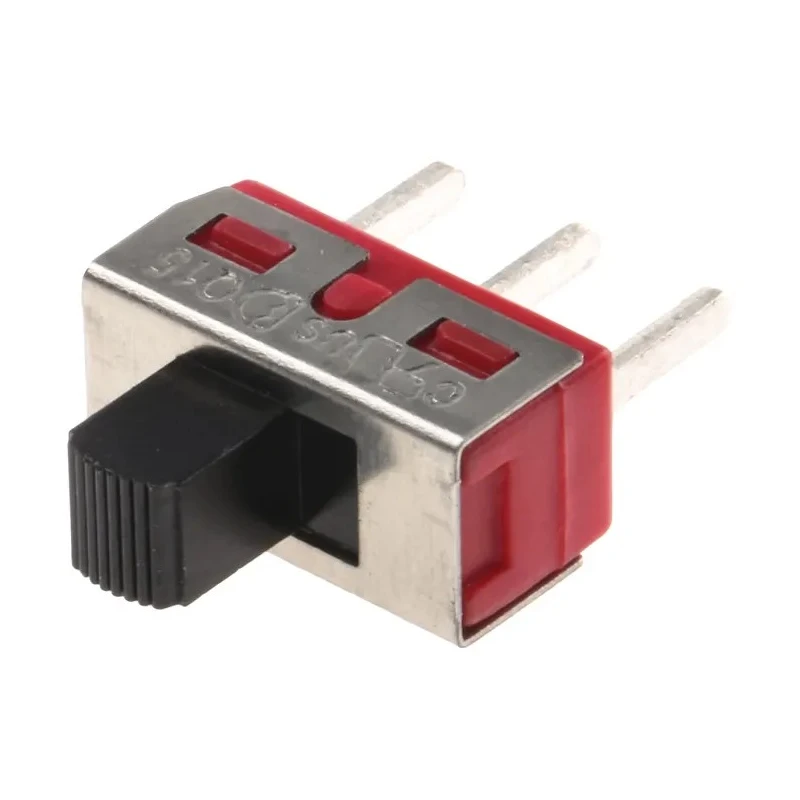

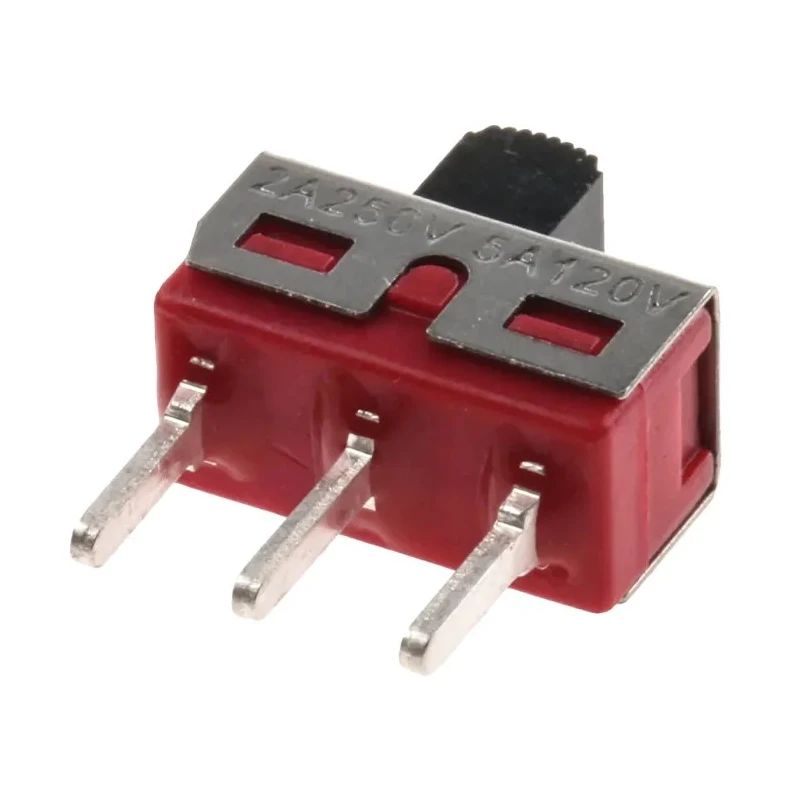

RS PRO PCB Slide Switch SPDT Latching 5A 28V DC Silver Plated Brass 7347292P

RS PRO 7347292P is a high-quality PCB slide switch designed for electrical control applications. It uses a single pole double throw (SPDT) latching mechanism to switch circuits on printed circuit boards efficiently, with a contact current rating of 5 amperes at 28 volts DC. The actuator features silver plated brass construction with a grooved surface, enhancing operator grip and durability.

The switch’s compact dimensions of 12.7 mm length, 6.35 mm width, and 6.35 mm depth fit well within densely populated PCBs. It employs through-hole mounting with solder terminals, ensuring secure and reliable installation. The product is RoHS compliant and built to withstand mechanical switching demands with a life expectancy of 30,000 cycles, making it suitable for industrial, medical instrumentation, domestic appliances, and networking equipment.

The robust design includes a high-dielectric strength DAP case and corrosion-resistant stainless steel housing, improving longevity and environmental resistance. Operating temperature ranges from -30°C up to +85°C, allowing use in diverse ambient conditions. Its low contact resistance (10 mΩ) enhances signal integrity, and wave soldering compatibility supports bulk PCB manufacturing processes.

Single pole double throw (SPDT) latching operation provides precise circuit control. Contact current rating of 5 A at 28 V DC enables moderate power switching. Silver plated brass actuator and contacts ensure corrosion resistance and durability.

Compact size with dimensions: 12.7 mm length, 6.35 mm width, and 6.35 mm depth. Through-hole PCB mounting with solder terminals for reliable connectivity. Mechanical life rating of 30,000 cycles for demanding operational conditions.

Operating temperature range from -30°C to +85°C suits various industrial environments. Low contact resistance of 10 milliohms improves electrical performance. RoHS compliant for environmental safety standards. Compatible with wave soldering processes for efficient mass production.

This RS PRO slide switch is ideal for applications spanning industrial machinery control, medical instrumentation, consumer electronics, and networking equipment. Its combination of durability, precise control, and ease of integration makes it a dependable choice for PCB level switch requirements.
