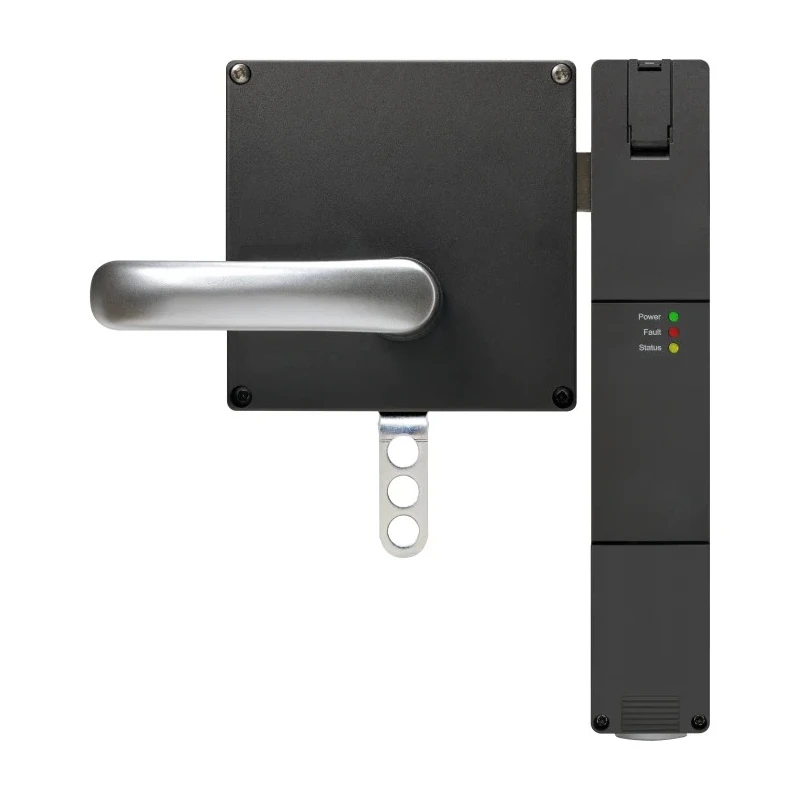

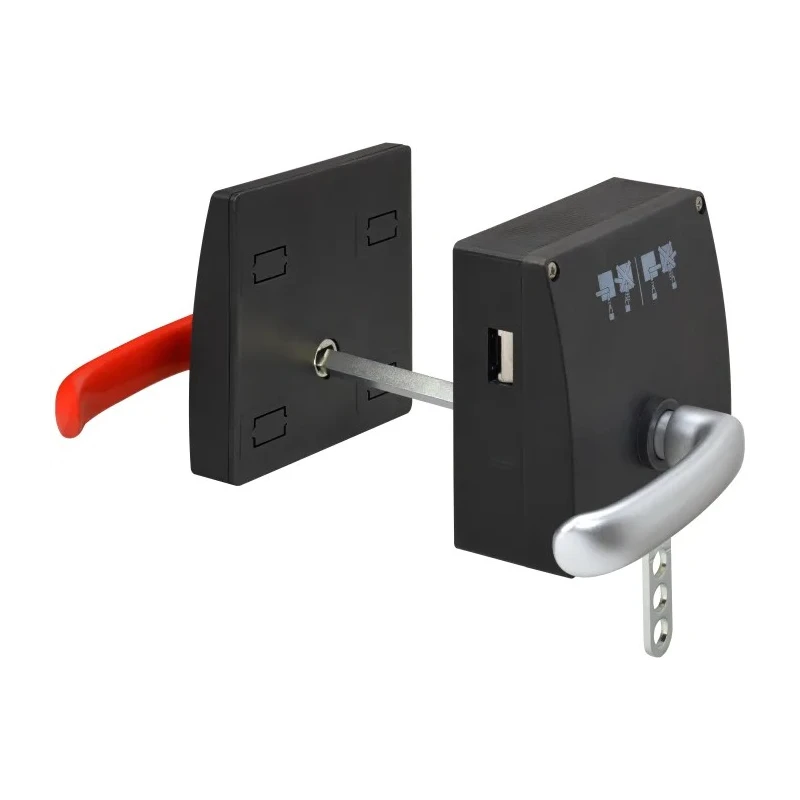

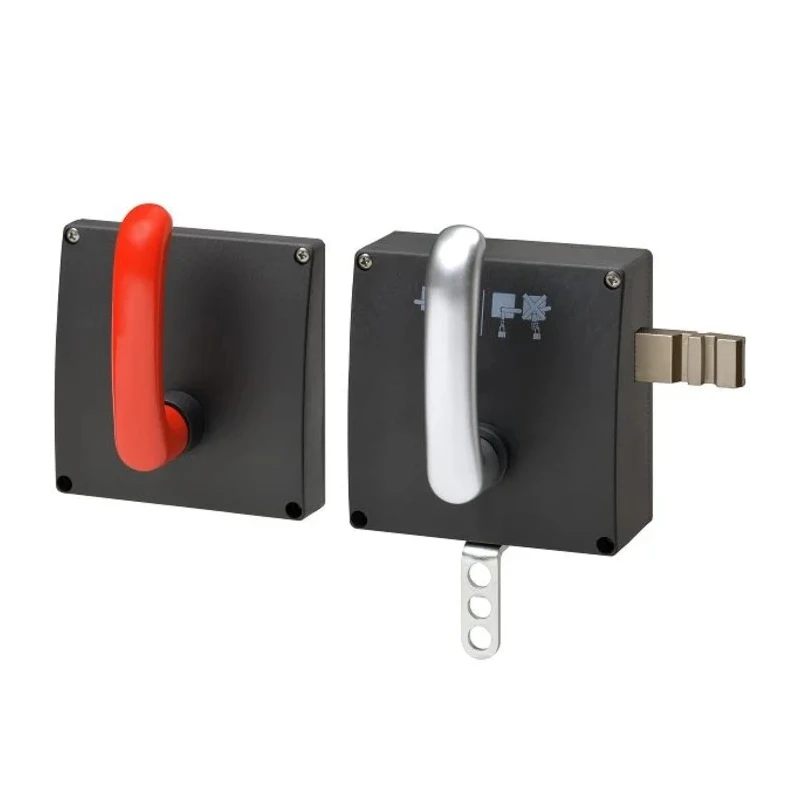

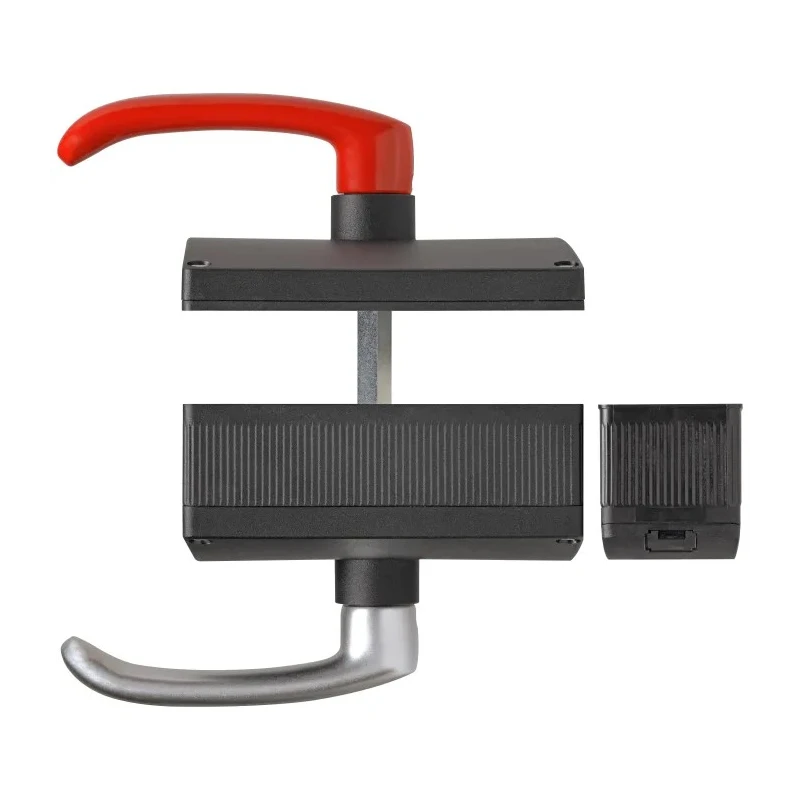

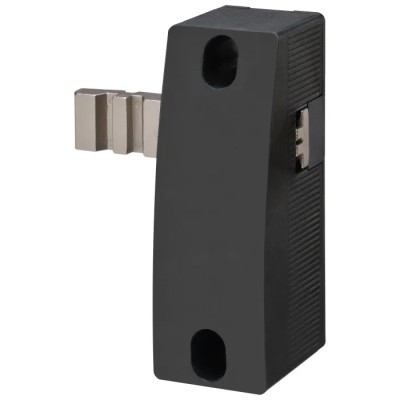

Omron Industrial Safety Interlock Actuator for Use with D41G Series Switch Plastic Housing IP66/IP67 D41G-A2L-E1T

Omron D41G-A2L-E1T is a high-quality industrial safety interlock actuator designed for use with D41G Series switches. Constructed from fibre-glass reinforced thermoplastic, it provides a lightweight yet robust solution for controlled access safety guarding applications. This actuator functions as a mechanical interface for hinged or sliding guards, enabling secure locking and emergency exit facilities when required.

With a minimum holding force of 2,000 N, the actuator ensures effective retention of safety doors to protect personnel during machine operation. Its IP66/IP67 protection class rating makes it resistant to dust ingress and water washdown, suitable for harsh manufacturing and industrial environments. The actuator operates reliably within a temperature range of −10°C to 55°C, supporting diverse working conditions.

The built-in solenoid supports 100% duty ratio for continuous locking, with a fast response time of 100 milliseconds to rapidly disengage the lock when triggered. Besides mechanical robustness, this device can be manually unlocked using a triangular manual-release key in cases of power failure, thereby complying with essential safety protocols to prevent operator entrapment.

This actuator is compliant with industrial certifications UL 508 and CAN/CSA C22.2 No.14, and adheres to RoHS standards, ensuring both safety and environmental care. Installation requires securing with two M6 screws tightened to 8 N·m torque, with tamper-proof safeguards recommended to prevent displacement.

It is ideally suited for integration into safety controllers requiring Performance Level e (PL e) safety circuits, making it perfect for gated access interlocks, hinged machine guards, and sliding guard doors in automated production lines. The actuator is engineered to meet strict UL508 and Canadian safety compliance demanding environments.

The actuator is made from fibre-glass reinforced plastic, ensuring lightweight durability under industrial conditions. It delivers a holding force of minimum 2,000 N for strong retention of safety doors. Rated protection class is IP66/IP67, allowing usage in washdown and dusty environments.

Operating temperature range is from −10°C to 55°C, suitable for a variety of industrial environments. Solenoid duty ratio is 100%, supporting continuous locking operation. Response time when switching OFF is 100 ms to limit risk in safety applications.

Compatible for use with hinged or sliding guards and integrates with high-coded safety door switches. Manual unlocking is possible during power loss, preventing entrapment and enhancing safety. Complies with UL 508, CAN/CSA C22.2 No.14, and RoHS standards representing high safety and environmental compliance.

Manufactured origin: Germany, ensuring high-quality production standards.

The Omron D41G-A2L-E1T actuator is applicable across various industrial sectors including manufacturing, automation, safety system integration, and hazardous area control, providing reliable interlocking and emergency exit functionality. Its durable construction and precise electrical control input characteristics make it ideal for safety-focused applications in industrial automation, water treatment, and commercial machine guarding.
