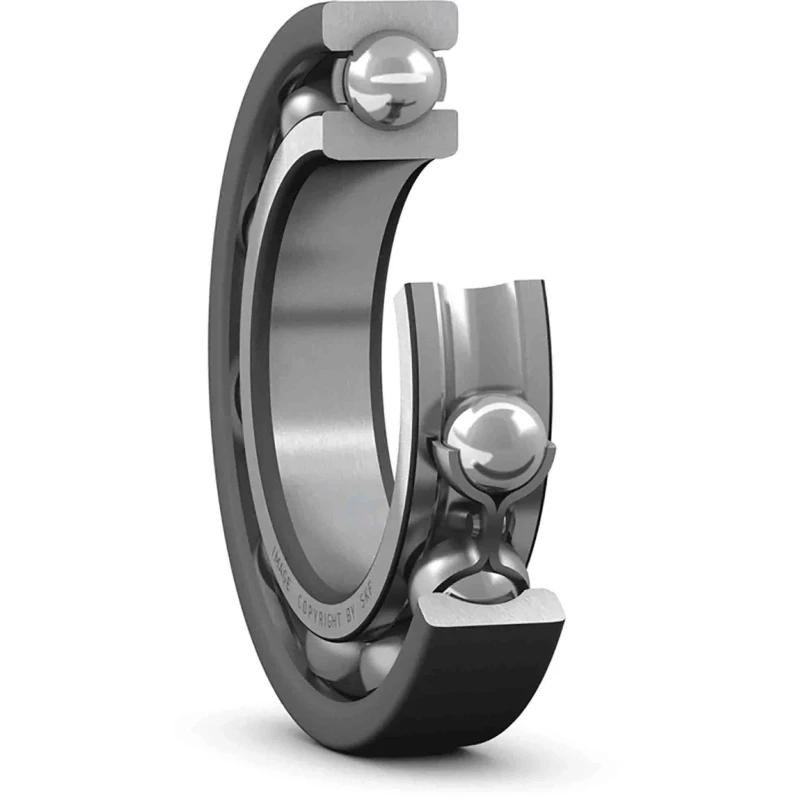

SKF Single Row Deep Groove Ball Bearing 90 mm ID, 190 mm OD, 43 mm Race Width, Machined Metal Cage, Model 6318 M/C3VL0241

SKF 6318 M/C3VL0241 is a precision-engineered Single Row Deep Groove Ball Bearing that features a 90 mm inside diameter and a 190 mm outside diameter with a 43 mm race width. This bearing is designed to withstand high and very high speeds commonly required in various industrial machinery and mechanical applications.

Constructed with steel balls running on hardened steel races, this bearing provides excellent durability and wear resistance. The cage is made from machined metal, offering robust retention and maintaining ball spacing under demanding operational conditions. The open end type design allows for ease of installation and application flexibility.

The bearing includes an internal clearance rating of C3, which is greater than normal to accommodate thermal expansions and axial displacements encountered in high-speed and temperature-variable environments. With a static load rating of 108 kN and a dynamic load rating of 151 kN, it is well-suited for applications involving substantial radial and axial loads.

The bore type is parallel, ensuring an exact fit on shafts with matching diameters. Its limiting speed of 7000 rpm makes it ideal for high-speed rotary applications in industrial machines, construction equipment, manufacturing plants, and HVAC systems.

SKF deep groove ball bearings are widely regarded for requiring minimal maintenance and offering versatile mounting options. The 6318 M/C3VL0241 model is manufactured in Germany, ensuring compliance with international quality and reliability standards.

This bearing features an open end type for versatility in applications. Constructed with steel balls and a machined metal cage for durability. Has a race width of 43 mm and a parallel bore type for fitting accuracy. Offers an internal clearance designation of C3 to accommodate thermal expansion.

Static load rating of 108 kN and dynamic load rating of 151 kN for reliable performance under load. Limited to a maximum speed of 7000 rpm suitable for rotary equipment. Single row deep groove ball bearing design allows for radial and axial load accommodation.

Manufactured in Germany to ensure high quality standards.

These bearings are essential components in the mechanical and fluid power sectors, widely used in rotary bearings and housing units. They are indispensable in industrial machinery, automotive applications, and equipment requiring high precision and load capacity. Explore additional SKF products and related Ball Bearings on EnvMart for comprehensive industrial solutions.
