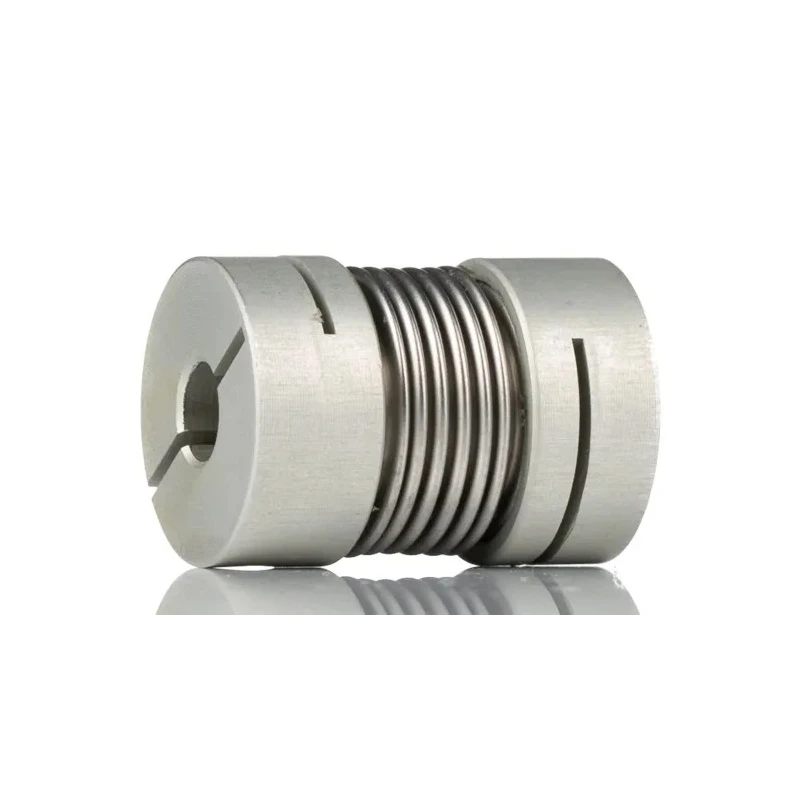

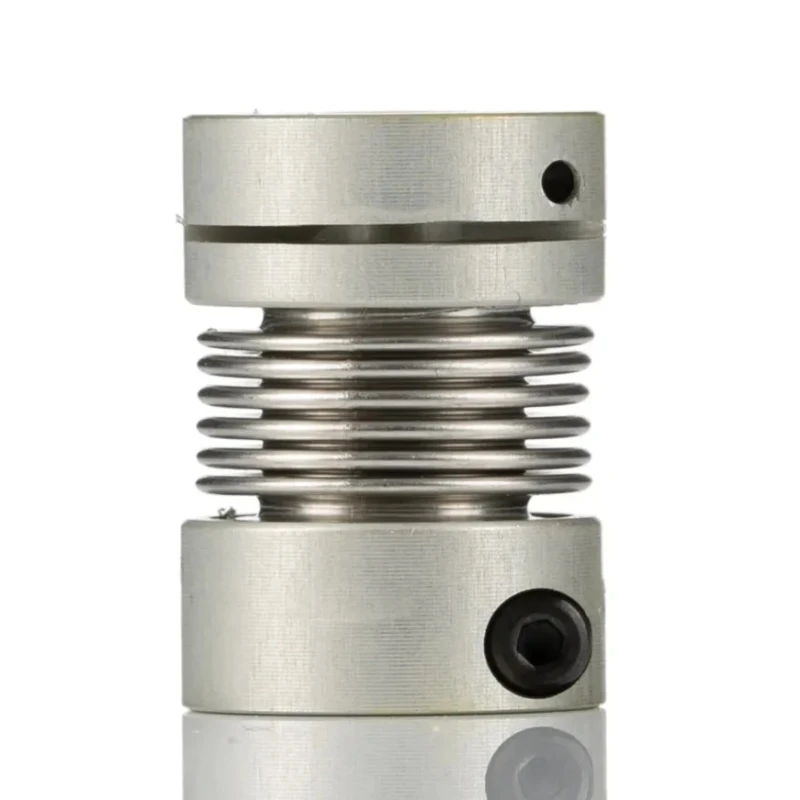

Huco Aluminium Hub Stainless Steel Bellows Clamp Style Flexible Coupler 7 mm Bore Size 23 mm Length 554.16.2020

Huco 554.16.2020 is a high precision flexible coupler designed for mechanical power transmission applications requiring accurate dynamic position control. It features an aluminium hub and stainless steel bellows with clamp-style fastening, providing a combination of high torsional stiffness and low inertia. This coupling is engineered to support maximum speeds of up to 15000 rpm and torque ratings of 0.43 Nm, making it well suited for servo drive systems and other precision machinery.

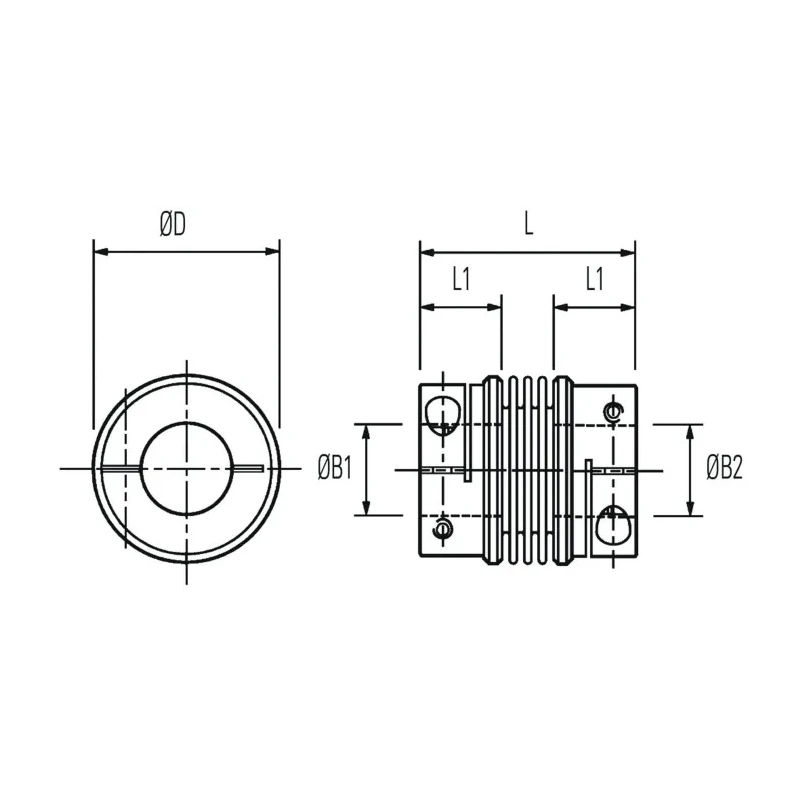

The coupler accommodates bore sizes of 7 mm on both ends and measures 23 mm in length. It tolerates angular misalignment of up to 1°, parallel misalignment of 0.1 mm, and axial misalignment of 0.2 mm, ensuring reliable performance despite shaft misalignments. Operating temperature ranges from -30°C to 120°C, making it usable in varied industrial environments.

The clamp-style design allows for secure attachment, minimizing play and backlash during operation. The robust aluminium and stainless steel construction delivers durability and corrosion resistance, ideal for demanding industrial conditions.

This product is manufactured in Germany by Huco and complies with the Flex K series standards for flexible couplings. It requires M2 screw size for assembly. Suitable sectors for this coupler include mechanical power transmission, servo drive systems, automation, and precision machinery manufacturing.

High torsional stiffness ensures precise positional accuracy. Low inertia design suits dynamic position control applications. Clamp-style coupling for firm shaft attachment. Supports bore diameters of 7 mm on both hubs. Maximum operating temperature of 120°C for industrial use.

Maximum speed rating of 15000 rpm enables high-speed operation. Torque capacity of 0.43 Nm fits light to moderate power transmission. Misalignment tolerances: angular 1°, parallel 0.1 mm, axial 0.2 mm. Constructed from aluminium hub and stainless steel bellows for strength.

Manufactured in Germany ensuring quality and performance.

This flexible coupler is ideal for applications requiring accurate servo drive positioning and is part of the reliable Huco Flex K series. Explore more mechanical power transmission solutions on EnvMart for comprehensive industrial needs.
