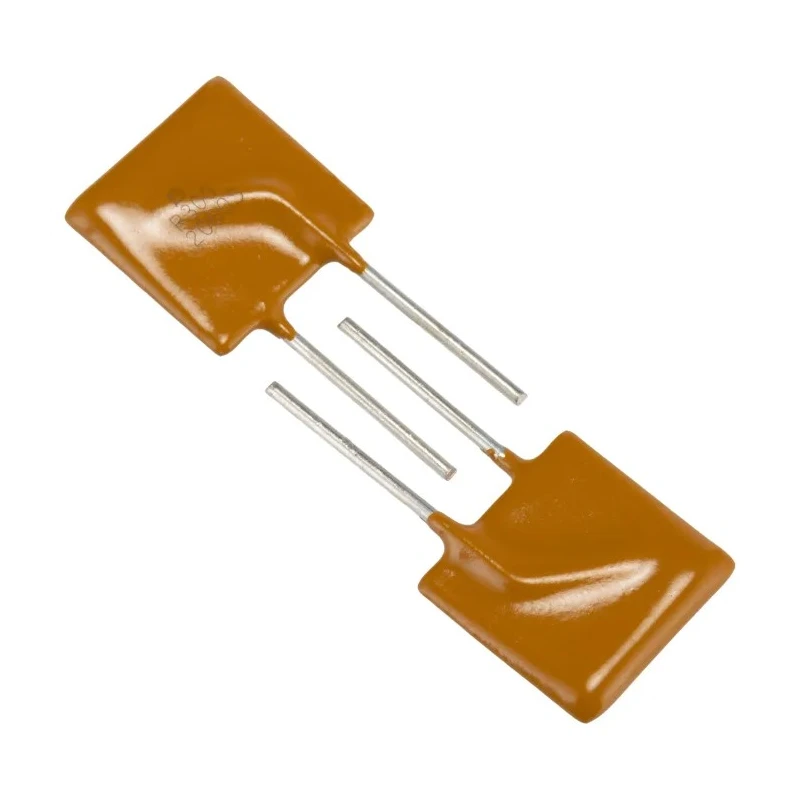

Bourns 3 A Resettable Fuse 30V Radial Leaded Device MF-R300
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 30V |
| Brand | Bourns |
| Height | 18.3mm |
| Length | 12mm |
| Model | MF-R300 |
| Width | 3mm |
| Current Rating | 40A |
| Series | MFR |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Trip Current | 6A |
| Power Dissipation | 2W |
| Standards/Approvals | UL, RoHS |
| Lead Diameter | 0.81mm |
| Time to Trip | 10.8s |
| Hold Current | 3A |
| Minimum Resistance | 0.02Ω |
| Maximum Resistance | 80mΩ |
| Lead Orientation | Radial |
Key Features
- Automatically resets thousands of times without maintenance.
- Compact size with length 12mm, height 18.3mm, and width 3mm.
- Designed for protection against excessive current in electronic circuits.
- Features a quick switch to high resistance during faults for safety.
- Suitable for security systems, power supplies, automotive and medical equipment.
- Has a trip current of 6A and hold current of 3A.
- Power dissipation rating of 2W enables efficient thermal management.
- Constructed with cured flame retardant epoxy polymer ensuring UL 94V-0 standard compliance.
Product Description
Bourns MF-R300 3 A Resettable Fuse is a radial leaded device rated for 30V and 3A hold current, designed to protect electrical and electronic circuits from overcurrent conditions. This resettable fuse automatically switches from a low resistance state to a high resistance state within 10.8 seconds when exposed to an overload or short circuit, enabling protection against electrical faults.
Constructed with cured flame retardant epoxy polymer material, it meets UL 94V-0 requirements ensuring high safety standards. The compact size of 12mm length, 18.3mm height, and 3mm width allows for space-efficient PCB applications.
This fuse is maintenance-free and capable of resetting itself thousands of times, eliminating the need for fuseholders or replacements. The device is UL and RoHS compliant and includes a lead diameter of 0.81mm with radial lead orientation to facilitate easy installation in PCB designs.
Commonly used in security systems, power supplies and transformers, automotive and medical equipment, instrumentation, computers, and audiovisual telecommunications, this fuse offers reliable and rapid protection with a trip current of 6A and a hold current of 3A. It operates within a temperature range of -40°C to 85°C and offers power dissipation of 2 watts.
Automatically resets itself thousands of times providing long service life. Compact dimensions support tight PCB layouts. Flame retardant materials enhance safety and durability. Radial lead design enables easy PCB mounting.
Complies with UL and RoHS standards ensuring quality and regulatory compliance. Offers dependable protection against short circuits and electrical overloads. Wide operating temperature range suitable for various industrial environments.
Suitable for diverse applications from automotive to medical instrumentation.
This Bourns resettable fuse MF-R300 is ideal for industrial, laboratory, electronic manufacturing, automotive, and HVAC applications requiring fast and reliable overcurrent protection. Browse more in Resettable Fuses category on EnvMart for related devices and accessories.
