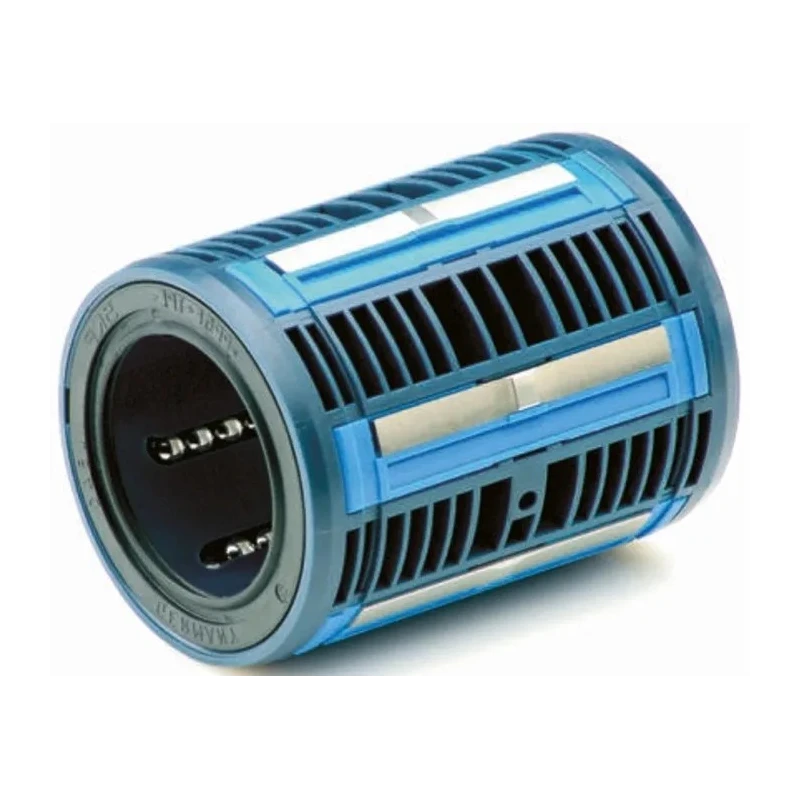

Ewellix Makers in Motion Steel Linear Bearing Shielded Closed Design 32mm Length LBCD12 D

Ewellix Makers in Motion LBCD12 D linear bearing is a high-quality steel bearing designed for precise linear motion applications. Featuring a shielded end type and closed closure, this bearing protects internal components from contamination and ensures reliable operation.

With a length of 32 mm and a base to bore centerline of 11 mm, the bearing fits seamlessly in systems requiring accurate shaft guidance. The steel material provides strength and durability, making it suitable for industrial environments.

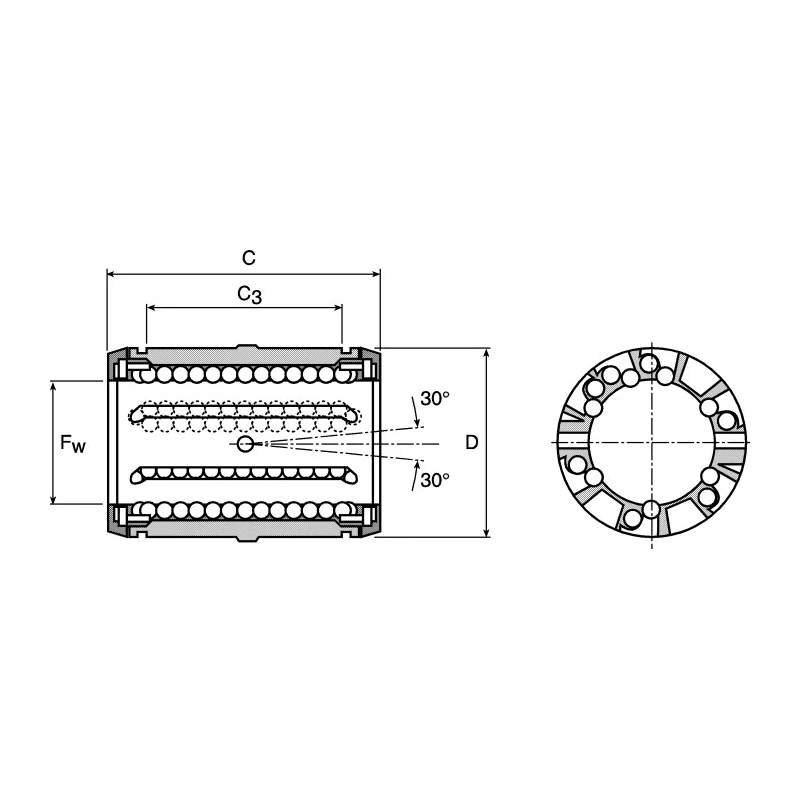

The bearing supports a dynamic load rating of 1080 N and a static load rating of 815 N, allowing it to handle substantial operational forces efficiently. The LBCD series features automatic self-alignment capability of up to ±30 angular minutes, which compensates for misalignments caused by shaft deflection or assembly tolerances. However, it cannot compensate for misalignments between drive shafts themselves.

This bearing's specialized outer contour of runner plates facilitates angled pivoting, improving flexibility in installations. Its pivotable cage has a reduced outer diameter, ensuring compatibility with housings and sealing discs centered to the drive shaft.

LBCD linear bearings must be axially secured in their assembly to maintain performance. They are widely used in industrial, laboratory, manufacturing, and automation settings, including XY positioning and precision linear motion systems.

Steel construction ensures durability and longevity. Shielded end type provides protection against contaminants. Closed closure type maintains internal cleanliness and performance. Dynamic load rating of 1080 N supports high operational loads.

Static load rating of 815 N ensures robust bearing stability. Base to bore centerline dimension of 11 mm for accurate alignment. Series LBCD design allows automatic self-alignment up to ±30 angular minutes. Enables compensation for shaft deflections and manufacturing inaccuracies.

Designed for use in precise linear motion systems and XY positioning. Manufactured in Germany maintaining high industrial standards. Explore the Mechanical Machinery & Spares category for more precision Linear Bearings and components at EnvMart.
