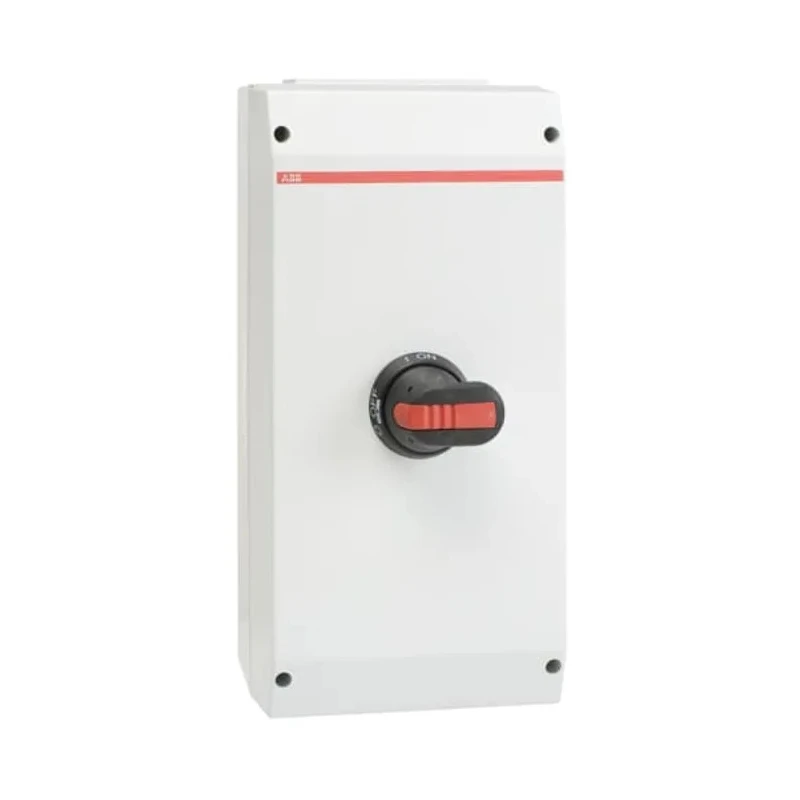

ABB 6-Pole Switch Disconnector IP65, 125A, 45 kW, Screw Clamp Terminals, Series OTP

Free Delivery in India | Lowest Global Shipping Charges

ABB 6-Pole Switch Disconnector IP65, 125A, 45 kW, Screw Clamp Terminals, Series OTP



Category Switch Disconnector Brand ABB Condition New

Specifications

Country of Origin	Finland
Brand	ABB
Length	400mm
Model	IP65
Depth	200mm
IP Rating	IP65
Width	140mm
Series	OTP
Minimum Operating Temperature	0°C
Switching Current	125A
Terminal type	Screw Clamp
Handle Colour	Black
Number of Poles	6
Standards/Approvals	IEC 60947-1-3
Switching AC Voltage	415V ac
Switching Power	45kW

Key Features

Rigid glass reinforced polycarbonate enclosure with UV protection and IP65 rating.
Padlock-compatible black handle allows multiple padlocks for safety.
Interlocked cover with bypass provisions for thermographic analysis.
Screw clamp terminals and fixed neutral and PE terminals for secure connectivity.
Supports auxiliary contacts and meets IEC 60947-1-3 standards for reliable switching.
Designed for 6 poles with a switching current of 125A and power of 45 kW.
Rated operational voltage of 750V and switching AC voltage of 415V AC.
Compact dimensions of 400mm length, 140mm width, and 200mm depth.

Product Description

ABB 1SCA022812R3350 6-Pole Switch Disconnector from the OTP series features a rugged, UV-protected glass reinforced polycarbonate enclosure with an IP65 rating, making it resistant to low-pressure water jets and suitable for both indoor and outdoor electrical installations. This robust device supports a switching current of 125A and a maximum switching power of 45 kW, effectively handling demanding electrical loads.

The switch is designed for a 5-wire system, incorporating fixed neutral and protective earth (PE) terminals. Its screw clamp terminal type ensures secure and reliable cable connections. The handle, colored black, is padlock-compatible, allowing up to three padlocks for heightened safety and lockout/tagout procedures. The interlocked cover enhances operational safety by preventing accidental access, though this interlock can be bypassed for thermography inspections.

Operational parameters include a rated operational voltage of 750V and an AC switching voltage of 415V. The device supports up to two mounted auxiliary contacts (2NO/2NC) for additional circuit control. The minimum operating temperature is 0°C, making it viable for a broad range of environments and industrial applications.

Dimensionally, the switch measures 400mm in length, 140mm in width, and 200mm in depth, facilitating installation in limited spaces. It complies with IEC 60947-1-3 standards but lacks hazardous area certification, indicating its standard industrial environment suitability.

Rigid glass reinforced polycarbonate enclosure with UV protection and IP65 rating. Padlock-compatible black handle allows multiple padlocks for safety. Interlocked cover with bypass provisions for thermographic analysis.

Screw clamp terminals and fixed neutral and PE terminals for secure connectivity. Supports auxiliary contacts and meets IEC 60947-1-3 standards for reliable switching.

This switch disconnector is ideal for industrial and commercial electrical installations requiring safe isolation and disconnection of circuits. Its robust design supports versatility across electrical automation, manufacturing, and control panel applications. Explore more Switch Disconnectors and industrial electrical products on EnvMart to meet your project requirements.
