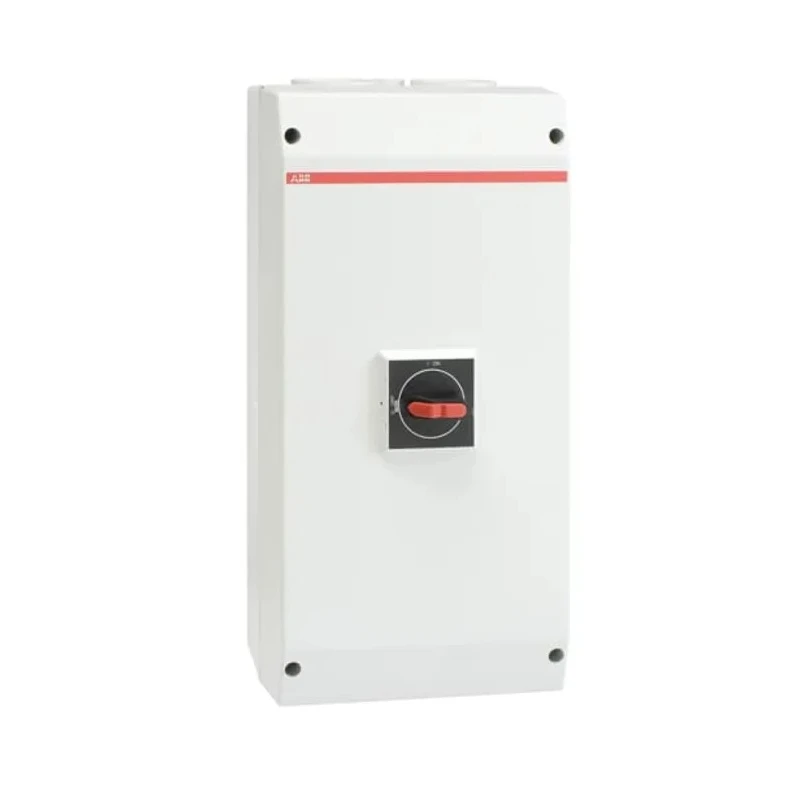

ABB 4-Pole Switch Disconnector IP65 100A 37 kW OTP Series 750V AC

Free Delivery in India | Lowest Global Shipping Charges

ABB 4-Pole Switch Disconnector IP65 100A 37 kW OTP Series 750V AC



Category Switch Disconnector Brand ABB Condition New

Specifications

Country of Origin	Finland
Brand	ABB
Length	140mm
Model	IP65
Depth	140mm
IP Rating	IP65
Width	200mm
Series	OTP
Minimum Operating Temperature	0°C
Switching Current	100A
Terminal type	Screw Clamp
Handle Colour	Black
Number of Poles	4
Standards/Approvals	-3 Standards, IEC 60947-1
Switching AC Voltage	750V ac
Switching Power	37kW

Key Features

Features a rigid glass reinforced polycarbonate enclosure that is UV protected for indoor and outdoor use.
Provides protection against low-pressure water jets with an IP65 rating.
Equipped with a black padlockable handle compatible with three padlocks for enhanced safety.
Supports 4 poles with screw clamp terminals and auxiliary contacts for operational versatility.
Designed for a 5-wire system including fixed neutral and PE terminals.
Rated operational voltage is 750V AC, suitable for various industrial electrical applications.
Cable entries are threaded with knock-out holes for multiple parallel and control cables.
The cover is interlocked but with a bypass option for thermographing and maintenance.

Product Description

ABB 1SCA022812R3010 4-Pole Switch Disconnector from the OTP series offers robust electrical switching capabilities with a switching current of 100A and power rating of 37 kW at 750V AC. It is designed to provide reliable disconnection in both indoor and outdoor environments, protected by a strong IP65 rated glass reinforced polycarbonate enclosure that resists UV and low-pressure water jets.

This switch disconnector supports a 5-wire system with fixed neutral and PE terminals and includes screw clamp terminals for secure wiring. Its black handle is padlockable, accommodating up to three padlocks to ensure safety and prevent unauthorized operations. The interlocked protective cover includes a bypass feature to facilitate thermographic inspections and maintenance without compromising safety.

Cable entries are threaded and feature knock-out holes to manage two parallel cables and one control cable from both the top and bottom, ensuring flexible installation options. The product dimensions are 140mm length, 200mm width, and 140mm depth, making it suitable for various industrial electrical panels requiring compact yet durable switch disconnectors.

Standards compliance includes IEC 60947-1, and the product is manufactured in Finland, guaranteeing high quality and reliability. The switch disconnector is ideal for industrial, electrical automation, manufacturing, HVAC, and commercial applications where robust isolation and safety are critical.

Rigid glass reinforced polycarbonate enclosure with UV protection. IP65 protection for indoor and outdoor use. Padlockable black handle for enhanced safety with 3 padlocks capacity. Screw clamp terminals with auxiliary contacts available.

Cable entry flexibility with threaded and knock-out holes. Interlocked cover with bypass option for thermographic testing. Compliant with IEC 60947-1 standards. Manufactured in Finland under new product condition. Compact dimensions suitable for multiple industrial applications.
