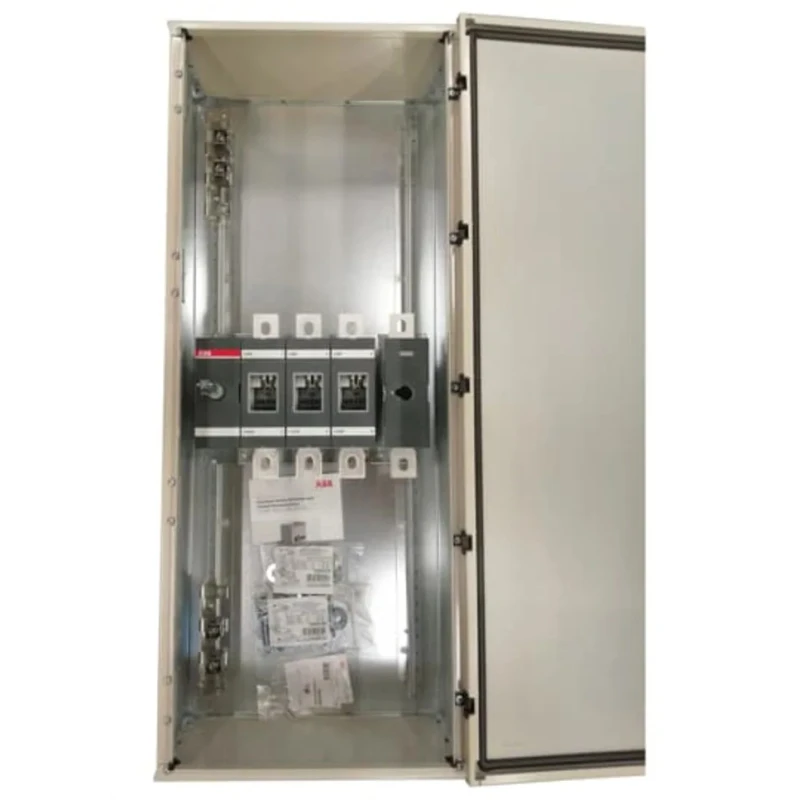

ABB 3-Pole Switch Disconnector IP65, 570A, 560 kW, Screw Clamp Terminal, Padlock Compatible OT Series IP65

ABB IP65 3-Pole Switch Disconnector OT Series is a robust electrical isolation device designed for industrial and commercial electrical systems. With a switching current of 570 amps and power rating of 560 kW, it ensures reliable disconnection under heavy-duty operational conditions. The switch features a black handle that is padlock compatible to support secure locking mechanisms, enhancing safety during maintenance.

Enclosed within a galvanised steel housing with polyester coating, the disconnector is rated IP65 to protect against dust ingress and powerful water jets, making it ideal for both indoor and outdoor installations. Its enclosure integrates a gas pressure relief function for internal arc containment, safeguarding users and equipment from electrical faults.

The device supports auxiliary contacts, allowing up to two NO (normally open) and two NC (normally closed) contacts to aid in circuit control and signalling. It is compatible with various cable entry types including blank, ring-flange, and C-flange (FL21), facilitating flexible cabling configurations such as top or bottom entry.

This switch disconnector also features a door earthing mechanism through hinges and an interlock function that can be bypassed for thermographing. It operates reliably at a minimum temperature of 0°C and meets rigorous IEC 60947-1 standards.

Dimensionally, it measures 400mm in length, 1 meter in width, and 230mm in depth, ensuring it fits well within electrical enclosures while offering easy installation and maintenance access.

Applications for this switch disconnector include electrical isolation in industrial plants, commercial power distribution networks, manufacturing facilities, HVAC systems, and automation panels requiring high safety and reliability.

The device features a black handle and is padlock compatible for enhanced safety. IP65 rated enclosure ensures protection against dust and water ingress, suitable for indoor and outdoor use. Constructed with galvanised steel and polyester coating for UV resistance and corrosion protection.

Supports auxiliary contacts with up to 2 NO/2 NC mounted for circuit control. Cable entry supports various flange types and configurations to facilitate flexible installation. Includes inbuilt gas pressure relief for internal arc protection and safety locking interlock functions.

Complies with IEC 60947-1 industry standards for switch disconnectors. Rated operational voltage of 1000V AC with a minimum operating temperature of 0°C. Compact dimensions with length 400mm, width 1m, and depth 230mm optimize space usage in electrical panels.
