ABB 3-Pole Screw Mount Switch Disconnector IP65, 0A, Yellow Red Handle OTR Series

Free Delivery in India | Lowest Global Shipping Charges

ABB 3-Pole Screw Mount Switch Disconnector IP65, 0A, Yellow Red Handle OTR Series



Category Switch Disconnector Brand ABB Condition New

Specifications

Country of Origin	India
Brand	ABB
Length	135mm
Model	IP65
Depth	135mm
IP Rating	IP65
Width	200mm
Mount Type	Screw
Series	OTR
Minimum Operating Temperature	0°C
Switching Current	0A
Terminal type	Screw Clamp
Handle Colour	Yellow, Red
Number of Poles	3
Standards/Approvals	RoHS

Key Features

The enclosure is made from rigid stainless steel, class AISI304, suitable for indoor and outdoor use.
Hinged door includes a cover interlock preventing door opening when the switch is on.
Yellow and red handle colors enhance visibility and safety.
Includes N- and PE terminals with screw clamp terminal type for secure connections.
Rated for operational voltage up to 750V with 3 poles and auxiliary contact availability.
Interlock function can be defeated for thermographing purposes.
Complies with RoHS standards ensuring environmental safety.
Maximum mounted auxiliary contacts are 1NO/2NC for flexible switching operations.

Product Description

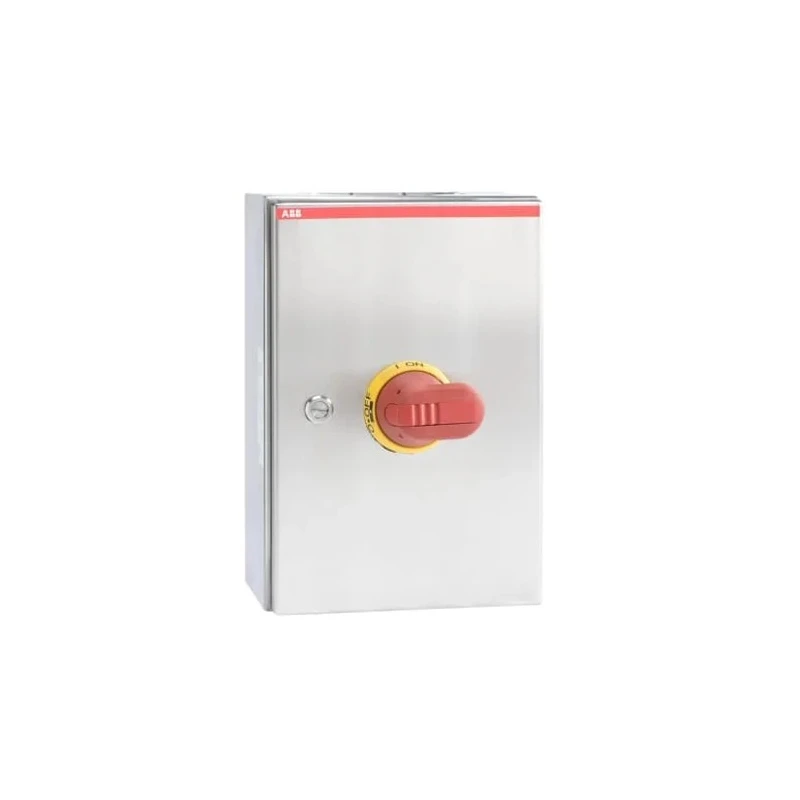

ABB 1SCA022569R7590 OTR100BA3U is a 3-Pole Screw Mount Switch Disconnector from the OTR series, designed to provide reliable isolation and switching for electrical circuits. Featuring an IP65 rating, this device is housed within a robust enclosure made of rigid stainless steel (AISI304), ensuring durability in both indoor and outdoor industrial environments.

The enclosure features a hinged door equipped with a safety interlock that prevents the door from being opened when the switch is in the ON position, enhancing operational safety. This interlock can be overridden specifically for thermographing during maintenance or inspection.

The switch disconnector has a yellow and red handle designed for easy identification and operation. It offers rated operational voltage of 750V with a switching current of 0A and includes 3 poles with screw clamp terminals for reliable electrical connections. Auxiliary contacts are available, supporting a maximum of 1NO/2NC contacts, providing added flexibility for control circuits.

Dimensions are precise at 135mm length, 200mm width, and 135mm depth, allowing straightforward integration into existing switchgear assemblies. The device complies with RoHS directives, reflecting adherence to environmental and safety standards.

The enclosure is industrial-grade stainless steel for rugged use. Interlocked hinged door for operational safety. Suitable for outdoor and indoor applications. Incorporates screw clamp terminals and auxiliary contacts. Rated operational voltage of 750V with 3 poles.

Compact dimensions with user-friendly handle colors. Meets RoHS environmental and safety standards. This switch disconnector is ideal for use in electrical automation, industrial manufacturing controls, HVAC systems, and commercial electrical installations.
