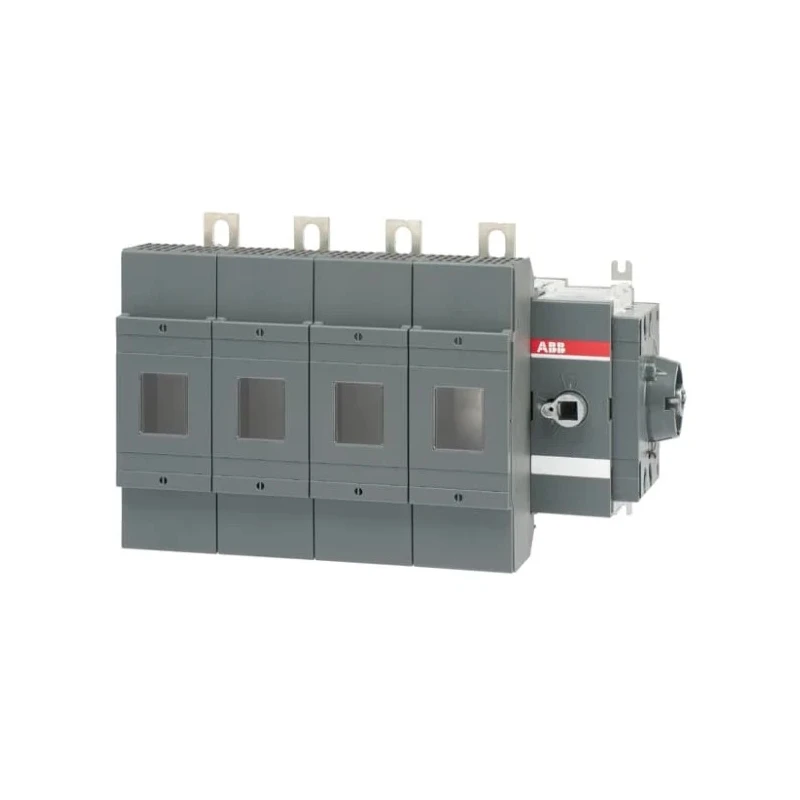

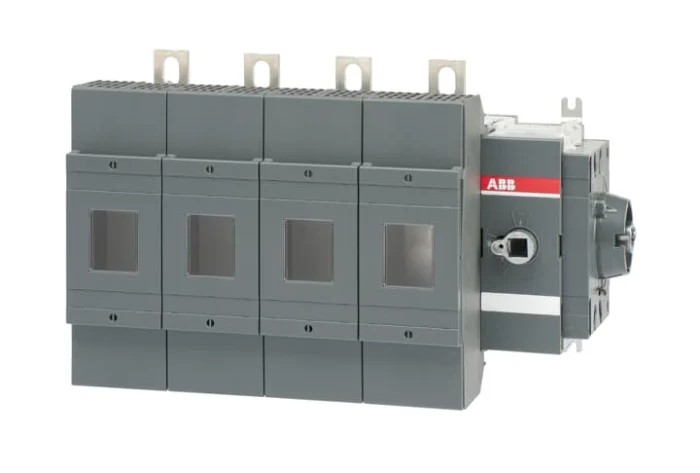

ABB Enclosed 4-Pole Fuse Switch Disconnector 400 A 690 V AC Series 1SCA 400 kW 1SCA022871R0560

ABB 1SCA022871R0560 is an enclosed 4-pole fuse switch disconnector suitable for industrial electrical installations requiring a rated current of 400 A and switching voltage up to 690 V AC. This fuse switch disconnector is base mounted and operates using a side operated mechanism, following British Standard fuse specifications with mechanical fuse sizes B1-B4.

The device features lug-type terminals with a width of 25 mm, facilitating secure electrical connections. It includes a fourth pole located on the right side, which is switched via a solid link, enhancing operational safety and functionality. The pollution degree is rated at 3, making it well-suited for industrial environments with moderate pollution levels.

While the disconnector itself is enclosed to provide protection and durability, the handle and shaft required for operation are not included in this product and must be sourced separately. The switching operating mechanism is fixed at position 40 on the right side, providing reliable manual control.

This switch disconnector complies with RoHS standards and is manufactured in Finland, ensuring adherence to international quality and environmental standards. It supports switching power up to 400 kW, suitable for heavy-duty industrial and commercial electrical power distribution systems.

Typical applications include power distribution boards, motor control centers, and industrial switchgear assemblies where manual disconnection and fuse protection are required. The modular design allows integration with other ABB series 1SCA electrical components.

Features a British Standard fuse system with mechanical fuse sizes B1-B4. Designed with lug-type terminals measuring 25 mm in width. Includes a fourth pole positioned on the right side with a solid link switch type. Operates using side operated mode with switching mechanism set to position 40 on the right side.

Pollution degree rating of 3 for reliable operation in harsh environments. Enclosed design ensures safety and durability in electrical installations. Handle and shaft are not included and need to be procured separately. Explore more ABB Fuse Switch Disconnectors in our Electronics & Electricals category for reliable and safe power distribution solutions.
