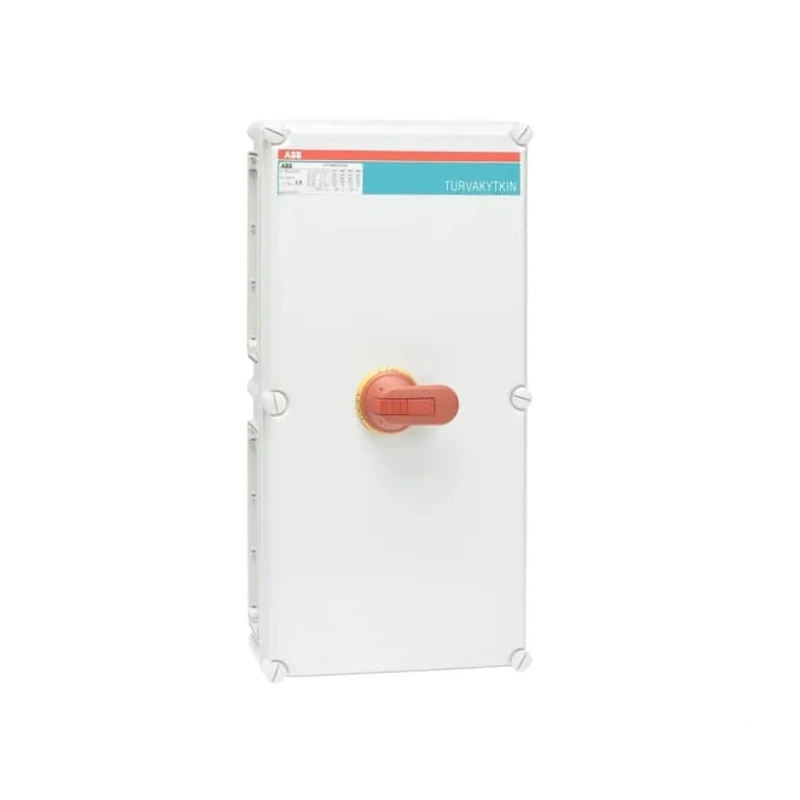

ABB 3-Pole Switch Disconnector OT Series IP65 250A 200 kW, Red Yellow Handle

Free Delivery in India | Lowest Global Shipping Charges

ABB 3-Pole Switch Disconnector OT Series IP65 250A 200 kW, Red Yellow Handle



Category Switch Disconnector Brand ABB Condition New

Specifications

Country of Origin	Finland
Brand	ABB
Length	280mm
Model	IP65
Depth	130mm
IP Rating	IP65
Width	560mm
Series	OT
Minimum Operating Temperature	0°C
Switching Current	250A
Terminal type	Screw Clamp
Handle Colour	Red, Yellow
Number of Poles	3
Standards/Approvals	IEC 60947-1
Switching AC Voltage	415V ac
Switching Power	200kW

Key Features

The enclosure is made of rigid glass reinforced polycarbonate and is UV protected.
Designed for outdoor and indoor use with protection against low-pressure water jets (IP65).
Features a padlockable red and yellow handle suitable for three padlocks.
Includes screw clamp terminal type and is compatible with auxiliary contacts (2 NO, 2 NC max).
Rated switching current is 250A with switching AC voltage of 415V AC.
Complies with IEC 60947-1 standards and includes PE terminals.
Operates safely with a minimum temperature of 0°C and allows interlocking cover defeat.
Suitable for electrical isolation in industrial, manufacturing, and automation environments.

Product Description

ABB 1SCA022278R1930 3-Pole Switch Disconnector OT Series offers robust, reliable electrical isolation with a 250A switching current and 200 kW switching power. Housed in a rigid glass reinforced polycarbonate enclosure, this device features UV protection and IP65 ingress protection, ensuring suitability for both indoor and outdoor industrial applications.

The switch disconnector is equipped with a dual-color red and yellow padlockable handle designed to accommodate up to three padlocks, enhancing safety during maintenance. The enclosure supports easy cable ingress from both top and bottom via II-flange knock-out entries. Screw clamp terminals provide secure connections, and the unit supports up to two normally open and two normally closed auxiliary contacts for additional functionality.

Measuring 560mm (width) x 280mm (length) x 130mm (depth), the disconnector complies with IEC 60947-1 standards. It operates safely with a minimum temperature rating of 0°C, suitable for various industrial environments. The interlocked cover can be defeated if necessary, allowing flexibility in operation. PE terminals are included for grounding assurance.

This switch disconnector is ideal for electrical isolation tasks in construction, manufacturing, automation, and other industrial sectors requiring safety and durability. The enclosure is UV protected and IP65 rated for dust and water resistance.

Padlockable handle enhances safety during maintenance operations. Screw clamp terminals ensure reliable electrical connections. Auxiliary contacts provide expanded operational control. IEC 60947-1 compliance guarantees international standards adherence.

Compact dimensions make it suitable for various panel sizes. Interlocking cover prevents accidental operation but can be bypassed. Robust polycarbonate construction ensures long service life in harsh environments. Explore more electrical Switch Disconnectors and industrial automation components at EnvMart to find solutions tailored to your operational requirements.
