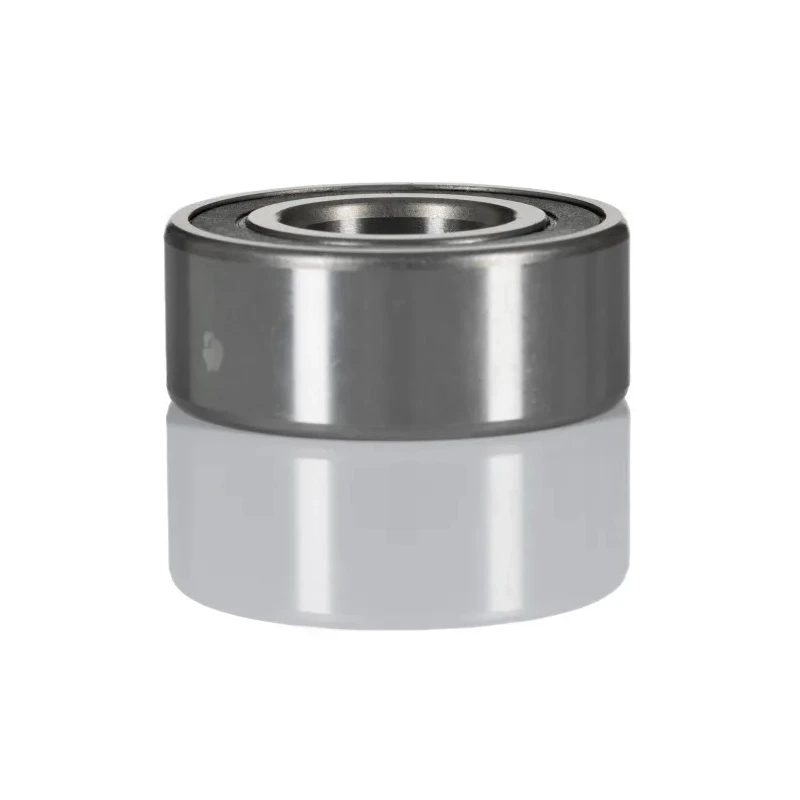

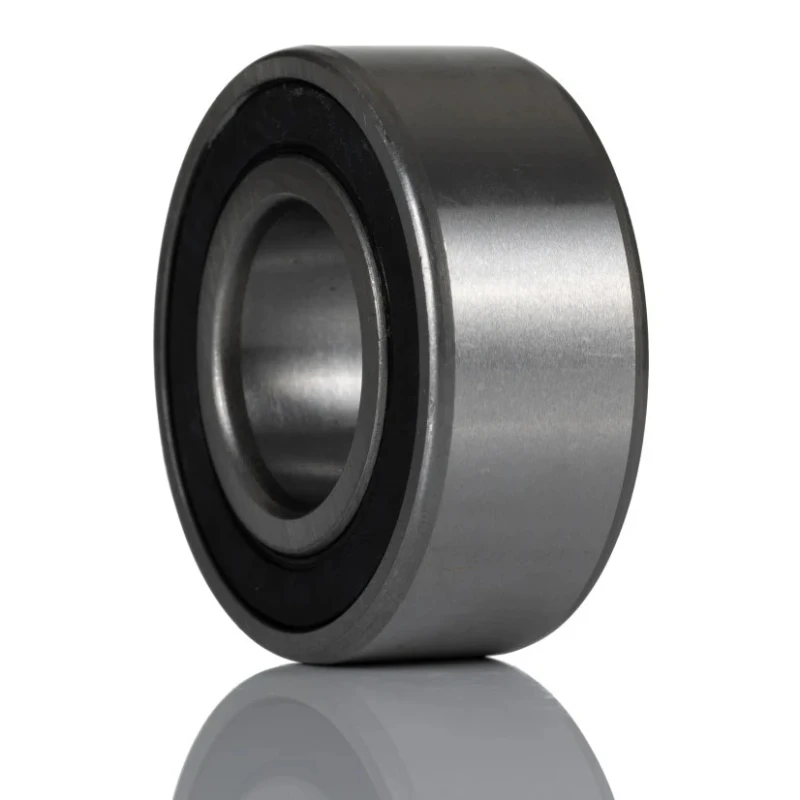

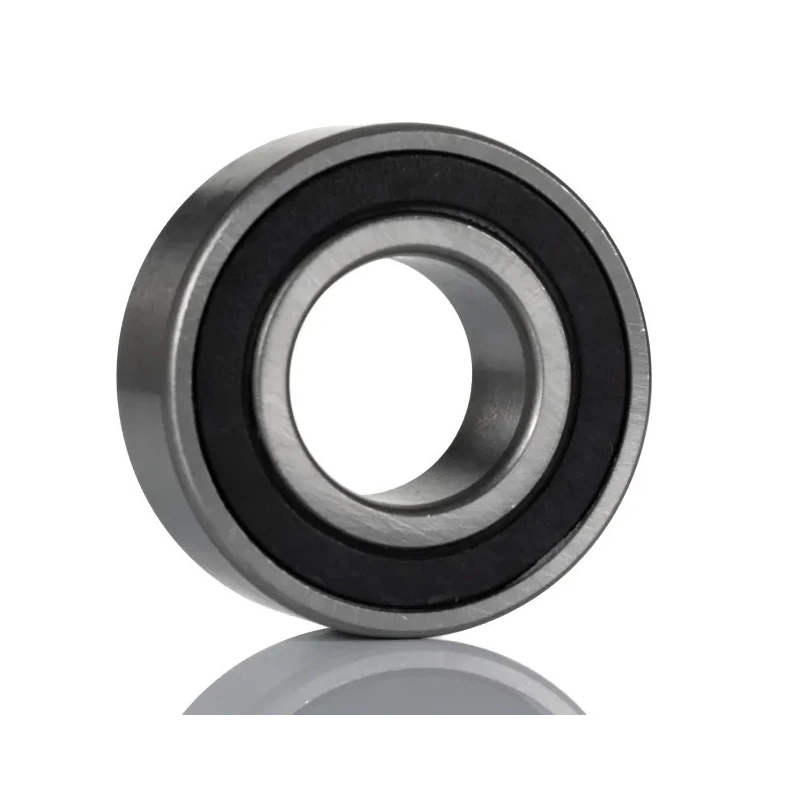

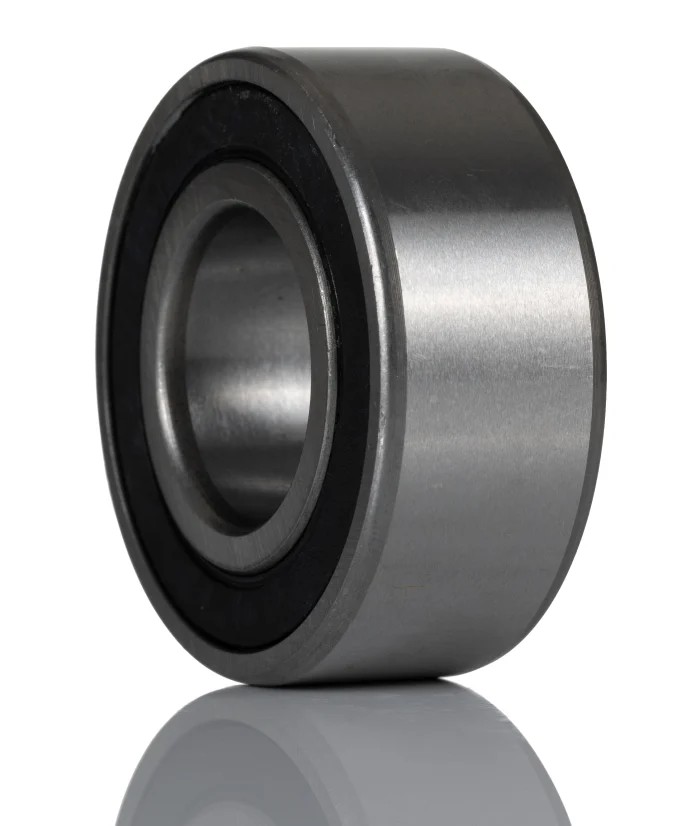

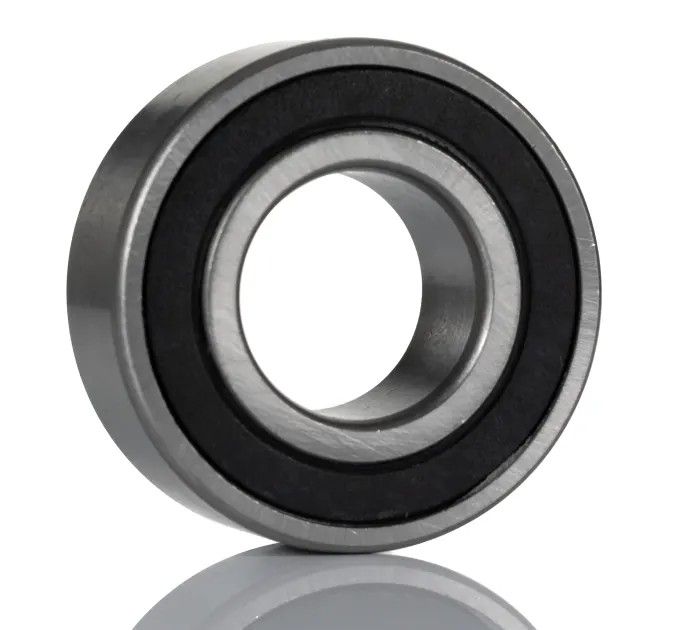

RS PRO Double Row Angular Contact Ball Bearing 20 mm ID, 52 mm OD, 22.2 mm Race Width, Steel Cage and Balls 3304A-2RS

RS PRO 3304A-2RS Double Row Angular Contact Ball Bearing is engineered to provide exceptional performance for industrial rotary applications requiring high running accuracy and the capability to handle both radial and axial loads.

This bearing features a 20 mm inside diameter, 52 mm outside diameter, and 22.2 mm race width, constructed entirely from steel including balls, race, and cage, offering durability under demanding mechanical conditions.

The sealed end type design prevents entry of contaminants and preserves vital lubrication, enhancing the bearing's operational life. The double row angular contact configuration incorporates a 30° contact angle per row, which allows support of axial loads in both directions and improves structural rigidity.

With a limiting speed of 9000 rpm, this bearing is well suited for applications with medium to high rotational speeds. It boasts a static load rating of 14.31 kN and dynamic load rating of 23.13 kN, making it reliable for heavy-duty usage.

20 mm inside diameter and 52 mm outside diameter for diverse mounting options. Steel cage and steel balls for robust strength and longevity. Sealed ends for contamination protection and lubrication retention. Double row angular contact design with 30° contact angle for load versatility.

High limiting speed capability up to 9000 rpm for efficient operation. High static and dynamic load ratings suitable for industrial stresses. Parallel bore and plain race type for compatibility with standard housings. Applicable in agriculture, automotive, industrial manufacturing, and materials handling sectors.

Originating from China, the RS PRO 3304A-2RS bearing meets rigorous manufacturing standards to ensure excellent quality and dependable performance. This component is essential for maintenance and machinery where precision and load capacity are critical.
