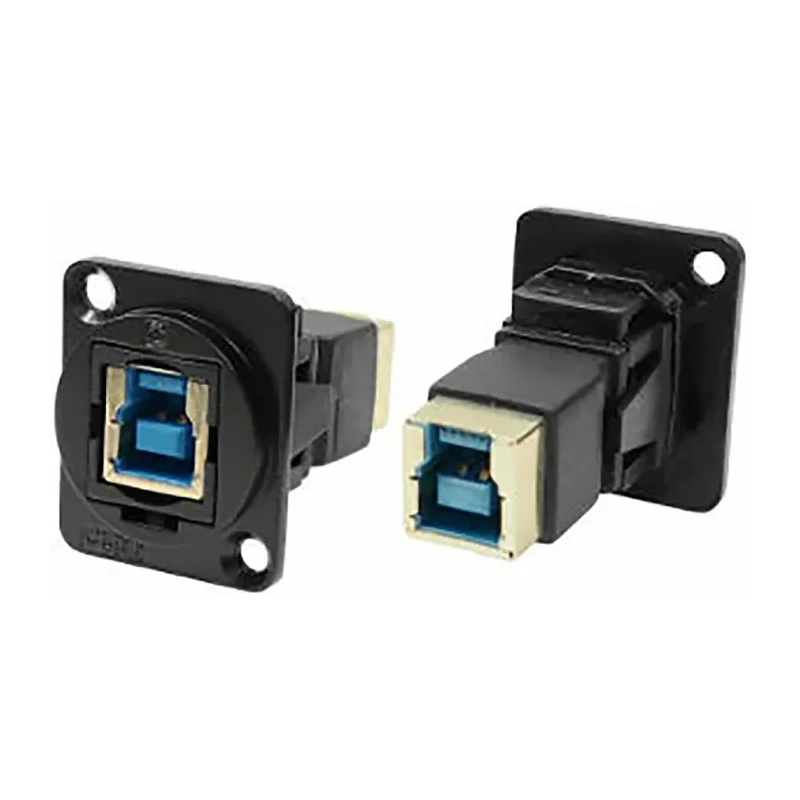

RS PRO Feedthrough USB Connector Panel Mount Female/Female 1 Port USB Type B to B 30V AC 1.8A Screw Termination USB 3.0 IP40

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Feedthrough USB Connector Panel Mount Female/Female 1 Port USB Type B to B 30V AC 1.8A Screw Termination USB 3.0 IP40

Name: RS PRO Feedthrough USB Connector Panel Mount Female/Female 1 Port USB Type B to B 30V AC 1.8A Screw Termination USB 3.0 IP40
Brand: RS PRO
SKU: 422154
Price: 18.05 USD
Availability: InStock



Category USB Connector Brand RS PRO Condition New

Specifications

Country of Origin	India
Voltage	30V ac
Brand	RS PRO
Orientation	Straight
Current	1.8A
Model	IP40
IP Rating	IP40
Mount Type	Panel
Contact Material	Gold
Series	RS PRO
Number Of Ports	1
Termination Type	Screw
Maximum Operating Temperature	50°C
Minimum Operating Temperature	-20°C
USB Type	USB Type B to B
Connector Gender	Female/Female
USB Specification	USB 3.0

Key Features

Designed for robust panel mounting with a straight orientation and screw termination.
Features gold-plated contacts for excellent conductivity and corrosion resistance.
IP40 rated enclosure suitable for protected indoor electronics and industrial use.
Operates reliably in a temperature range from -20°C to 50°C.
Compatible with Ø24mm cutout panels commonly used in XLR 1U rack setups.
Enables easy integration in audio, video and computing applications requiring USB B connections.
Quick assembly with no soldering or punch termination required.
Ideal for industrial, entertainment, and manufacturing environments demanding secure USB connectivity.

Product Description

RS PRO IP40 feedthrough USB connector model IP40 is a high-quality panel mount connector designed for USB Type B to B connections supporting USB 3.0 specification, operating at 30V AC and current rating of 1.8A. This feedthrough connector is engineered with a robust straight metal frame finished in black and gold plated contacts, ensuring excellent electrical performance and longevity.

Specifically designed to fit into Ø24mm cutout panels, it is ideal for installation on 1U rack panels commonly found in audio, video, and computing hardware applications. The panel mount screw termination enables quick and secure installation without requiring complex soldering or punch termination, aiding fast deployment in various industrial and entertainment applications.

The IP40 rated enclosure protects the connector from solid objects greater than 1mm but is intended for indoor use where minimal dust and moisture exposure occurs. Operating temperature ranges from -20°C to 50°C ensure reliability under typical conditions found in manufacturing, laboratory, water treatment, and other commercial environments.

This RS PRO feedthrough USB connector is an excellent choice for connecting devices such as computers, hard drives, optical drives, and printers where USB Type B interface is required through a rack panel. Its durable metal construction and gold contacts enhance conductivity and resistance to wear over time.

Robust and high-quality panel mount feedthrough USB Connector. Gold plating on contacts for corrosion resistance and optimal connectivity. Designed for mounting on Ø24mm cutout XLR 1U rack panels. Supports USB 3.0 data transfer speeds with 1.8A current capacity.

No soldering required; uses screw termination for ease of assembly. IP40 rated for solid object protection in indoor environments. Operational temperature range from -20°C to 50°C suitable for industrial use. Suited for applications in audio, entertainment, industrial, and commercial settings.

Explore the RS PRO range at EnvMart for trusted connectors and industrial electronic components designed to meet demanding standards.
