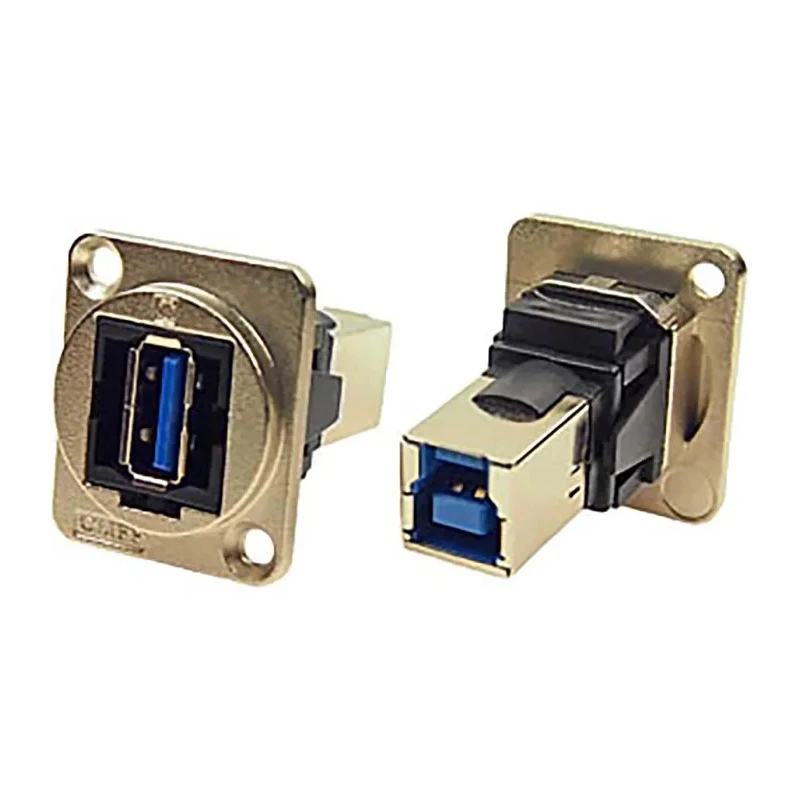

RS PRO Straight Panel Female 1 Port USB Type A to B Feedthrough USB Connector USB 3.0 203-5577

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Straight Panel Female 1 Port USB Type A to B Feedthrough USB Connector USB 3.0 203-5577

Name: RS PRO Straight Panel Female 1 Port USB Type A to B Feedthrough USB Connector USB 3.0 203-5577
Brand: RS PRO
SKU: 422153
Price: 18.95 USD
Availability: InStock



Category USB Connector Brand RS PRO Condition New

Specifications

Country of Origin	India
Voltage	30V ac
Brand	RS PRO
Orientation	Straight
Current	1.8A
Model	203-5577
IP Rating	IP40
Mount Type	Panel
Contact Material	Gold
Series	RS PRO
Number Of Ports	1
Termination Type	Plug-In
Maximum Operating Temperature	50°C
Minimum Operating Temperature	-20°C
USB Type	USB Type A to B
Connector Gender	Female
USB Specification	USB 3.0

Key Features

Designed for panel mounting with a low rear profile for space-constrained applications.
Supports a maximum current of 1.8A and voltage rating of 30V AC.
Features gold-plated contacts ensuring excellent conductivity and corrosion resistance.
Rated for IP40 protection against solid objects greater than 1mm.
Operates reliably within temperatures ranging from -20°C to 50°C.
Termination type is plug-in for quick and easy installation without soldering.
Compatible with standard M3 screw mounting and Ø24mm cutout panels.
Suitable for use in industrial and entertainment settings requiring USB connections through 1U rack panels.

Product Description

RS PRO 203-5577 is a high-quality feedthrough USB Connector designed for panel mounting in industrial and entertainment setups. This USB 3.0 compliant connector provides a straight, female 1-port USB Type A to B interface with gold-plated contacts ensuring reliable high-speed data transmission and durability.

Its robust metal frame fits standard 24mm diameter cutouts used in 1U XLR-sized rack panels, enabling versatile I/O configurations with minimal panel space usage due to its low rear profile. The plug-in termination eliminates the need for soldering or punch termination, facilitating fast and simple installation.

Rated for IP40 protection, this connector offers resistance to solid objects larger than 1mm, making it suitable for controlled environments. It supports a maximum current of 1.8A and voltage of 30V AC, operating reliably between -20°C and 50°C. The RS PRO series ensures high performance through rigorous quality testing, trusted by engineers globally.

Typical applications include USB connectivity for laptops, computers, hard drives, optical drives, and printers via rack panels in industrial and entertainment contexts. It is compatible with standard M3 screws, emphasizing ease of assembly and maintenance.

Designed for straightforward and robust panel mounting. Gold-plated contacts for excellent performance and durability. USB 3.0 compliant for high-speed data transfer. Low rear profile ideal for compact rack setups. IP40 rated for protection against solid foreign objects.

Plug-in termination for fast installation. Operates within a temperature range of -20°C to 50°C. Supports 1.8A current and 30V AC voltage ratings. Explore the wide range of RS PRO connectors and industrial components available for enhancing your electronics projects and professional installations on EnvMart.
