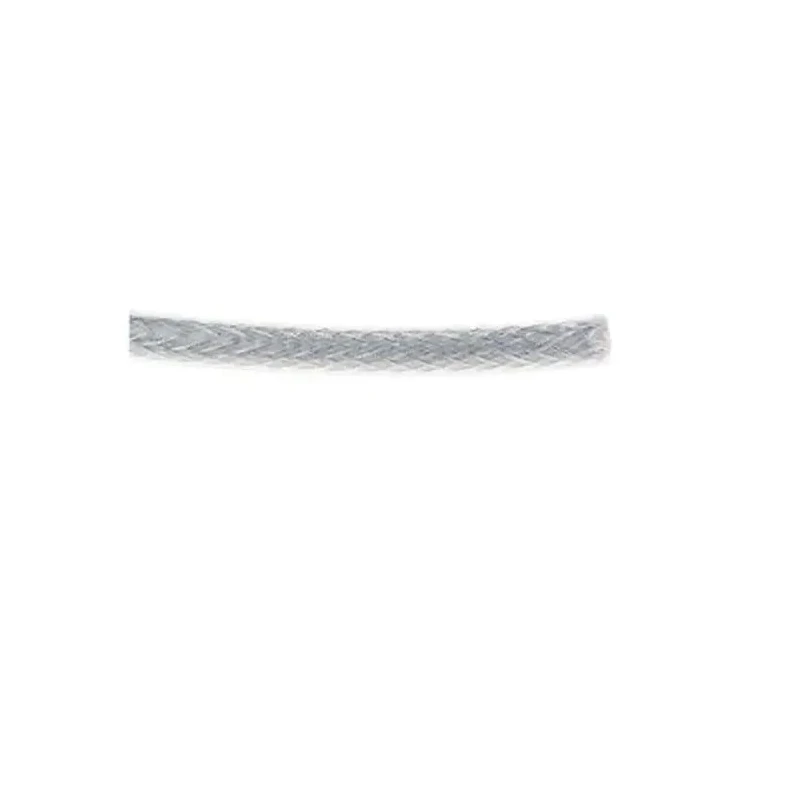

RS PRO 7 Core SY Control Cable 1.5mm² Screened 50m Transparent Polyvinyl Chloride Sheath 196-4679
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | RS PRO |
| Model | 196-4679 |
| Cable Length | 50m |
| Series | RS PRO |
| Maximum Operating Temperature | 70°C |
| Number Of Cores | 7 |
| Conductor Material | Annealed Copper |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | BS EN 50525 |
| Jacket Colour | Transparent |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Number of Strands | 30 |
| Core Strands | 30 x 0.25mm |
| Size of Strands | 0.25mm |
| Cable CSA | 1.5mm² |
Key Features
- This cable features seven cores with a 1.5mm² cross-sectional area each.
- Annealed copper conductors ensure enhanced durability and performance.
- The cable is screened with galvanised steel wire braid to protect against electromagnetic interference.
- The transparent polyvinyl chloride outer sheath provides resistance to oils, acids, and heat.
- The cable is suitable for operation in internal dry, damp, or wet environments with temperature range from -15°C to 70°C.
- Its stranded conductor type with 30 strands of 0.25mm diameter allows excellent flexibility.
- Complies with BS EN 50525 standards for industrial cabling.
- The cable length is 50 meters, with an outer diameter of 13mm.
Product Description
RS PRO 196-4679 is a high-quality seven-core SY control cable featuring a 1.5mm² cross-sectional area per core and a length of 50 meters. Designed for demanding industrial and electrical environments, this cable incorporates annealed copper conductors for improved durability and performance. The galvanised steel wire braid screening provides excellent protection against electromagnetic interference and mechanical damage, ensuring reliable signal integrity in control and automation systems.
The transparent polyvinyl chloride sheath offers robust protection against oils, acids, and elevated temperatures up to 70°C, making the cable suitable for installation in dry, damp, or wet indoor environments. Its stranded conductor makeup consisting of 30 strands of 0.25mm diameter enhances flexibility for easy routing and installation.
This control cable complies with BS EN 50525 standards, meeting rigorous quality and safety requirements. With a voltage rating of 300/500 V, it is suitable for a wide range of industrial automation, manufacturing, HVAC, and water treatment applications.
Key features include armoured construction, multicore cable configuration, and a minimum bend radius of six times the cable diameter for safe operational use. The cable's transparent jacket also allows visual inspection while maintaining protective barrier functions. Its robust design ensures longevity and dependable electrical performance in various commercial and industrial settings.
Seven cores with 1.5mm² cross-sectional area each. Annealed copper conductor for durable performance. Galvanised steel wire braid screening for EMI protection. Transparent polyvinyl chloride sheath resistant to oils and acids.
Suitable for internal dry, damp, or wet environments. Stranded conductor type with 30 strands of 0.25mm diameter. Complies with BS EN 50525 standards. Voltage rating of 300/500 V for control applications. Armoured cable designed for industrial automation and electrical use.
This RS PRO Control Cable is ideal for integration into industrial automation, manufacturing processes, HVAC systems, and electrical power distribution systems needing robust, flexible, and screened multicore cables. Browse the Electronics & Electricals category for more high-quality wires and cables at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
Each core in this control cable has a cross-sectional area of 1.5mm².
The maximum operating temperature for this cable is 70°C.
This control cable features seven cores.
The conductors in this model are made of annealed copper.
This cable is screened with a galvanised steel wire braid to protect against electromagnetic interference.
The voltage rating of this control cable is 300/500 V.
The length of this control cable is 50 meters.
The outer diameter of this cable is 13mm.
The minimum bend radius for this cable is six times the cable diameter.
This cable is suitable for operation in internal dry, damp, or wet environments.
This control cable complies with BS EN 50525 standards.
Each core consists of 30 strands of 0.25mm diameter.
