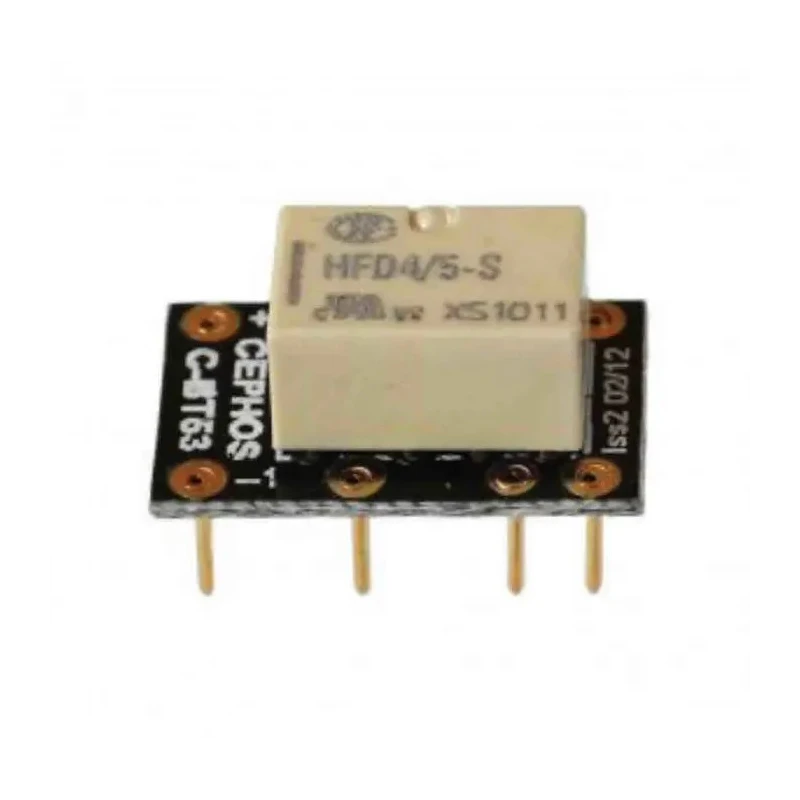

RS PRO PCB Signal Relay, 5V dc Coil, 3A Switching Current, DPDT Contact Configuration Model 193-5852

Free Delivery in India | Lowest Global Shipping Charges

RS PRO PCB Signal Relay, 5V dc Coil, 3A Switching Current, DPDT Contact Configuration Model 193-5852

Name: RS PRO PCB Signal Relay, 5V dc Coil, 3A Switching Current, DPDT Contact Configuration Model 193-5852
Brand: RS PRO
SKU: 421744
Price: 80.2 USD
Availability: InStock



Category Signal Relay Brand RS PRO Condition New

Specifications

Country of Origin	United Kingdom
Brand	RS PRO
Height	9.9mm
Length	15mm
Model	193-5852
Width	9.9mm
Mount Type	PCB
Contact Material	Gold Plated
Series	RS PRO
Maximum Operating Temperature	70°C
Contact Configuration	DPDT
Minimum Operating Temperature	-40°C
Switching Current	3A
Terminal type	Solder
Contact Resistance	100mΩ
Standards/Approvals	RoHS
Coil Resistance	360Ω
Coil Voltage	5V dc
Switching DC Voltage	220V dc
Switching AC Voltage	250V ac
Coil Power	400mW
RS PRO PCB Mount Non-Latching Relay, 5V dc Coil, 2A Switching Current, DPDTBrand	RS PRO

Key Features

The relay supports a switching AC voltage of 250V ac and a switching DC voltage of 220V dc.
It features a coil power consumption of 400mW ensuring energy efficiency.
The contact material is gold plated for enhanced conductivity and durability.
Operating temperatures range from -40°C to 70°C suitable for various environmental conditions.
Compact size with dimensions 15mm length, 9.9mm width, and 9.9mm height to fit PCB designs.
The relay uses solder terminal types for secure electrical connections.
The coil resistance is 360Ω, allowing consistent coil performance.
Contact resistance is low at 100 milliohms guaranteeing low signal loss.

Product Description

RS PRO 193-5852 is a high-quality PCB Signal Relay designed with a 5V dc coil and capable of handling a 3A switching current within a double pole double throw (DPDT) contact configuration.

This relay is engineered for demanding electrical, automation, and signal conditioning applications where reliable switching and small footprint are critical.

Its compact dimensions (15mm length, 9.9mm width, and 9.9mm height) allow easy integration into printed circuit boards. The gold plated contacts ensure superior conductivity and resistance to corrosion over its operational life.

The coil power of 400mW offers low energy consumption while maintaining efficient switching ability, making it suitable for modern low-power designs.

The product supports both AC and DC switching voltages up to 250V ac and 220V dc respectively and is designed to operate reliably across a temperature range of -40°C to 70°C, accommodating varied industrial environments.

Its solder-type terminals provide strong electrical and mechanical connections to the PCB, ensuring long-term durability. RS PRO 193-5852 relay serves as a direct replacement for obsolete models such as Panasonic DF2, Omron G5A-234P, and Fujitsu FBR46ND, facilitating easy upgrades and maintenance.

The relay supports switching AC voltage of 250V ac and DC voltage of 220V dc. Coil voltage is rated at 5V dc with a coil resistance of 360Ω. Contact resistance is minimal at 100mΩ, supporting high signal integrity. RoHS compliant, meeting environmental directives for electronic components.

Manufactured in the United Kingdom, guaranteeing robust quality control.

This PCB signal relay is suitable for various industrial automation, control panels, signal conditioning, and electronic circuit board applications requiring reliable and efficient switching performance.
