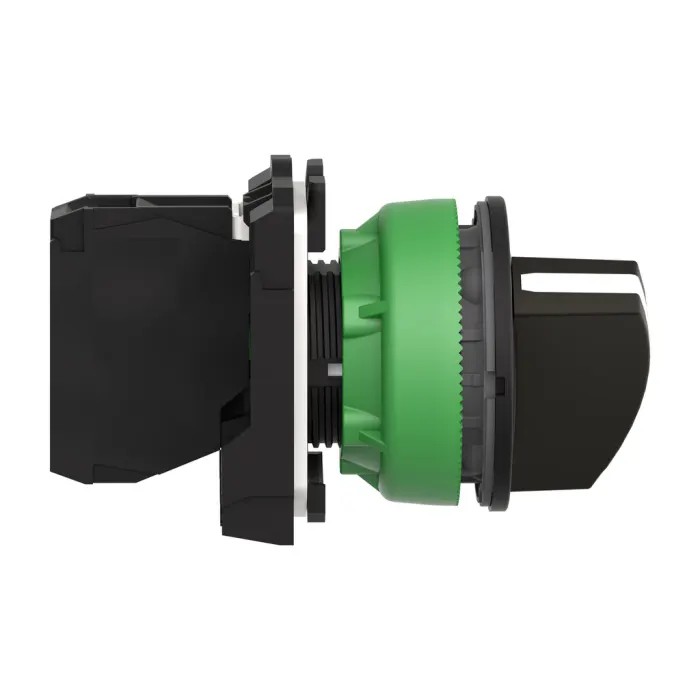

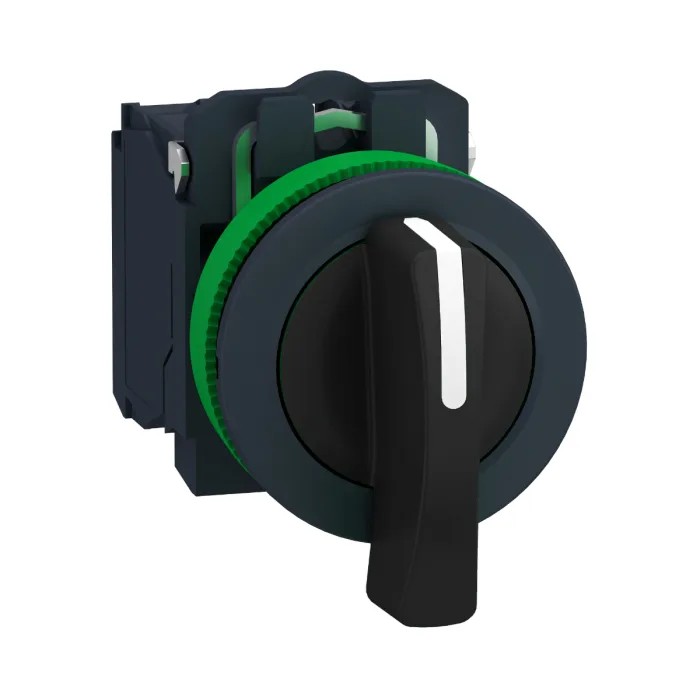

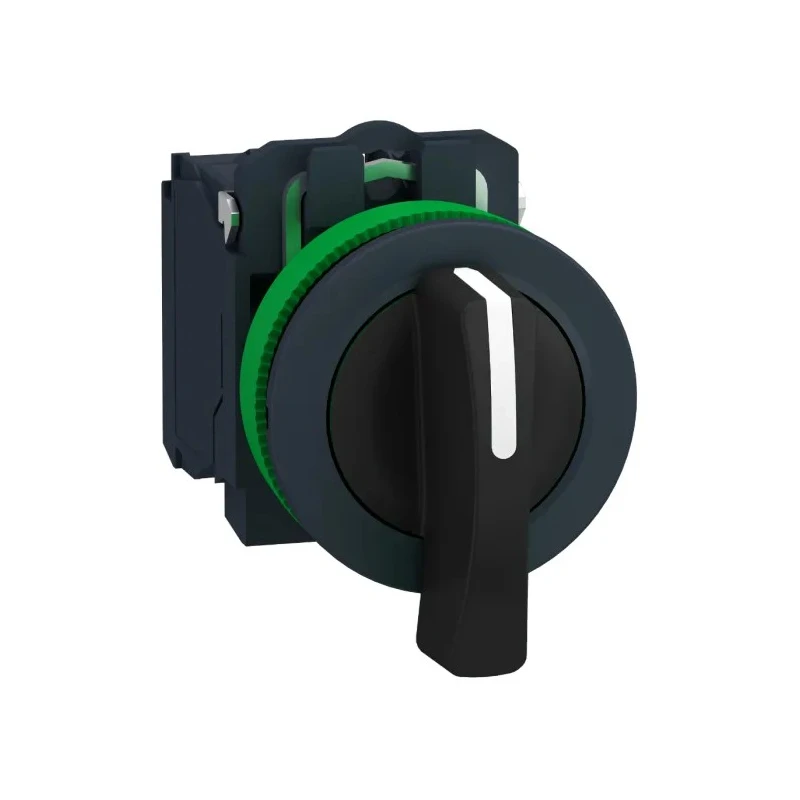

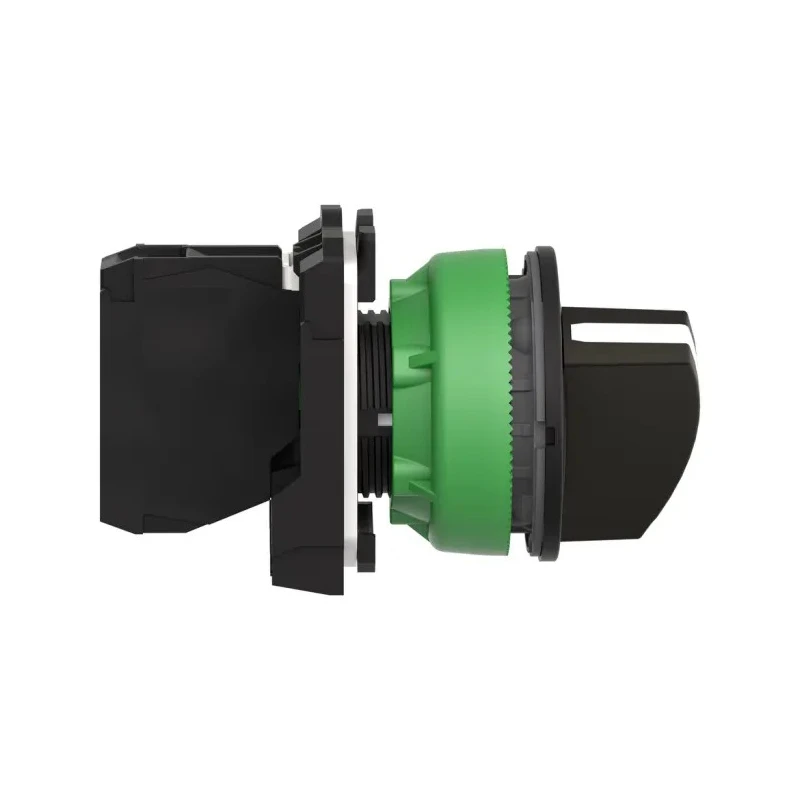

Schneider Electric Selector Switch SPST 2 Positions 30 mm Cutout Diameter IP67 Stay Put XB5FJ21

Schneider Electric XB5FJ21 selector switch is a flush mounted selector switch from the Harmony XB5 plastic range, designed for industrial use with a 2-position SPST contact configuration. It features a mounting cutout diameter of 30 mm and an IP67 protection rating, ensuring robust protection against dust and water ingress for reliable operation in harsh environments.

The selector switch has a black long handle with a round head shape and includes a screw clamp terminal connection. Its 90-degree angle of throw with a stay put mechanism ensures precise and stable switching. The device is compact, with dimensions approximately 42 mm in height and 36.6 mm in width, weighing 43 grams, making it suitable for ergonomic panel designs.

Equipped with high chemical robustness and vibration resistance, it is well suited for industrial, manufacturing, and process control environments. Certifications include EN/IEC standards, CE marking, UL, CSA, NEMA, JIS, and marine approvals, highlighting its compliance with multiple international quality and safety standards.

Various connection options such as screw clamp, connector, Faston connector, spring terminal, and printed circuit board are supported. The modular design allows easy installation with a cross head screwdriver and customization via Schneider Electric's web marking tool.

Its versatile design is ideal for general industry, machine control, food and beverage processing, marine applications, building infrastructure, and other demanding environments. This selector switch features a 90-degree angle of throw with stay put operation.

It includes a black long handle with a round head and screw clamp terminal for reliable connections. The product is designed for robustness with high vibration resistance and chemical environment suitability. Mounting diameter is approximately 30.5 mm with a compact form suitable for flush mounting.

The switch is certified with EN/IEC, CE, UL, CSA, NEMA, JIS, and marine approvals. It is repairable by the end user and offers a customizable marking option on the Schneider Electric website. Operating temperature range is from -40°C to 70°C, suitable for industrial and harsh environments.

The switch supports various connection types including connector, Faston, spring terminal, and PCB mounting. Ideal for general industrial, machine, food and beverage, marine, building, and infrastructure applications. The packaging contains 1 unit of the selector switch.

This selector switch is an excellent choice for those requiring a durable, versatile control component with wide certification acceptance and easy field maintenance. Explore more Selector Switches and electrical components in the Schneider Electric range at EnvMart.
