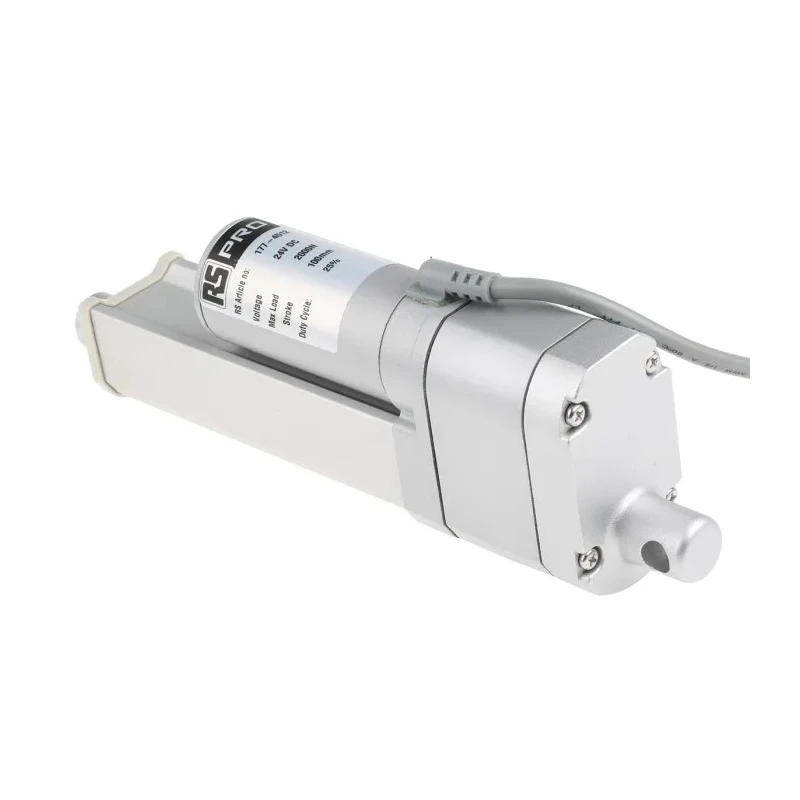

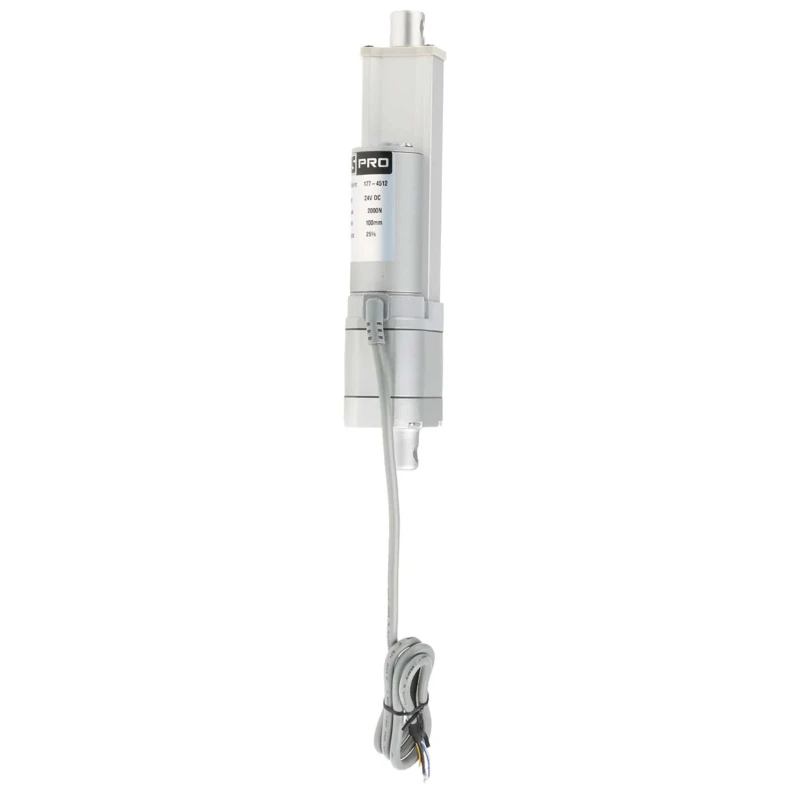

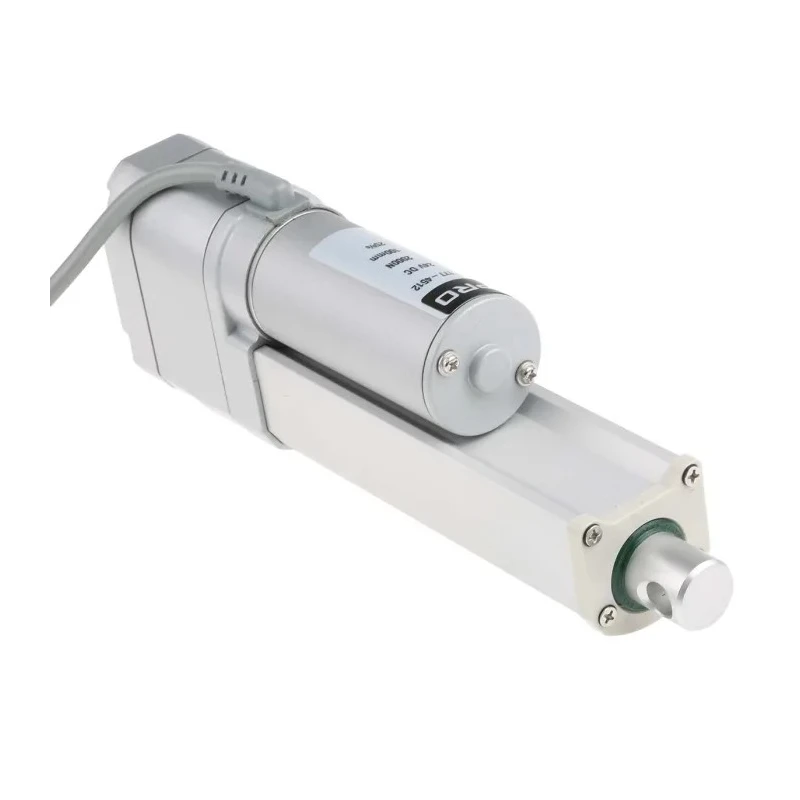

RS PRO Electrical Linear Actuator 100 mm Stroke 2000N Force 24V DC Motor 7.6 mm/s Speed 177-4512

RS PRO 177-4512 Electrical Linear Actuator features a 100 mm stroke length and a maximum force capacity of 2000N, powered by a 24V DC motor that delivers a smooth 7.6 mm/s linear speed. Designed for precise, quiet, and reliable linear motion, this actuator is suitable for various industrial, automotive, and automation applications where confined space and controlled movement are critical.

The actuator's construction with aluminum grey material ensures durability while maintaining a lightweight profile of 1.12 kg. It includes preset limit switches to automatically stop the motor at maximum extension, protecting against motor burnout and extending its service life. Its IP54 rating makes it suitable for environments with dust and water splashes, enhancing operational reliability.

Operating temperature range from -25°C to +65°C expands its usability in diverse conditions. With an overall closed length of 260 mm and double-thread spindle design (pitch=4.23 mm), it guarantees consistent linear thrust along the stroke length. The product meets CE and EN standards, supporting compliance requirements in many regulated industrial environments.

Electric linear actuators like this model convert rotary motion from the DC motor into linear motion, enabling actions such as pushing, pulling, sliding, lifting, tilting, and dropping. They are ideal replacements for hydraulic or pneumatic systems where compact and noiseless operation is preferred.

Applications include machine tools, industrial machinery, office or home automation, solar tracking systems, and adjustable equipment. The RS PRO 177-4512 actuator integrates easily into automation and control systems, delivering a cost-effective and energy-efficient solution for a wide range of industrial and commercial challenges.

This actuator offers a robust maximum load capacity of 2000N for both pushing and pulling applications. The 100 mm stroke length suits space-limited installations requiring linear movement. It operates at a quiet and efficient 7.6 mm/s speed driven by a durable DC motor.

Equipped with preset limit switches to prevent motor stalling or damage upon reaching maximum stroke. The actuator has an IP54 rating for protection against dust and water splashes. Operates efficiently within a temperature range of -25°C to 65°C.

The overall closed length is 260 mm making it compact for integration. Made from aluminum grey materials, the actuator provides lightweight and durability with a weight of 1.12 kg. Ideal for industrial, laboratory, construction, and home automation applications such as window openers and adjustable mechanisms.

CE compliant product, tested against and certified to European standards EN55014-1:2017+A11:2020 and EN55014-2:2015. Explore more products in the Electric Linear Actuator category at EnvMart to find the perfect actuator tailored for your specific industrial or automation needs.
