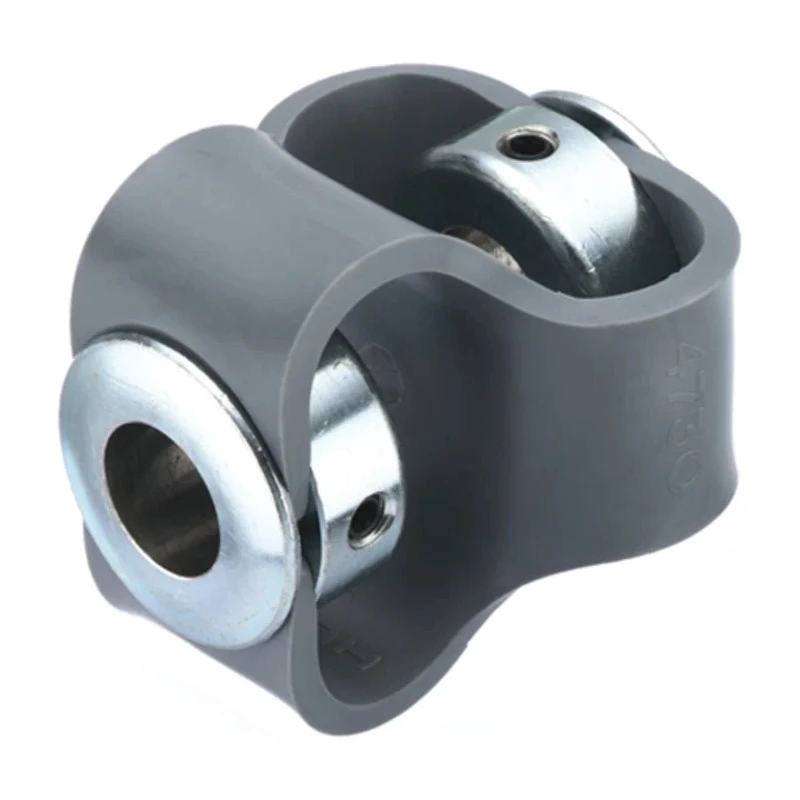

Huco Flexible Coupler, 54 mm Diameter, 56 mm Length, 10 mm Bore A, 12 mm Bore B, Steel, Set Screw Style 047.30.3535.RS

Huco 047.30.3535.RS Flexible Coupler is engineered for mechanical power transmission systems requiring precise alignment correction. Featuring a robust double loop design, this coupler compensates for radial, angular, and axial misalignment to enhance shaft performance and reduce wear.

The hubs are constructed from corrosion-resistant stainless steel, ensuring longevity in demanding industrial environments. The coupler incorporates a Hytrel polyester elastomer flex element, providing excellent strength, heat resistance, and chemical durability suitable for varied operational conditions.

This coupler employs a convenient set screw fitting, facilitating simple and secure installation onto shafts with bore sizes of 10 mm on side A and 12 mm on side B. It is capable of handling speeds up to 3000 rpm and a torque rating of 5 Nm, making it ideal for medium-duty power transmission applications in manufacturing and mechanical systems.

The device tolerates an angular misalignment of up to 15 degrees and axial misalignment of 8.5 mm, permitting flexible shaft connections without compromising performance. It operates reliably across a broad temperature range from -40°C to 100°C, enabling usage in diverse industrial and laboratory environments.

Compliant with RoHS standards, this product ensures adherence to environmental and safety regulations. Made in the United Kingdom, the Huco 047.30.3535.RS Flexible Coupler is a dependable solution for industries including manufacturing, fluid power systems, HVAC, and general mechanical power transmission needs.

Double loop design enables correction of multiple misalignments. Stainless steel hubs prevent corrosion and extend service life. Hytrel elastomer connection offers flexibility and durability. Set screw mounting allows easy, secure attachment.

Maximum operating speed of 3000 rpm supports versatile applications. Torque capability rated at 5 Nm. Angular misalignment capacity up to 15 degrees. Axial misalignment tolerance of 8.5 mm. Operates in temperature conditions from -40°C to 100°C.

RoHS compliant for environmental safety. Browse the comprehensive range of flexible couplers at EnvMart to find the perfect fit for your mechanical power transmission needs.
