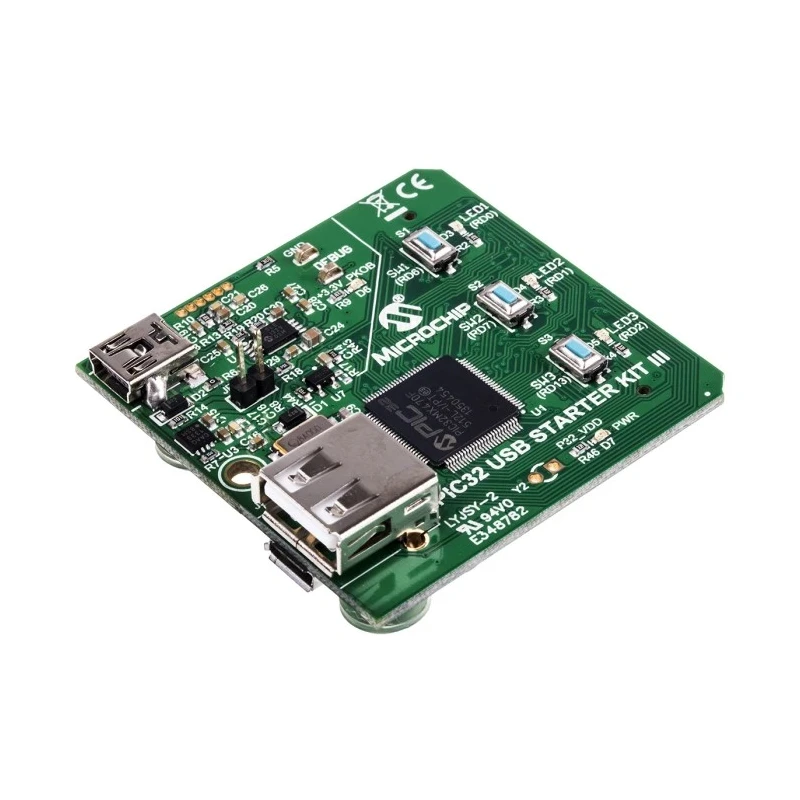

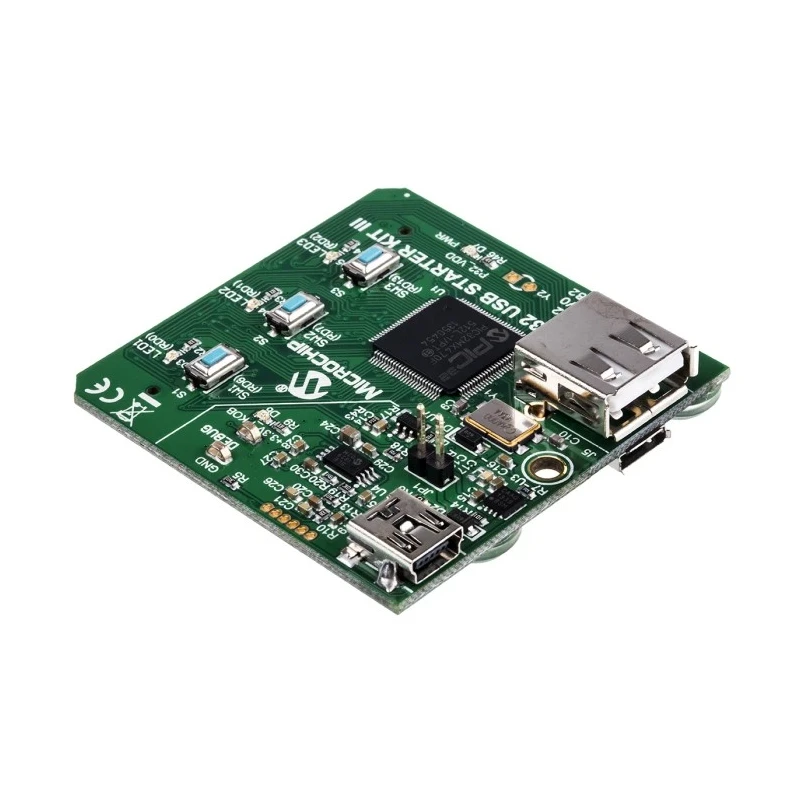

Microchip PIC32 USB MCU Starter Kit DM320003-3 with PIC32MX470F512L 100MHz 512K Flash, 128K RAM, USB On-The-Go

Microchip DM320003-3 PIC32 USB MCU Starter Kit offers an accessible and low-cost platform for developing USB On-The-Go applications using the PIC32 family of microcontrollers. The kit features a PIC32MX470F512L MCU running at 100MHz with 512K Flash memory and 128K RAM, suitable for embedded host, device, dual-role, or On-The-Go application development.

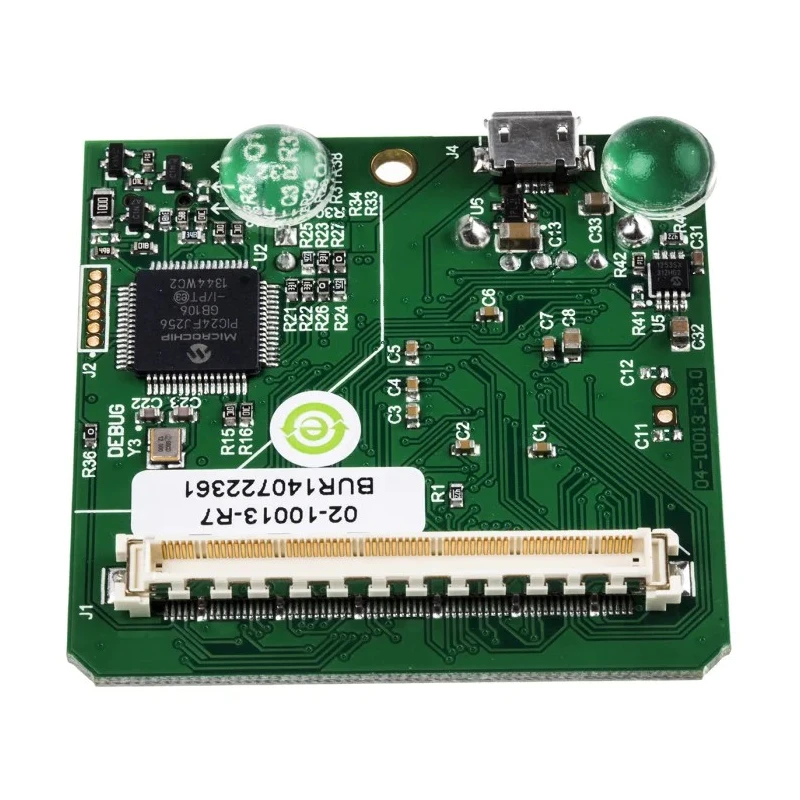

This starter kit includes additional MCUs such as the PIC24FJ256GB106 and PIC32MX440F512H dedicated for USB debugging purposes. It supports multiple USB interfaces including a USB Mini-B connector for on-board debugger communication, USB Type A connector for host applications, and USB Type Micro-AB connector for OTG/device-based applications, providing flexibility for diverse USB development needs.

Featuring 4 DMA channels and 2 USB channels, the kit provides efficient data handling capabilities. User interaction is facilitated through three push buttons and three user-programmable LEDs, including green and orange LEDs indicating power and debug status respectively. Power is regulated at +3.3V, drawn from USB or an expansion board, ensuring stable power for the MCU and connected peripherals.

The kit supports various expansion boards through dedicated connectors, enabling advanced hardware customization. Users can utilize Microchip's free USB software to accelerate application development. The kit arrives with USB-A to Mini-B and USB-A to Micro-B cables, facilitating immediate connectivity.

This product is RoHS compliant and tailored for applications in industrial, educational, and embedded system development environments. The kit requires two available USB ports on a PC or a powered USB hub for operation.

Equipped with PIC32MX470F512L microcontroller running at 100MHz with 512K flash and 128K RAM. Includes PIC24FJ256GB106 and PIC32MX440F512H microcontrollers for debugging via USB. Multiple USB connectors support host, device, and OTG applications.

Four DMA channels and dual USB channels for efficient data management. Three user push buttons and three LEDs for user interaction and status indication. Regulated +3.3V power supply from USB or expansion board. Supports various expansion boards via a dedicated connector.

Supplied with USB-A to Mini-B and USB-A to Micro-B cables. Web-based software installation instructions; no software included in the box. Explore a variety of Development Kits and microcontroller products at EnvMart to enhance your embedded system projects.
