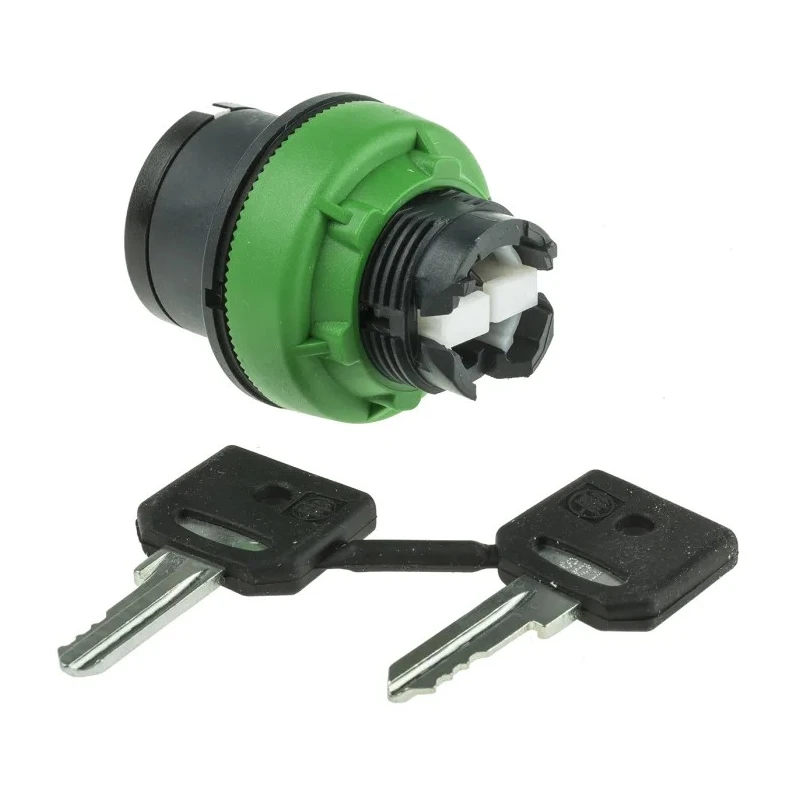

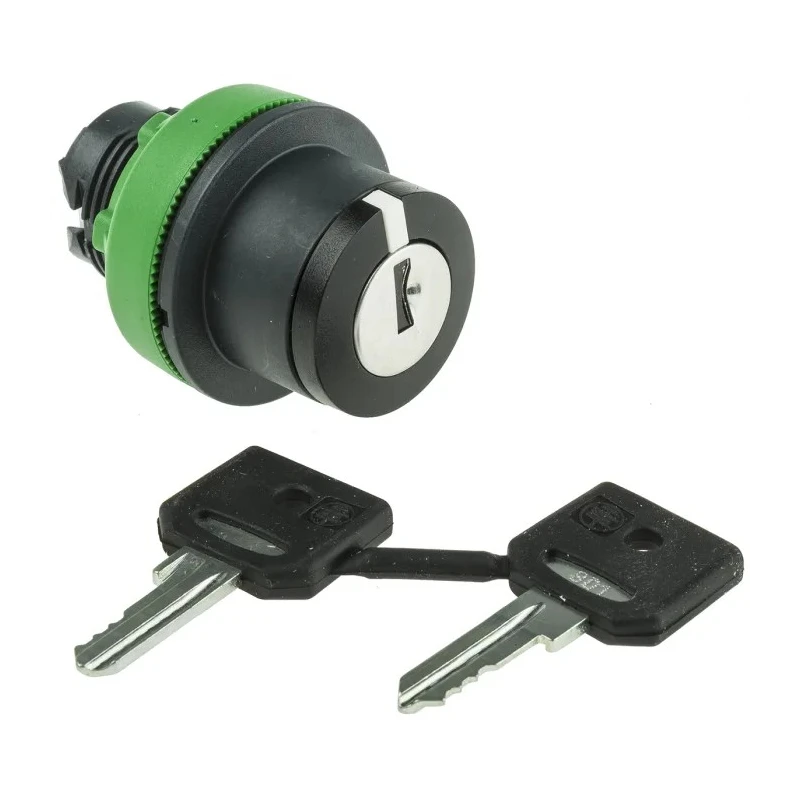

Schneider Electric Harmony XB5 3-position Key Switch Head, Spring Return, 30 mm Cutout ZB5FG08D

Schneider Electric ZB5FG08D is a 3-position key switch head from the Harmony XB5 series designed for flush mounting and industrial use. This device features a plastic bezel material and a round signaling unit head. It operates with a spring return mechanism right to centre, offering precise control with a cutout diameter of 30 mm. The black key switch uses key type 8D1, supplied with one key, making it secure and user-friendly.

The switch provides three positions with an angle of throw of 45 degrees, suitable for a variety of industrial control applications. Its robust construction and IP ratings of IP66, IP67, and IP69K confer excellent durability and protection against dust, water ingress, and other harsh environmental factors.

Designed to support a mechanical life of one million cycles, this key switch head meets rigorous industry standards including DNV, CSA, BV, UL 508, IEC 60947 series, and JIS C8201, making it ideal for use in machine manufacturing, chemical processing, paper mills, marine sectors, energy distribution panels, food and beverage industries, and car wash equipment.

The key withdrawal position is on the left, ensuring operational security. This product enhances control panel functionality and operator safety in demanding industrial and commercial environments.

Flush mounted selector switch head with plastic bezel material for durability. Mounting diameter of 30 mm to fit standard panels. Three positions with +/- 45° angle of throw and spring return right to centre. Black key switch with key type 8D1 and one key supplied.

High mechanical life rated for 1,000,000 cycles. IP69K, IP66, and IP67 ingress protection ratings ensure suitability for harsh environments. Complies with multiple standards including DNV, CSA, BV, UL, IEC, and JIS for industrial applications.

Suitable for machine manufacturing, chemical industry, paper mills, marine applications, energy distribution panels, food and beverage, and car wash sectors. Key withdrawal position is on the left to enhance security and usability.
