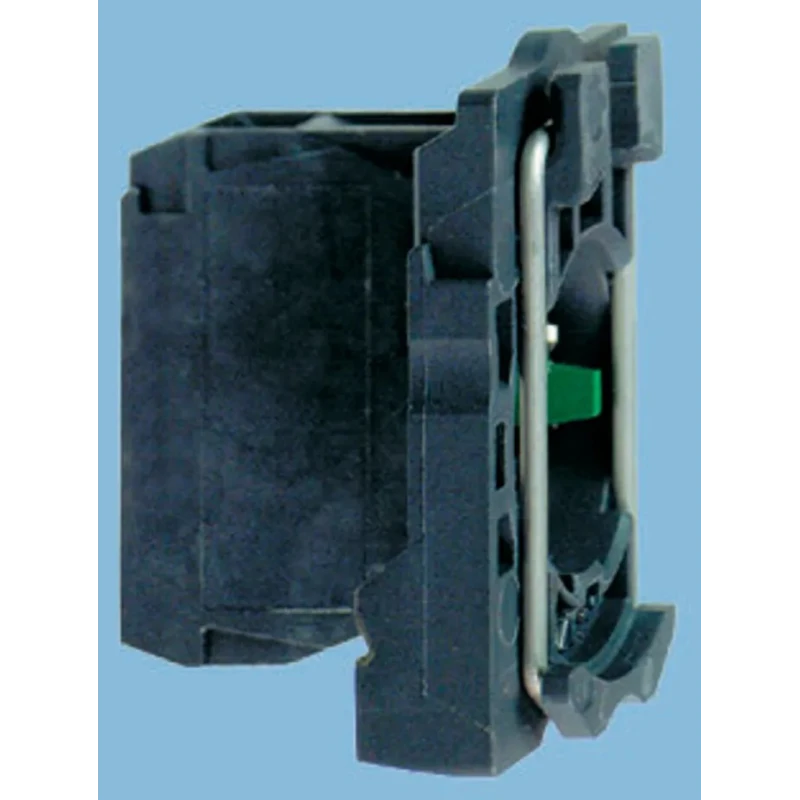

Schneider Electric Harmony XB5 Series Contact Block 2 NC Screw Clamp Terminals ZB5AZ1045

Schneider Electric ZB5AZ1045 is a high-quality contact block from the Harmony XB5 series, featuring a 2 Normally Closed (NC) contact configuration with screw clamp terminals. This compact contact block is designed with a body and fixing collar, providing secure fixation and reliable electrical connection suitable for industrial, automation, and electrical control applications.

The contact block supports a wide range of wire sizes, including solid and stranded wires, with or without cable ends, accommodating minimum 1x24AWG/0.2mm² and maximum 2x14AWG/1.5mm² configurations. The internals operate a single lever action that simultaneously opens both cable clamps, reducing installation time and enhancing connection reliability.

Rated for a current of 10A, this contact block performs reliably in ambient temperatures from -40°C to 70°C, meeting rigorous international standards such as UL 508, JIS C8201, EN/IEC 60947 series, and CSA C22.2 No 14, ensuring safety and compliance in demanding industrial environments.

The product dimensions are compact with a length of 32mm, height of 42mm, and width of 3mm, enabling versatile installation in various control panels and push button assemblies. Its robust design includes visual indicators for secure connection, preventing accidental clamping on insulation, and molded-in holes suitable for test probes, facilitating easy maintenance and troubleshooting.

This contact block is ideal for use in industrial automation, electrical panels, manufacturing control systems, and building automation, providing dependable electrical switching performance. It is a vital component in push button switch assemblies used extensively across multiple sectors for controlling motors, machinery, and process equipment.

Features a 2 Normally Closed (NC) contact configuration for control circuits. Equipped with screw clamp terminals compatible with various wire sizes. Includes body and fixing collar for secure mounting. Rated at 10A current for consistent performance.

Operates reliably from -40°C to 70°C temperature range. Compact dimensions: 32mm length, 42mm height, and 3mm width. Complies with international standards including UL 508, JIS, EN/IEC, and CSA certifications. Accepts stranded and solid wires with or without cable ends.

Designed with a single lever action that opens both cable clamps. Visible indication ensures secure electrical connections. Explore a wide range of Schneider Electric products and auxiliary contact blocks at EnvMart for your industrial automation needs.
