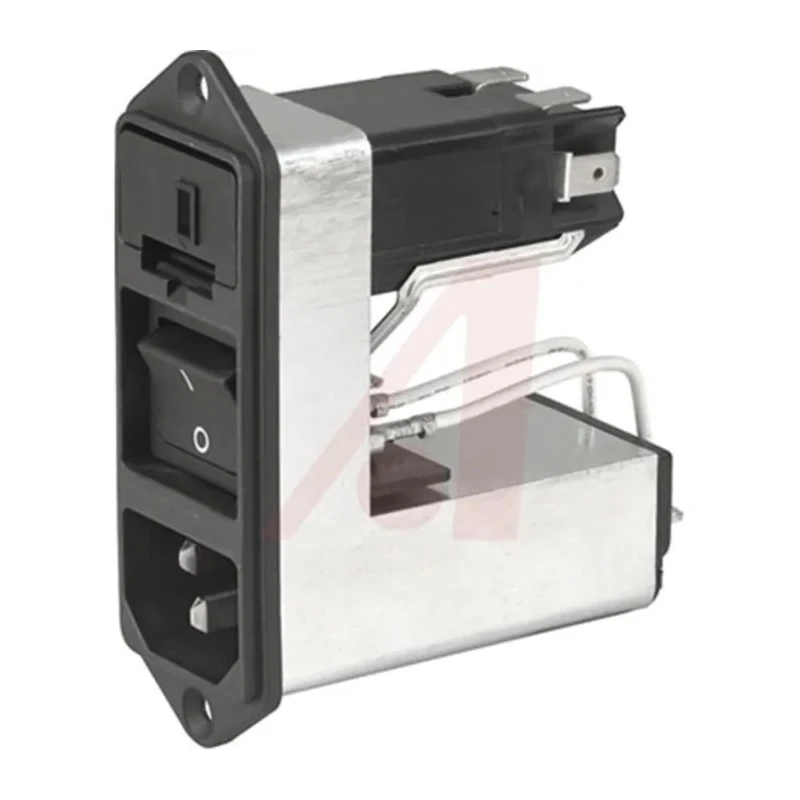

Schurter High Performance 10A 125V AC 250V AC Screw Mount IEC C14 Connector Male 2 Pole with 2 Fuse Quick CD64.1101.151

Schurter CD64.1101.151 is a high performance IEC C14 male connector designed for mains power connection with robust filter, switch, and fuse capabilities. It supports 10A current at both 125V AC and 250V AC voltage levels, making it well suited for industrial, electrical equipment, and laboratory applications requiring reliable power input safety.

This connector features a screw mount design and quick connect terminals (4.8 x 0.8 mm) for straightforward panel installation and fast wiring. The build includes two fuse holders supporting standard 6.3 x 32 mm fuses to provide dual circuit protection, although the fuse drawers must be ordered separately. The device operates efficiently across frequencies of 50 and 60 Hz and withstands a temperature range from -25°C to 85°C, ensuring durability in demanding environments.

Its integrated line filter improves electromagnetic compatibility by reducing noise, making it ideal for industrial automation, power distribution units, and HVAC electrical connections. The compact form factor with dimensions of approximately 83.5 mm height, 69 mm depth, and 30 mm width allows for optimized use of panel space. The male contact gender and 2-pole switch type further define its applicability in secure electrical connections.

Schurter’s CD series IEC connectors are renowned for quality and compliance with international standards, providing standard or medical-grade options. This model is panel mountable with front screw fixings, ensuring a secure and stable fit in electrical enclosures.

Note that this product requires separate purchase of the fuse drawer compatible with Ø5x20mm fuses. The product is compliant with RoHS standards and does not carry any additional certifications or approvals.

Rated current of 10 amperes for safe operation under moderate loads. Supports dual fuse holders enhancing electrical safety with 6.3 x 32 mm fuses. Voltage rating of 125V and 250V AC making it versatile for multiple power systems.

Mount type is screw for secure and stable panel integration. Quick connect termination facilitates easy installation and maintenance. Wide operating temperature range from -25°C to 85°C suitable for harsh conditions. Integral line filter reduces electromagnetic interference in power connections.

Compact dimensions allow for efficient space utilization in panels and enclosures. Part of the Schurter CD series known for robust power entry modules. Explore the Schurter range of IEC Connectors and filters on EnvMart for high-quality industrial and electronic power components.
