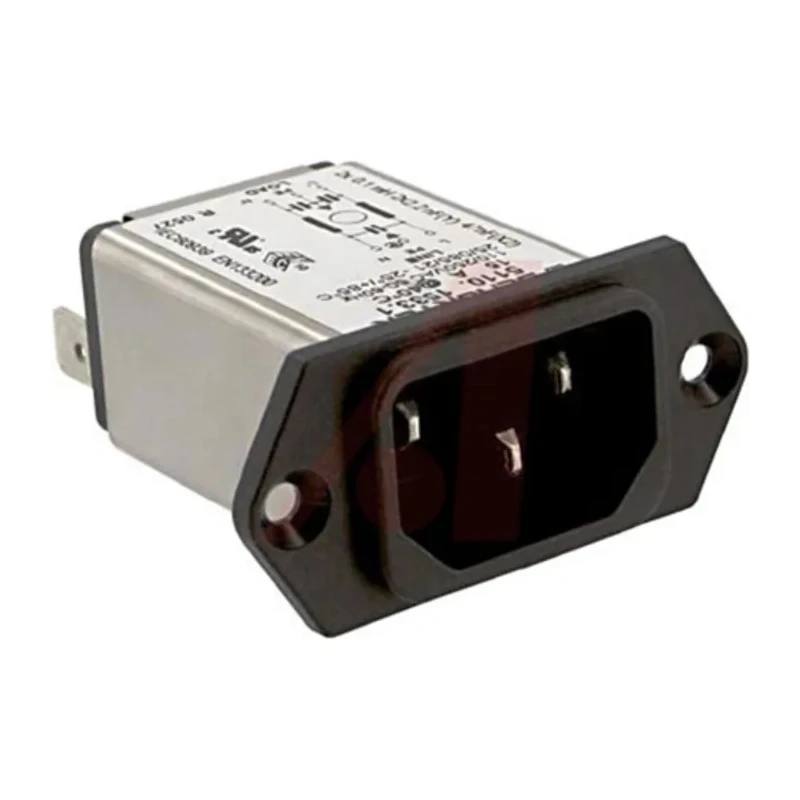

Schurter 125V ac 15A Screw IEC Connector Male Quick Connect 5110.1533.1

Name: Schurter 125V ac 15A Screw IEC Connector Male Quick Connect 5110.1533.1
Brand: Schurter
SKU: 418258
Price: 20.22 USD
Availability: InStock



Category IEC Connector Brand Schurter Condition New

Specifications

Country of Origin	India
Voltage	125V ac
Brand	Schurter
Current	15A
Height	23mm
Filter Type	Line
Depth	55.6mm
Width	48.4mm
Mount Type	Screw
Operating Frequency	60Hz
Termination Type	Quick Connect
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Contact Gender	Male
Connector Gender	Male
IEC Connector Type	C14

Key Features

This IEC connector features a screw mounting for secure installation.
Male connector gender with quick connect termination type for efficient wiring.
Operates reliably within a temperature range of -25°C to 85°C.
Compact dimensions of 48.4mm width, 55.6mm depth, and 23mm height fit various electrical devices.
Supports 60Hz operating frequency suitable for standard power systems.
No standards or approvals are specified for this model.
Designed as part of the 5110 Series panel mount C14 IEC filter inlets with high performance filtering.

Product Description

Schurter 5110.1533.1 Screw IEC Connector Male Quick Connect is a high-quality IEC C14 connector designed for AC mains power applications at 125V and 15A current rating. It utilizes a screw mount type ensuring a stable panel installation and features quick connect terminals sized at 6.3 x 0.8 mm for efficient wiring and reliable electrical contact.

This connector is engineered to operate in a broad temperature range from -25°C to 85°C, making it suitable for industrial, commercial, and laboratory electrical systems where durability and safety are paramount.

The compact dimensions (48.4mm width, 55.6mm depth, and 23mm height) allow integration into a variety of equipment requiring IEC filter inlets. It supports an operating frequency of 60Hz, aligning with common mains power standards worldwide.

The Schurter 5110 series is known for its completely closed filter case that offers superior filtering performance, helping to reduce electromagnetic interference in sensitive electronic equipment. Although no specific certifications or approvals are noted, it is a trusted choice for panel mount IEC inlet plugs with integral mains filter in ultra-compact designs.

Note that the fuse drawer is not included with this connector and must be sourced separately to accommodate Ø5x20mm fuse sizes as required. This IEC connector uses quick connect terminals for ease of installation and maintenance.

The screw mounting type ensures secure panel attachment preventing looseness in high-vibration environments. The design supports line filter integration for improved electrical noise suppression. Male contact gender suits various panel mount scenarios where connectivity to female IEC sockets is needed.

Robust construction with high maximum operating temperature rating ensures reliability. The connector's compact form factor benefits industries such as manufacturing, HVAC systems, laboratory and industrial testing environments.
