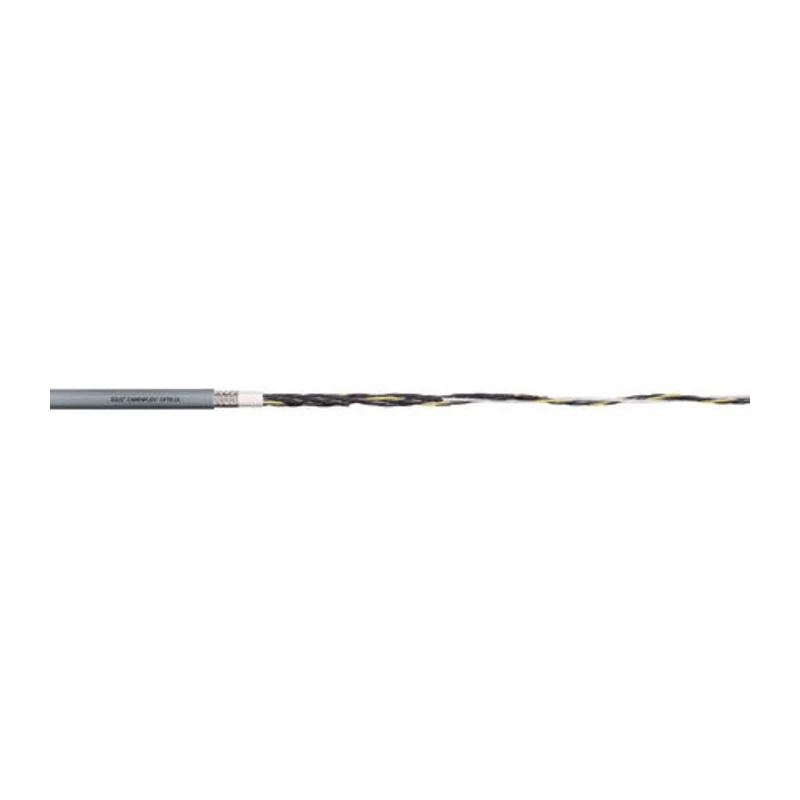

Igus Chainflex PUR Screened Armoured Control Cable, 3 Cores 0.75mm² 18 AWG, 25m Length, Grey TPE Sheath CF78.UL.07.03
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 300, 500V |
| Brand | Igus |
| Model | CF78.UL.07.03 |
| Cable Length | 25m |
| Series | chainflex CF78.UL |
| Outside diameter | 8mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 3 |
| Conductor Material | Bare Copper |
| Minimum Operating Temperature | -35°C |
| Jacket Material | Thermoplastic Elastomer |
| Standards/Approvals | CE, EN |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant, Halogen Free |
| American Wire Gauge | 18AWG |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Cable CSA | 0.75mm² |
| Core insulation | mechanically high-quality TPE mixture |
Key Features
- The cable features stranded bare copper conductor material ensuring excellent electrical conductivity.
- Its outer jacket is made of durable thermoplastic elastomer, resistant to oil and coolants.
- The cable is flame retardant and halogen-free, compliant with IEC 332-1 and CEI 20-35 standards.
- Suitable for freely suspended and gliding travel distances up to 100 meters.
- Operates reliably between -35°C and 80°C temperature range for industrial environments.
- The cable is screened for EMI protection and armoured for added mechanical protection.
- Designed according to CE and EN standards, making it suitable for demanding automation and control installations.
- Its mechanically high-quality TPE core insulation offers notch resistance and PVC-free construction.
Product Description
Igus CF78.UL.07.03 is a premium-quality PUR Control Cable designed for industrial automation, electrical power, and control applications. This cable features 3 cores with a conductor cross-sectional area of 0.75mm² (18 AWG), constructed with stranded bare copper for enhanced flexibility and conductivity.
The cable is equipped with a grey thermoplastic elastomer sheath that offers excellent resistance to oils, coolants, and mechanical stress. It is screened to minimize electromagnetic interference and armoured to protect against mechanical damage, making it well-suited for rigorous industrial environments.
Designed for use in demanding applications such as automated machinery and production lines, the cable withstands operating temperatures from -35°C to 80°C. Its flame retardant and halogen-free construction complies with IEC 332-1, CEI 20-35, and FT1 fire behavior standards, ensuring safety in hazardous environments.
The core insulation is created from a mechanically robust TPE mixture that delivers notable notch resistance, allowing for long service life especially in dynamic applications involving freely suspended and gliding travel distances up to 100 meters.
This control cable is ideal for transmitting signals and control commands within industrial automation, robotics, HVAC, power plants, and manufacturing settings. Its CE and EN certifications verify compliance with international safety and performance standards.
The cable features stranded bare copper conductors for high electrical conductivity. The sheath material is thermoplastic elastomer, making it oil- and coolant-resistant. The cable is screened and armoured to protect against EMI and mechanical impacts respectively.
Flame retardant and halogen-free design enhances safety compliance. Operates over a temperature range of -35°C to 80°C for versatile industrial use. Supports cable lengths of 25 meters and a diameter of 8 mm. Suitable for freely suspended and gliding travel distances up to 100 meters.
Voltage ratings of 300V and 500V accommodate a variety of control applications. Complies with CE and EN standards and certifications.
Set your industrial automation systems for reliable performance with the robust and flexible Igus CF78.UL.07.03 Control Cable. For more products in the category, explore Electronics & Electricals section at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable features stranded bare copper conductors, which ensure excellent electrical conductivity.
It operates reliably at a maximum temperature of 80°C.
This control cable has voltage ratings of 300V and 500V, making it suitable for various control applications.
The cable is 25 meters long with an outside diameter of 8 mm.
The outer jacket is made of thermoplastic elastomer, which is resistant to oils and coolants.
It complies with CE and EN standards, ensuring safety and performance in industrial applications.
The cable can operate at a minimum temperature of -35°C.
The cable is screened to minimize electromagnetic interference, enhancing its performance in industrial environments.
It is designed for use in industrial automation, robotics, HVAC, power plants, and manufacturing settings.
The cable is flame retardant and halogen-free, complying with IEC 332-1 and CEI 20-35 standards for safety in hazardous environments.
The core insulation is made from a mechanically high-quality TPE mixture, providing notable notch resistance.
Yes, it is suitable for freely suspended and gliding travel distances up to 100 meters.
