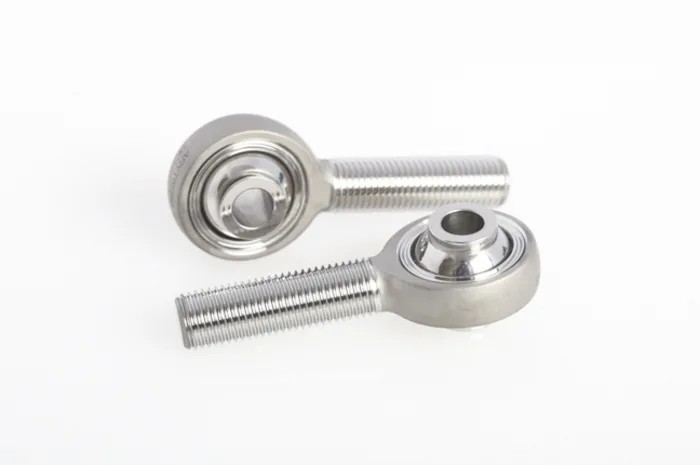

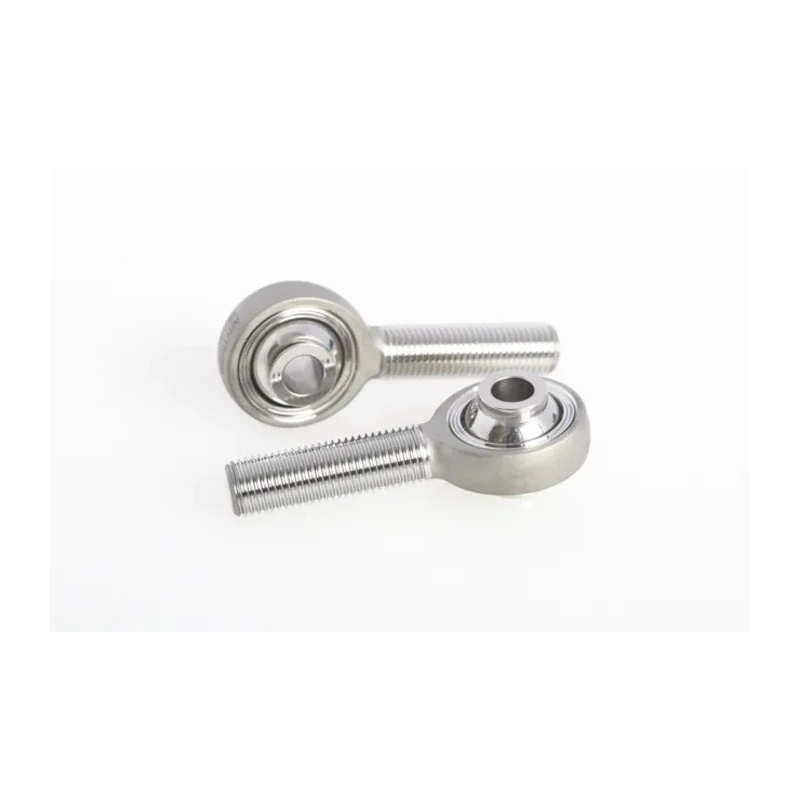

NMB 5/8-18 Male Stainless Steel Rod End UNF Thread Standard 12.7mm Bore ARYTL8E(R)

NMB ARYTL8E(R) Stainless Steel Rod End is engineered for high-performance rotary bearing applications requiring reliable connection and durability. This rod end features a 5/8-18 male UNF thread standard and a 12.7mm bore diameter, making it suitable for precise mechanical and fluid power assemblies.

Fabricated from corrosion-resistant stainless steel, the rod end offers excellent wear resistance and longevity under demanding operational conditions. The component supports static load ratings up to 77.53 kN, providing the strength and robustness needed for heavy-duty industrial use.

Its temperature operating range from -54°C to 121°C allows it to perform efficiently across harsh environments including industrial machinery, construction equipment, and HVAC systems.

Dimensionally, it features an outside diameter of 38.1mm and an overall width of 23.8mm, tailored for applications where space and fit are critical. Constructed from durable stainless steel for corrosion resistance. Features a 5/8-18 male connection thread size for secure fitting.

Holds a bore diameter of 12.7mm suited for various mechanical assemblies. Capable of withstanding static loads up to 77.53 kN ensuring operational strength. Operates reliably in temperatures ranging between -54°C and 121°C.

Designed as a male rod end with an outside diameter of 38.1mm for precision applications. Overall width measures 23.8mm allowing compatibility with compact assemblies. Thread standard conforms to UNF ensuring industry standard thread fitting.

Ideal for industrial, mechanical, and fluid power applications requiring rotary bearing components.

This stainless steel Rod End is commonly employed across sectors including industrial manufacturing, mechanical machinery maintenance, hydraulic and pneumatic systems, and other fluid power tools. Its robust build and precision thread standard make it an excellent choice for maintenance, repair, and operational enhancements.

Explore the extensive range of rotary bearings and related bearing units at EnvMart for complementary products and technical solutions tailored to your industrial requirements.
