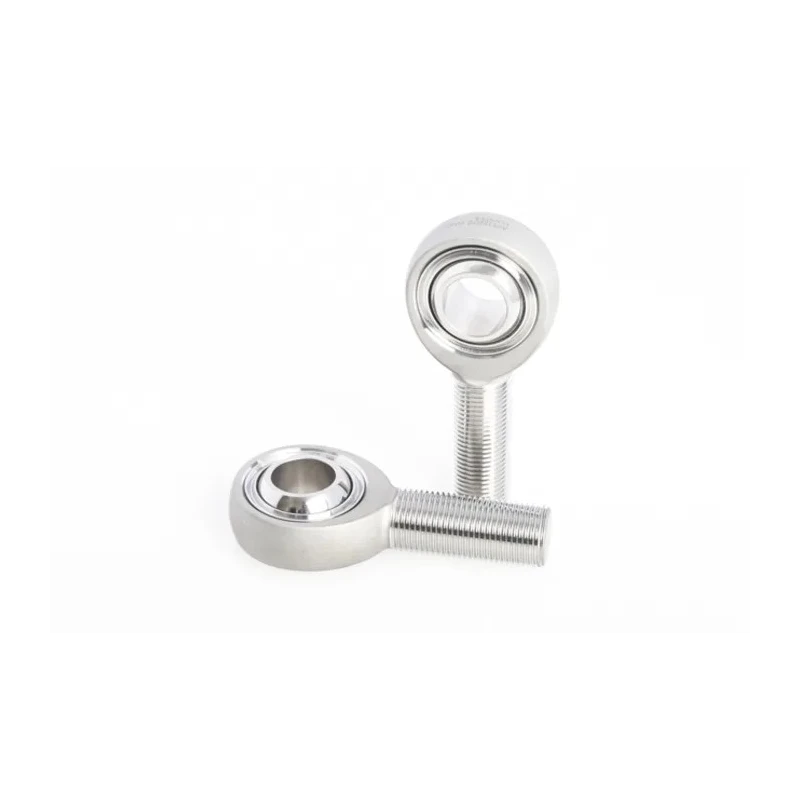

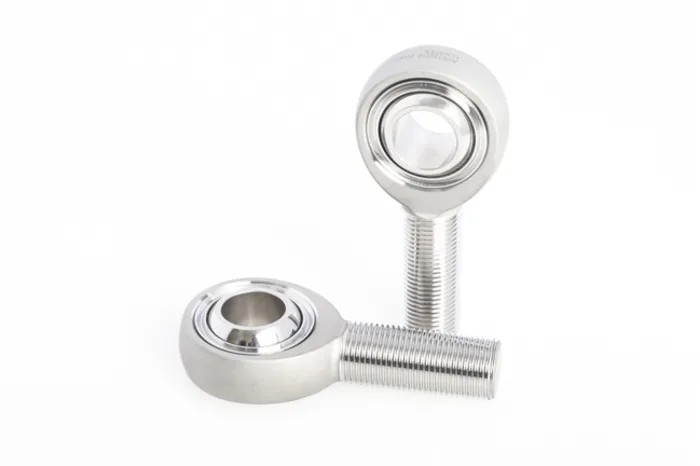

NMB 0.3125-24 Male Stainless Steel Rod End Bearing 7.93mm Bore Static Load 4.89kN Left Hand Thread ARTL5E(R)

NMB ARTL5E(R) Male Stainless Steel Rod End Bearing features a 7.93mm bore diameter and a static load rating of 4.89kN. It is designed with a 0.3125-24 male connection size and left hand thread direction for specialized mechanical and fluid power applications. The rod end bearing is constructed for demanding environments with a minimum operating temperature of -54°C and a maximum operating temperature of 121°C, allowing it to function reliably under extreme conditions.

This rod end bearing consists of a self-lubricating 3-piece design, providing long service life, high reliability, and minimal maintenance requirements. The bearing is made from CRES 440C stainless steel, while the outer cage is fabricated from stainless steel CRES 410 with advanced heat treatment and coated with Teflon for enhanced wear resistance.

The rod body is manufactured using 4340 steel, which undergoes heat treatment and surface coating to improve strength and durability. These rod end bearings are commonly used on the ends of cylinders, linkages, shafts, and rods where an articulating joint is necessary to accommodate angular misalignments between connected components.

This product finds applications across a broad range of industries including industrial machinery, fluid power systems, construction equipment, and manufacturing setups where dependable rotary bearing components are critical.

Made from stainless steel materials ensuring durability and corrosion resistance. Features a 0.3125-24 male connection size for secure attachment. Left hand thread direction suitable for specialized mechanical applications.

Operating temperature range from -54°C to 121°C for versatile usage. Overall width of 8.39mm and outside diameter of 22.46mm for compact fitting. Self-lubricating 3-piece design for low maintenance and long service life.

Ideal for articulating joints in cylinders, linkages, shafts, and rods requiring angular misalignment compensation. Constructed with CRES 440C stainless steel bearing and CRES 410 outer cage with heat treatment and Teflon coating.

Rod body made of 4340 steel with heat treatment and surface coating for enhanced strength. Browse EnvMart's Rotary Bearings & Housing Units category for more high-quality rod end bearings and related components.
